NXP Semiconductors. KMA210. Programmable angle sensor. Fig 3. Characteristic of the analog output. 7. Diagnostic. features

NXP Semiconductors KMA210 Programmable angle sensor Fig 3 Characteristic of the analog output 7 Diagnostic features

Modelllinie für dieses Datenblatt

Textversion des Dokuments

NXP Semiconductors KMA210 Programmable angle sensor
VO (%VDD) αrng V(CL)u V(CL)I 0 α α ref αmax (deg) 180 αsw(CL) αref + 180° 001aag811 max = ref + rng

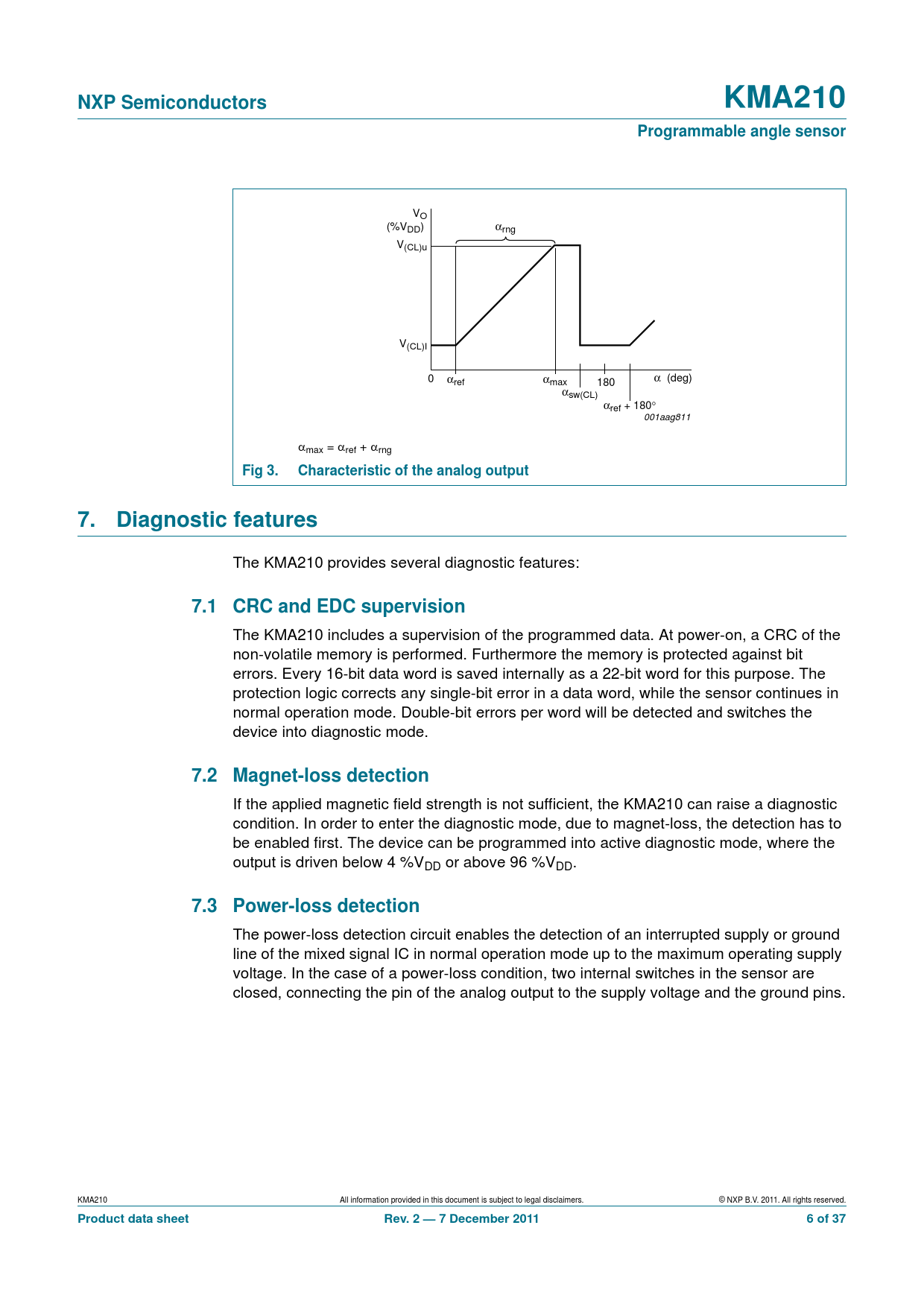

Fig 3. Characteristic of the analog output 7. Diagnostic features
The KMA210 provides several diagnostic features:
7.1 CRC and EDC supervision
The KMA210 includes a supervision of the programmed data. At power-on, a CRC of the non-volatile memory is performed. Furthermore the memory is protected against bit errors. Every 16-bit data word is saved internally as a 22-bit word for this purpose. The protection logic corrects any single-bit error in a data word, while the sensor continues in normal operation mode. Double-bit errors per word will be detected and switches the device into diagnostic mode.
7.2 Magnet-loss detection
If the applied magnetic field strength is not sufficient, the KMA210 can raise a diagnostic condition. In order to enter the diagnostic mode, due to magnet-loss, the detection has to be enabled first. The device can be programmed into active diagnostic mode, where the output is driven below 4 %VDD or above 96 %VDD.
7.3 Power-loss detection
The power-loss detection circuit enables the detection of an interrupted supply or ground line of the mixed signal IC in normal operation mode up to the maximum operating supply voltage. In the case of a power-loss condition, two internal switches in the sensor are closed, connecting the pin of the analog output to the supply voltage and the ground pins. KMA210 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 2 — 7 December 2011 6 of 37
