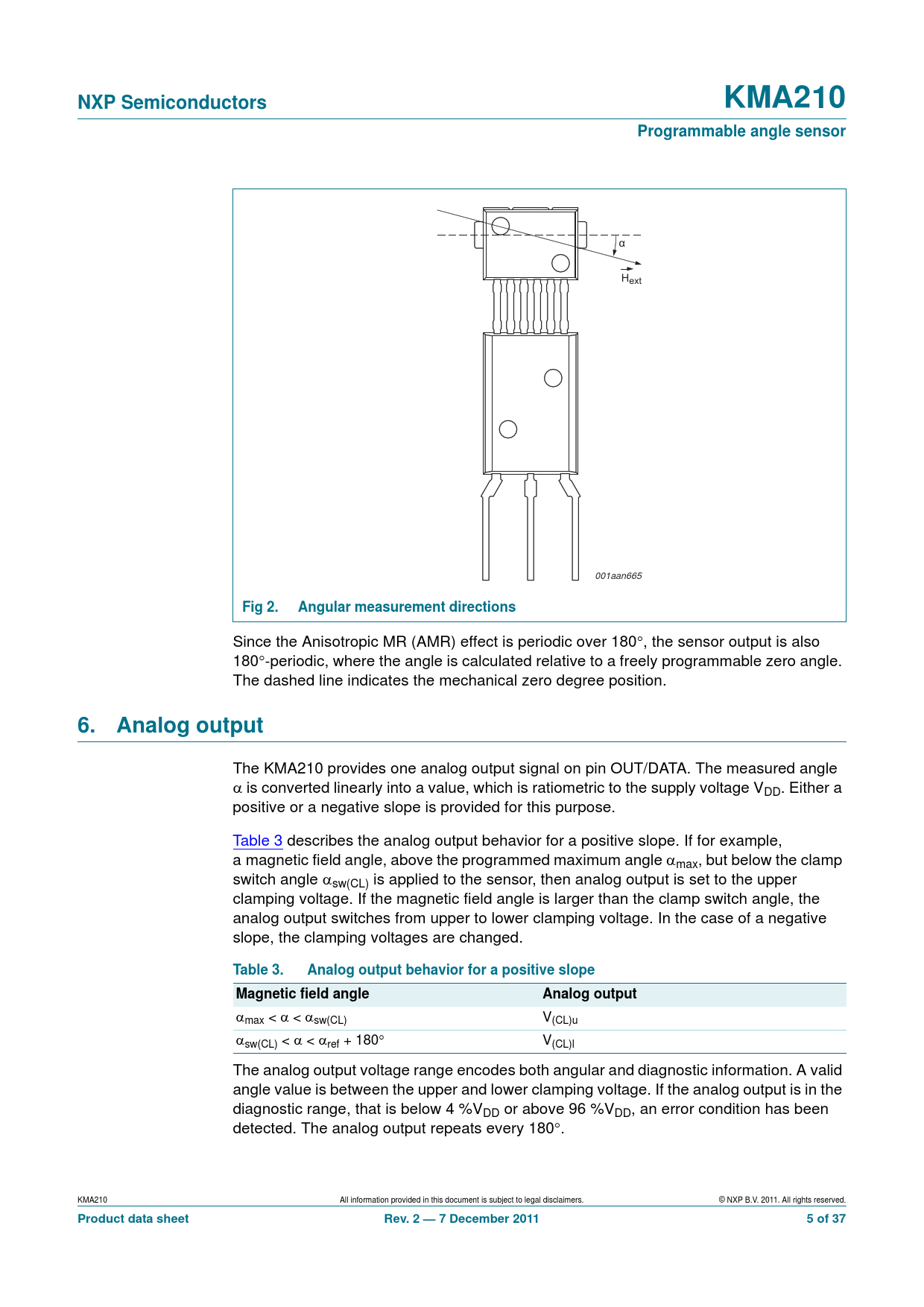

NXP Semiconductors KMA210 Programmable angle sensor
α Hext 001aan665
Fig 2. Angular measurement directions
Since the Anisotropic MR (AMR) effect is periodic over 180, the sensor output is also 180-periodic, where the angle is calculated relative to a freely programmable zero angle. The dashed line indicates the mechanical zero degree position.
6. Analog output
The KMA210 provides one analog output signal on pin OUT/DATA. The measured angle  is converted linearly into a value, which is ratiometric to the supply voltage VDD. Either a positive or a negative slope is provided for this purpose. Table 3 describes the analog output behavior for a positive slope. If for example, a magnetic field angle, above the programmed maximum angle max, but below the clamp switch angle sw(CL) is applied to the sensor, then analog output is set to the upper clamping voltage. If the magnetic field angle is larger than the clamp switch angle, the analog output switches from upper to lower clamping voltage. In the case of a negative slope, the clamping voltages are changed.
Table 3. Analog output behavior for a positive slope Magnetic field angle Analog output
max <  < sw(CL) V(CL)u sw(CL) <  < ref + 180 V(CL)l The analog output voltage range encodes both angular and diagnostic information. A valid angle value is between the upper and lower clamping voltage. If the analog output is in the diagnostic range, that is below 4 %VDD or above 96 %VDD, an error condition has been detected. The analog output repeats every 180. KMA210 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 2 — 7 December 2011 5 of 37
