LR8

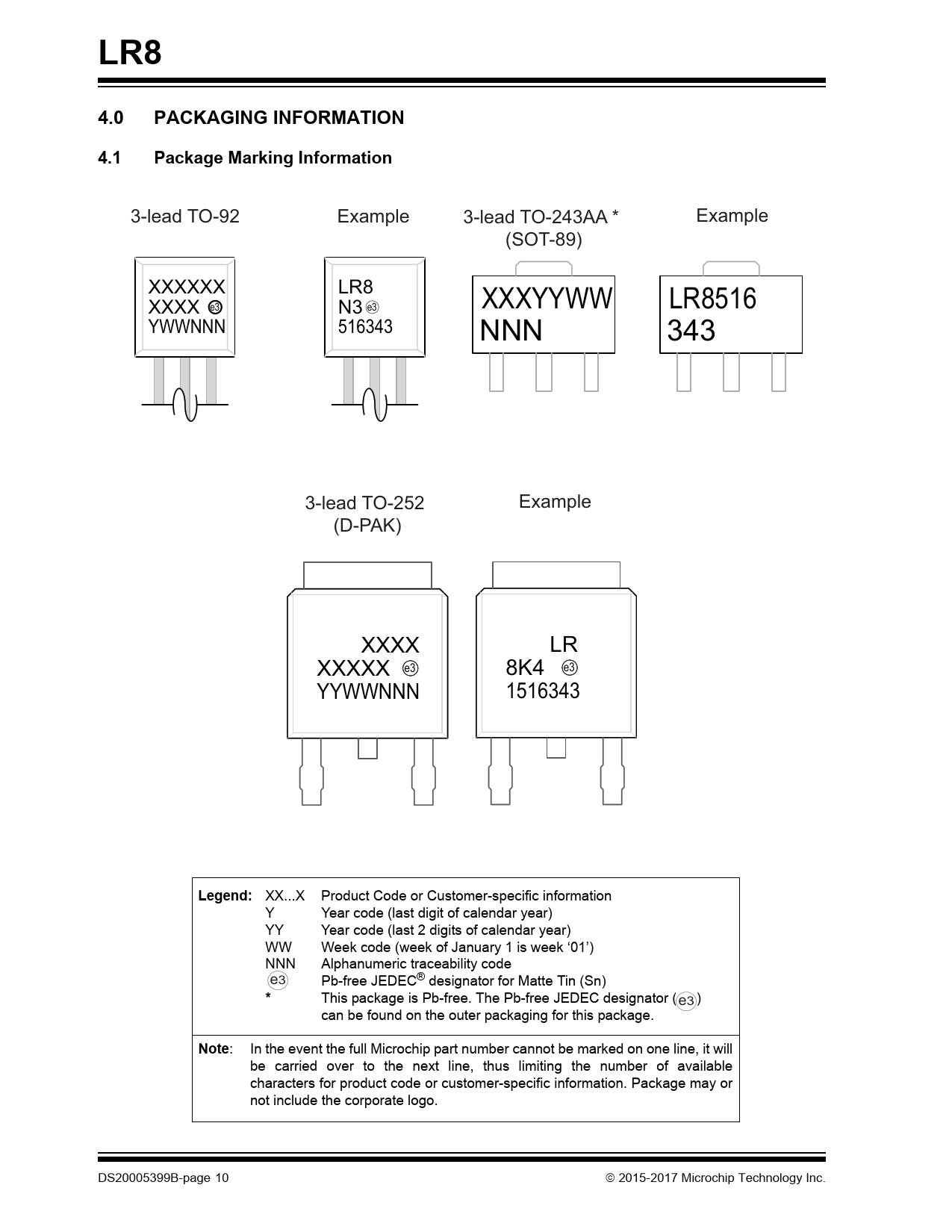

4.0 PACKAGING INFORMATION 4.1 Package Marking Information 3-lead TO-92 Example XXXXXX
XXXX e3
YWWNNN LR8
N3 e3
516343 3-lead TO-252
(D-PAK) XXXX
XXXXX e3
YYWWNNN Legend: XX.X
Y
YY
WW
NNN e3 *
Note: DS20005399B-page 10 3-lead TO-243AA *
(SOT-89) XXXYYWW
NNN Example LR8516
343 Example LR 8K4 e3
1516343 Product Code or Customer-specific information
Year code (last digit of calendar year)
Year code (last 2 digits of calendar year)
Week code (week of January 1 is week ‘01’)
Alphanumeric traceability code
Pb-free JEDEC® designator for Matte Tin (Sn)
This package is Pb-free. The Pb-free JEDEC designator ( e3 )
can be found on the outer packaging for this package. In the event the full Microchip part number cannot be marked on one line, it will
be carried over to the next line, thus limiting the number of available
characters for product code or customer-specific information. Package may or
not include the corporate logo.  2015-2017 Microchip Technology Inc.
