Datasheet LR8 (Microchip) - 3
| Hersteller | Microchip |
| Beschreibung | High-Input Voltage, Adjustable, 3-Terminal, Linear Regulator |
| Seiten / Seite | 18 / 3 — LR8. 1.0 ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS†. VIN Input … |
| Dateiformat / Größe | PDF / 824 Kb |
| Dokumentensprache | Englisch |
LR8. 1.0 ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS†. VIN Input voltage (voltages ref to ADJ). -0.5 to +480V
Modelllinie für dieses Datenblatt
Textversion des Dokuments

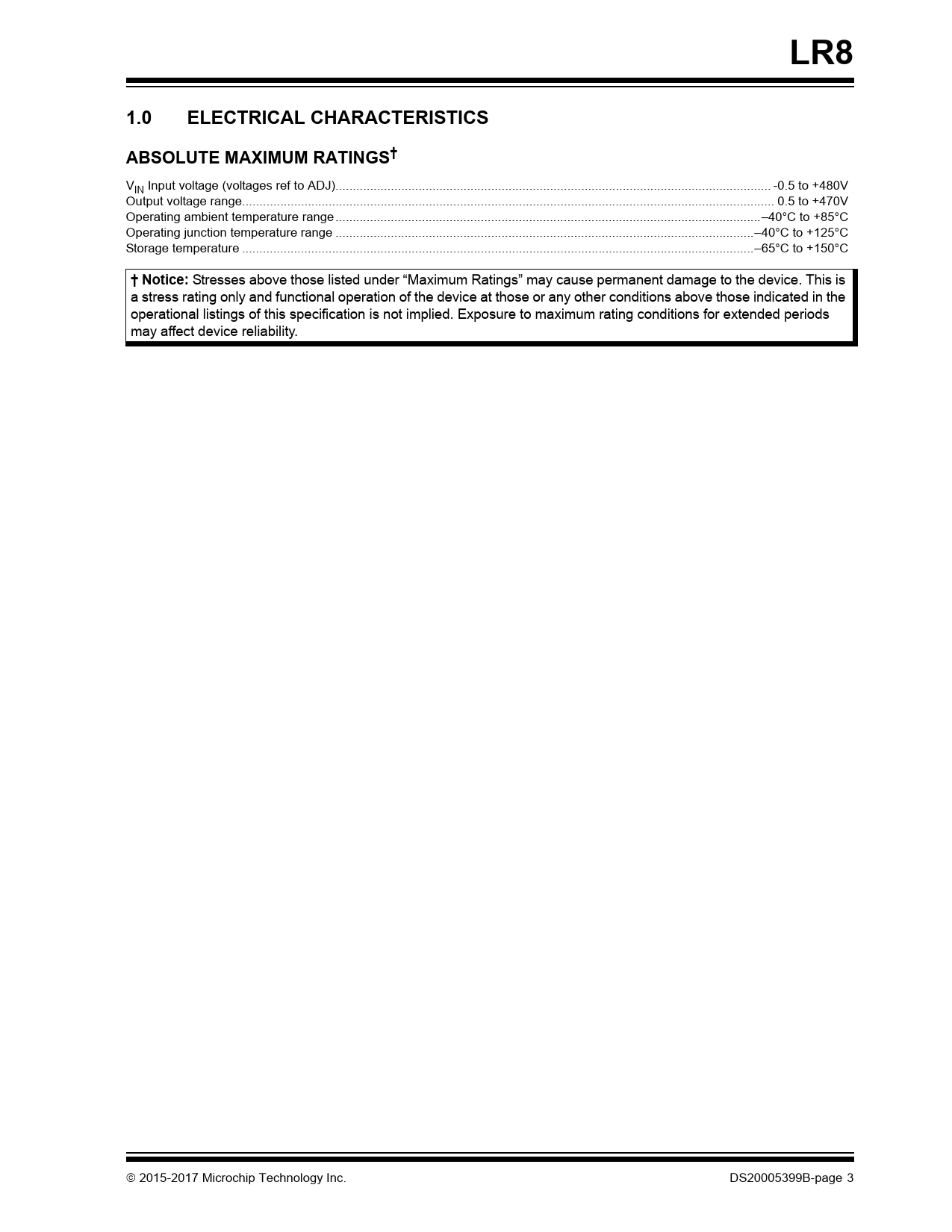

LR8
1.0 ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS†
VIN Input voltage (voltages ref to ADJ). -0.5 to +480V
Output voltage range. 0.5 to +470V
Operating ambient temperature range .–40°C to +85°C
Operating junction temperature range .–40°C to +125°C
Storage temperature .–65°C to +150°C † Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This is
a stress rating only and functional operation of the device at those or any other conditions above those indicated in the
operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods
may affect device reliability. 2015-2017 Microchip Technology Inc. DS20005399B-page 3
1.0 ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS†
VIN Input voltage (voltages ref to ADJ). -0.5 to +480V
Output voltage range. 0.5 to +470V
Operating ambient temperature range .–40°C to +85°C
Operating junction temperature range .–40°C to +125°C
Storage temperature .–65°C to +150°C † Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This is
a stress rating only and functional operation of the device at those or any other conditions above those indicated in the
operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods
may affect device reliability. 2015-2017 Microchip Technology Inc. DS20005399B-page 3
