Datasheet TLR377GYZ (Rohm) - 2

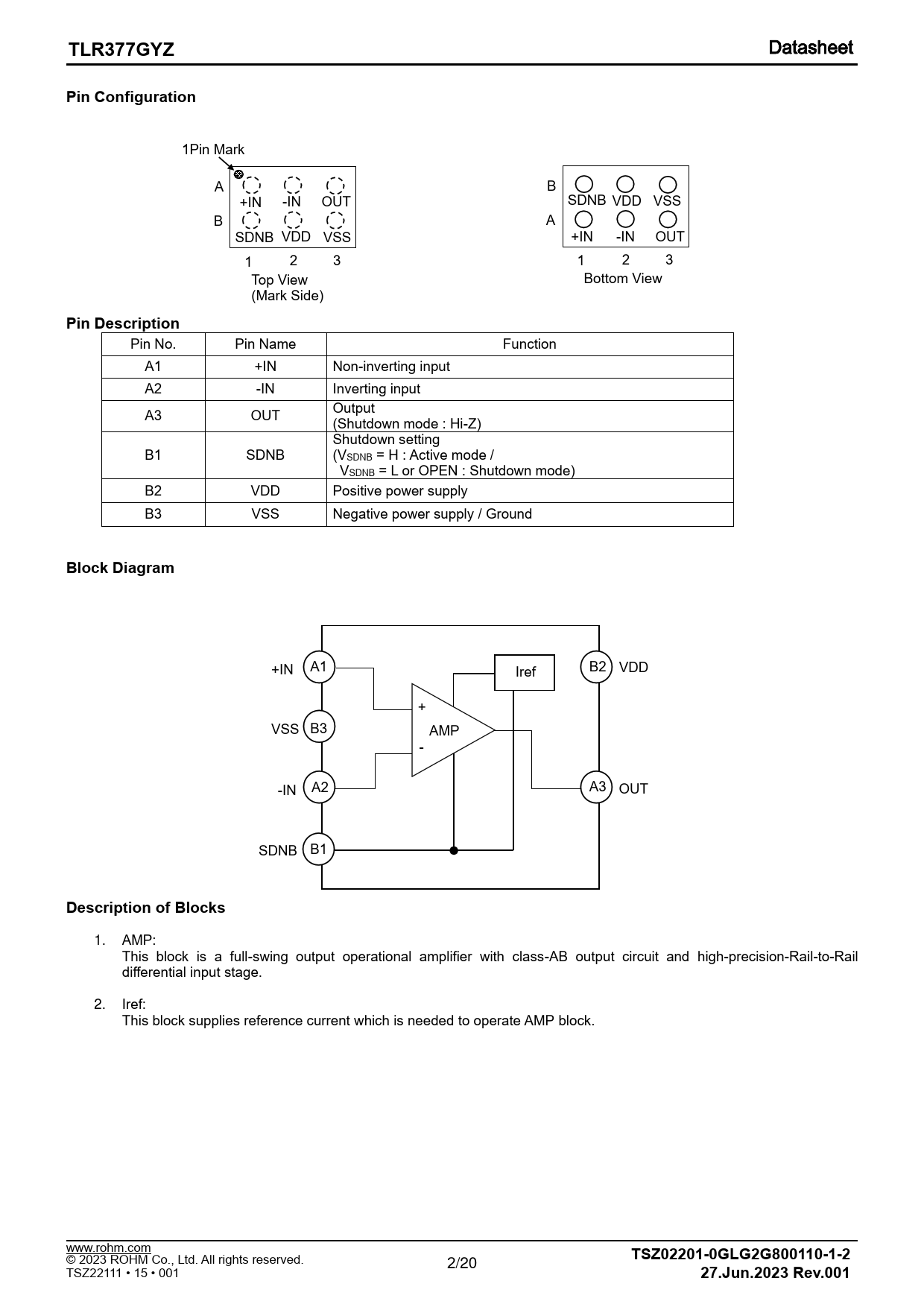

TLR377GYZ Pin Configuration
1Pin Mark A B +IN -IN OUT SDNB VDD VSS B A SDNB VDD +IN -IN OUT VSS 1 2 3 1 2 3 Top View Bottom View (Mark Side)
Pin Description
Pin No. Pin Name Function A1 +IN Non-inverting input A2 -IN Inverting input A3 Output OUT (Shutdown mode : Hi-Z) Shutdown setting B1 SDNB (VSDNB = H : Active mode / VSDNB = L or OPEN : Shutdown mode) B2 VDD Positive power supply B3 VSS Negative power supply / Ground
Block Diagram
+IN A1 B2 VDD Iref + VSS B3 AMP - A2 A3 -IN OUT SDNB B1
Description of Blocks
1. AMP: This block is a ful -swing output operational amplifier with class-AB output circuit and high-precision-Rail-to-Rail differential input stage. 2. Iref: This block supplies reference current which is needed to operate AMP block.

www.rohm.com
TSZ02201-0GLG2G800110-1-2
© 2023 ROHM Co., Ltd. All rights reserved. 2

/20 TSZ22111 • 15 • 001
27.Jun.2023 Rev.001
