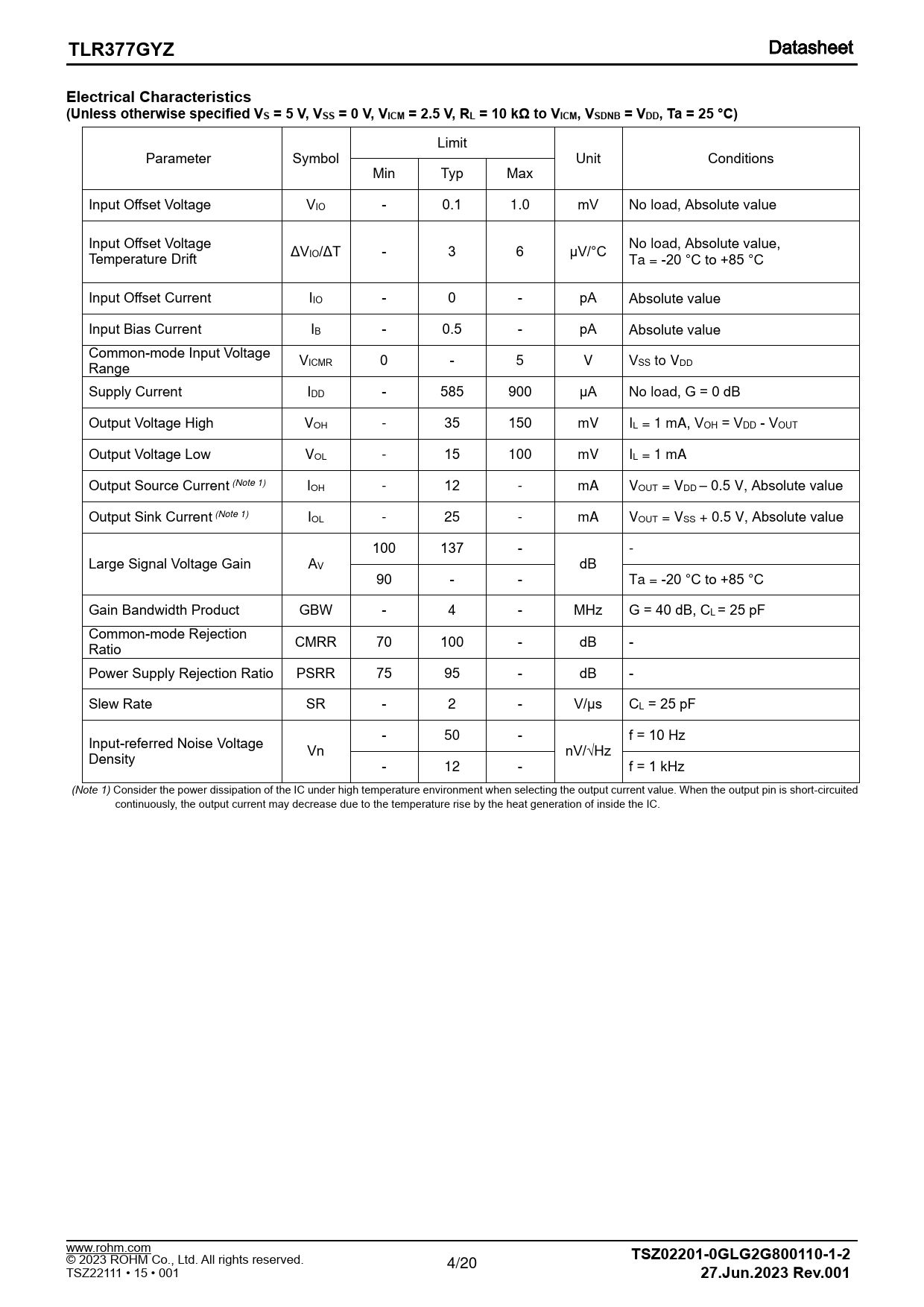

Datasheet TLR377GYZ (Rohm) - 4

TLR377GYZ Electrical Characteristics (Unless otherwise specified VS = 5 V, VSS = 0 V, VICM = 2.5 V, RL = 10 kΩ to VICM, VSDNB = VDD, Ta = 25 °C)
Limit Parameter Symbol Unit Conditions Min Typ Max Input Offset Voltage VIO - 0.1 1.0 mV No load, Absolute value Input Offset Voltage ΔV No load, Absolute value, Temperature Drift IO/ΔT - 3 6 μV/°C Ta = -20 °C to +85 °C Input Offset Current IIO - 0 - pA Absolute value Input Bias Current IB - 0.5 - pA Absolute value Common-mode Input Voltage Range VICMR 0 - 5 V VSS to V DD Supply Current IDD - 585 900 μA No load, G = 0 dB Output Voltage High VOH - 35 150 mV IL = 1 mA, VOH = VDD - VOUT Output Voltage Low VOL - 15 100 mV IL = 1 mA Output Source Current (Note 1) IOH - 12 - mA VOUT = VDD – 0.5 V, Absolute value Output Sink Current (Note 1) IOL - 25 - mA VOUT = VSS + 0.5 V, Absolute value 100 137 - - Large Signal Voltage Gain AV dB 90 - - Ta = -20 °C to +85 °C Gain Bandwidth Product GBW - 4 - MHz G = 40 dB, CL = 25 pF Common-mode Rejection Ratio CMRR 70 100 - dB - Power Supply Rejection Ratio PSRR 75 95 - dB - Slew Rate SR - 2 - V/μs CL = 25 pF - f = 10 Hz Input-referred Noise Voltage 50 - Vn nV/√Hz Density - 12 - f = 1 kHz (Note 1) Consider the power dissipation of the IC under high temperature environment when selecting the output current value. When the output pin is short-circuited continuously, the output current may decrease due to the temperature rise by the heat generation of inside the IC. www.rohm.com
