2SJ160, 2SJ161, 2SJ162. Silicon P Channel MOS FET. REJ03G0847-0200. (Previous: ADE-208-1182). Rev.2.00. Sep 07, 2005 Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments

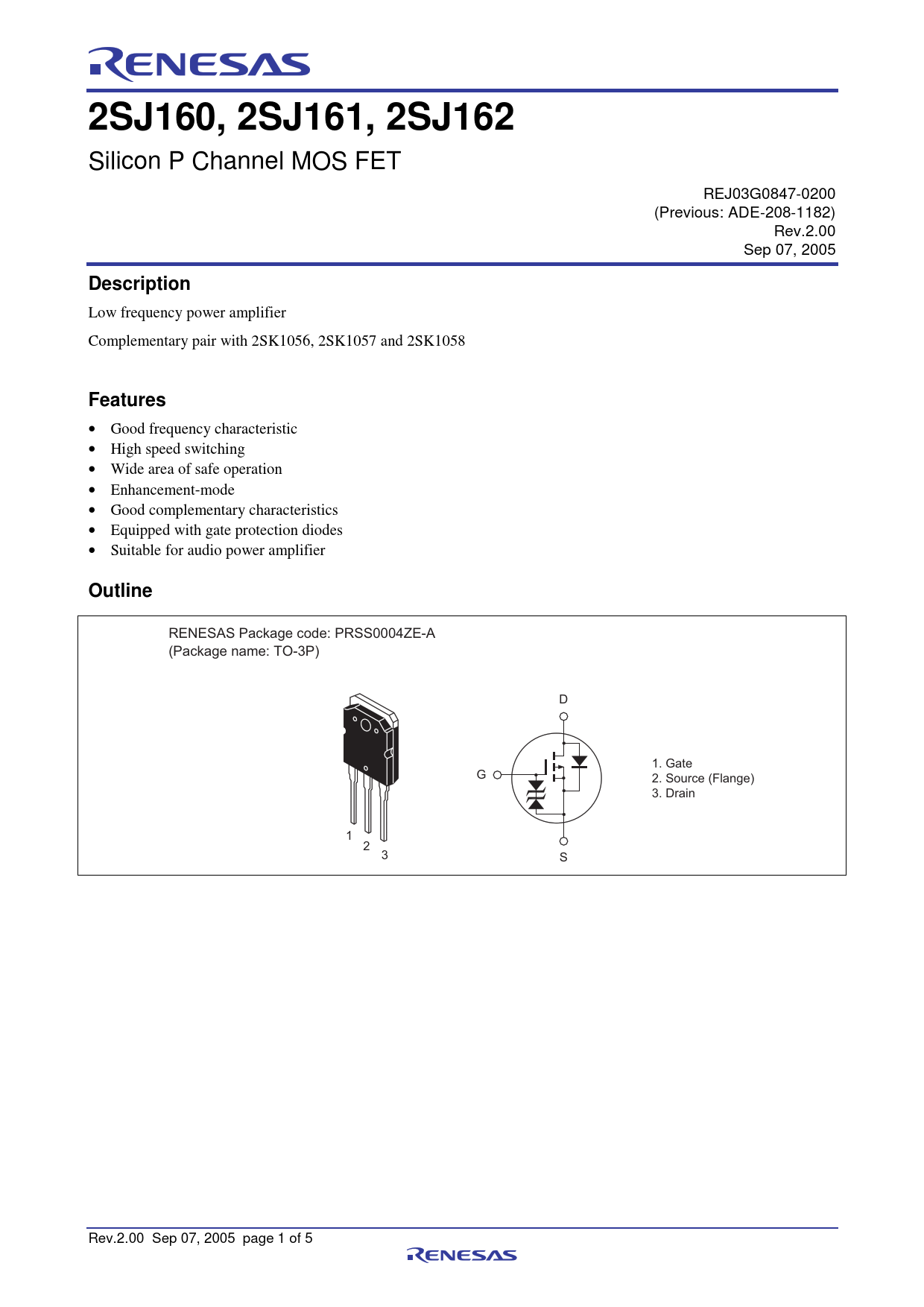

2SJ160, 2SJ161, 2SJ162
Silicon P Channel MOS FET
REJ03G0847-0200
(Previous: ADE-208-1182)
Rev.2.00
Sep 07, 2005 Description
Low frequency power amplifier
Complementary pair with 2SK1056, 2SK1057 and 2SK1058 Features
•
•
•
•
•
•
• Good frequency characteristic
High speed switching
Wide area of safe operation
Enhancement-mode
Good complementary characteristics
Equipped with gate protection diodes
Suitable for audio power amplifier Outline
RENESAS Package code: PRSS0004ZE-A
(Package name: TO-3P) D 1. Gate
2. Source (Flange)
3. Drain G 1 Rev.2.00 Sep 07, 2005 page 1 of 5 2 3 S
