Datasheet BC817 (Nexperia)
| Hersteller | Nexperia |
| Beschreibung | 45 V, 500 mA NPN General-Purpose Transistors |
| Seiten / Seite | 13 / 1 — BC817 series. 45 V, 500 mA NPN general-purpose transistors. Rev. 8 — 1 … |
| Revision | 30062022 |
| Dateiformat / Größe | PDF / 316 Kb |
| Dokumentensprache | Englisch |

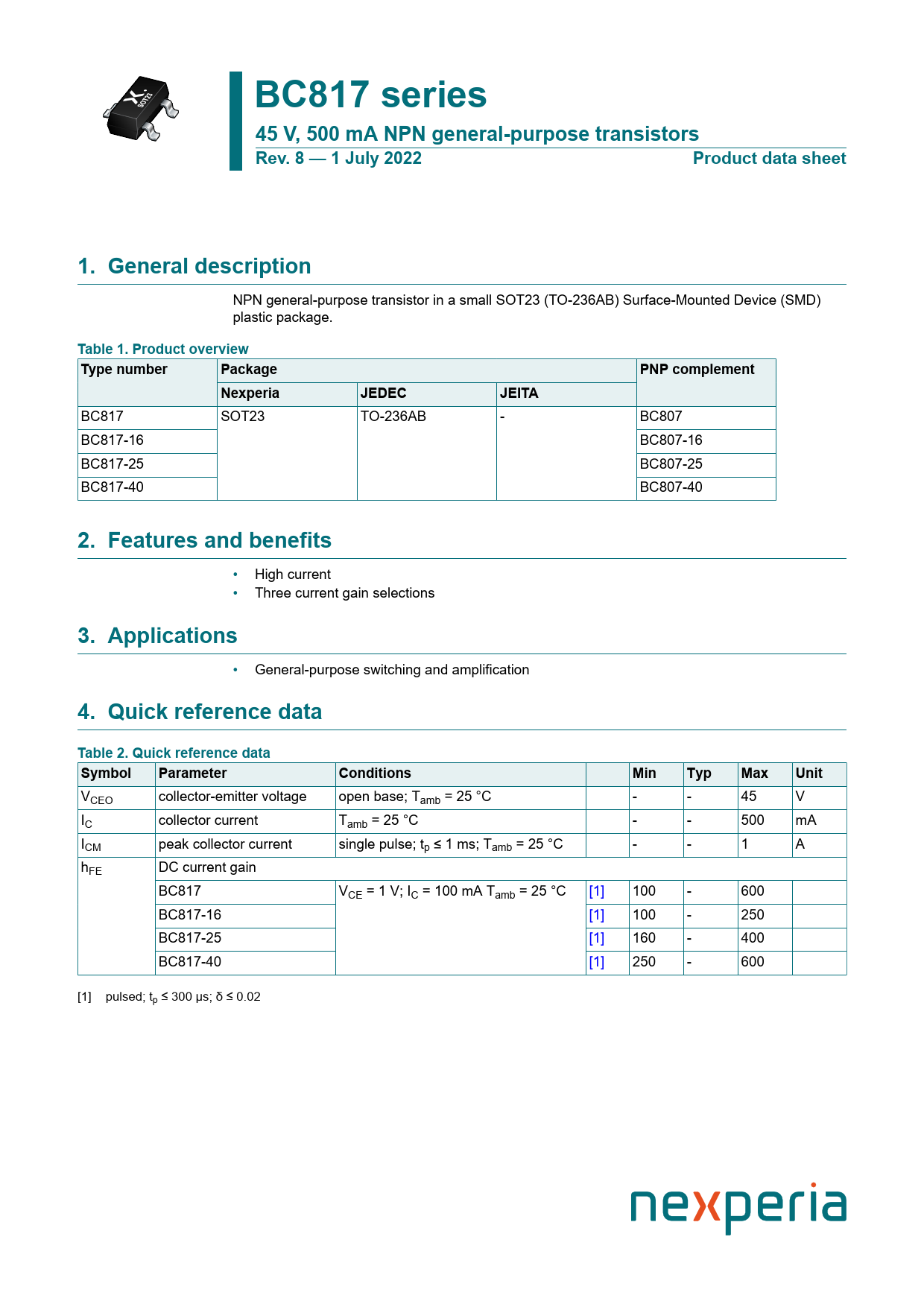

BC817 series. 45 V, 500 mA NPN general-purpose transistors. Rev. 8 — 1 July 2022. Product data sheet. 1. General description
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 1 link to page 1 link to page 1 link to page 1
BC817 series 45 V, 500 mA NPN general-purpose transistors Rev. 8 — 1 July 2022 Product data sheet 1. General description
NPN general-purpose transistor in a smal SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Type number Package PNP complement Nexperia JEDEC JEITA
BC817 SOT23 TO-236AB - BC807 BC817-16 BC807-16 BC817-25 BC807-25 BC817-40 BC807-40
2. Features and benefits
• High current • Three current gain selections
3. Applications
• General-purpose switching and amplification
4. Quick reference data Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base; Tamb = 25 °C - - 45 V IC collector current Tamb = 25 °C - - 500 mA ICM peak collector current single pulse; tp ≤ 1 ms; Tamb = 25 °C - - 1 A hFE DC current gain BC817 VCE = 1 V; IC = 100 mA Tamb = 25 °C [1] 100 - 600 BC817-16 [1] 100 - 250 BC817-25 [1] 160 - 400 BC817-40 [1] 250 - 600 [1] pulsed; tp ≤ 300 μs; δ ≤ 0.02 Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Package outline 12. Soldering 13. Revision history 14. Legal information Contents
