Datasheet BC817 (Nexperia) - 2
| Hersteller | Nexperia |
| Beschreibung | 45 V, 500 mA NPN General-Purpose Transistors |
| Seiten / Seite | 13 / 2 — Nexperia. BC817 series. 45 V, 500 mA NPN general-purpose transistors. 5. … |
| Revision | 30062022 |
| Dateiformat / Größe | PDF / 316 Kb |
| Dokumentensprache | Englisch |
Nexperia. BC817 series. 45 V, 500 mA NPN general-purpose transistors. 5. Pinning information Table 3. Pinning. Pin. Symbol
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 2

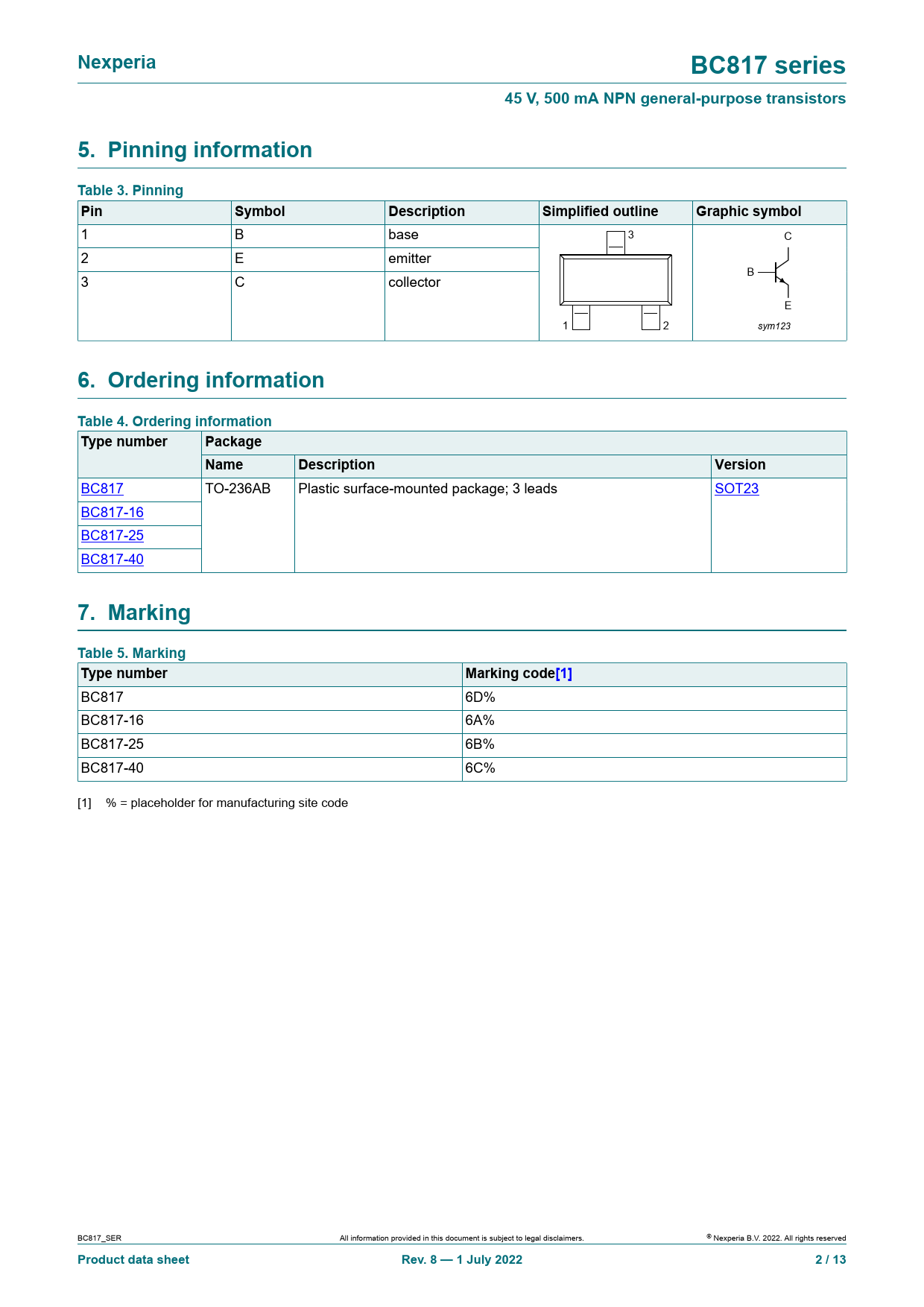

Nexperia BC817 series 45 V, 500 mA NPN general-purpose transistors 5. Pinning information Table 3. Pinning Pin Symbol Description Simplified outline Graphic symbol
1 B base 3 C 2 E emitter B 3 C collector E 1 2 sym123
6. Ordering information Table 4. Ordering information Type number Package Name Description Version
BC817 TO-236AB Plastic surface-mounted package; 3 leads SOT23 BC817-16 BC817-25 BC817-40
7. Marking Table 5. Marking Type number Marking code[1]
BC817 6D% BC817-16 6A% BC817-25 6B% BC817-40 6C% [1] % = placeholder for manufacturing site code BC817_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 2 / 13
