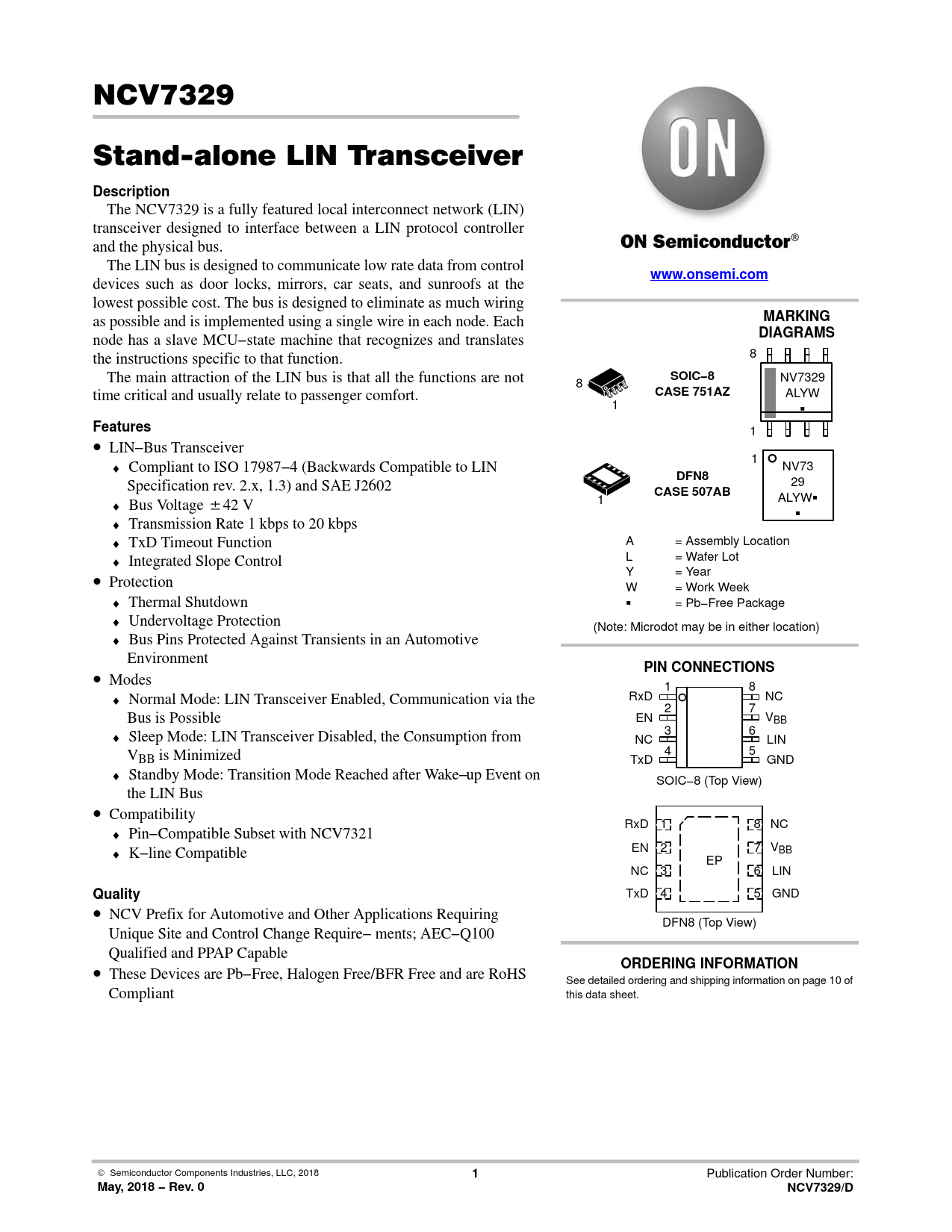

link to page 10 NCV7329 Stand-alone LIN Transceiver
Description
The NCV7329 is a fully featured local interconnect network (LIN) transceiver designed to interface between a LIN protocol controller and the physical bus. The LIN bus is designed to communicate low rate data from control
www.onsemi.com
devices such as door locks, mirrors, car seats, and sunroofs at the lowest possible cost. The bus is designed to eliminate as much wiring as possible and is implemented using a single wire in each node. Each
MARKING DIAGRAMS
node has a slave MCU−state machine that recognizes and translates the instructions specific to that function. 8 The main attraction of the LIN bus is that all the functions are not
SOIC−8
8 NV7329 time critical and usually relate to passenger comfort.
CASE 751AZ
ALYW 1 G
Features
1 • LIN−Bus Transceiver 1 ♦ Compliant to ISO 17987−4 (Backwards Compatible to LIN NV73
DFN8
Specification rev. 2.x, 1.3) and SAE J2602 29
CASE 507AB
♦ ALYW 1 G Bus Voltage $42 V G ♦ Transmission Rate 1 kbps to 20 kbps ♦ TxD Timeout Function A = Assembly Location ♦ Integrated Slope Control L = Wafer Lot • Y = Year Protection W = Work Week ♦ Thermal Shutdown G = Pb−Free Package ♦ Undervoltage Protection (Note: Microdot may be in either location) ♦ Bus Pins Protected Against Transients in an Automotive Environment •
PIN CONNECTIONS
Modes 1 8 ♦ Normal Mode: LIN Transceiver Enabled, Communication via the RxD NC 2 7 Bus is Possible EN VBB ♦ Sleep Mode: LIN Transceiver Disabled, the Consumption from 3 6 NC LIN V 4 5 BB is Minimized TxD GND ♦ Standby Mode: Transition Mode Reached after Wake−up Event on SOIC−8 (Top View) the LIN Bus • Compatibility RxD 1 8 NC ♦ Pin−Compatible Subset with NCV7321 ♦ K−line Compatible EN 2 7 VBB EP NC 3 6 LIN
Quality
TxD 4 5 GND • NCV Prefix for Automotive and Other Applications Requiring DFN8 (Top View) Unique Site and Control Change Require− ments; AEC−Q100 Qualified and PPAP Capable •
ORDERING INFORMATION
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS See detailed ordering and shipping information on page 10 of Compliant this data sheet. © Semiconductor Components Industries, LLC, 2018
1
Publication Order Number:
May, 2018 − Rev. 0 NCV7329/D
