Datasheet MBR350, MBR360 (ON Semiconductor) - 5

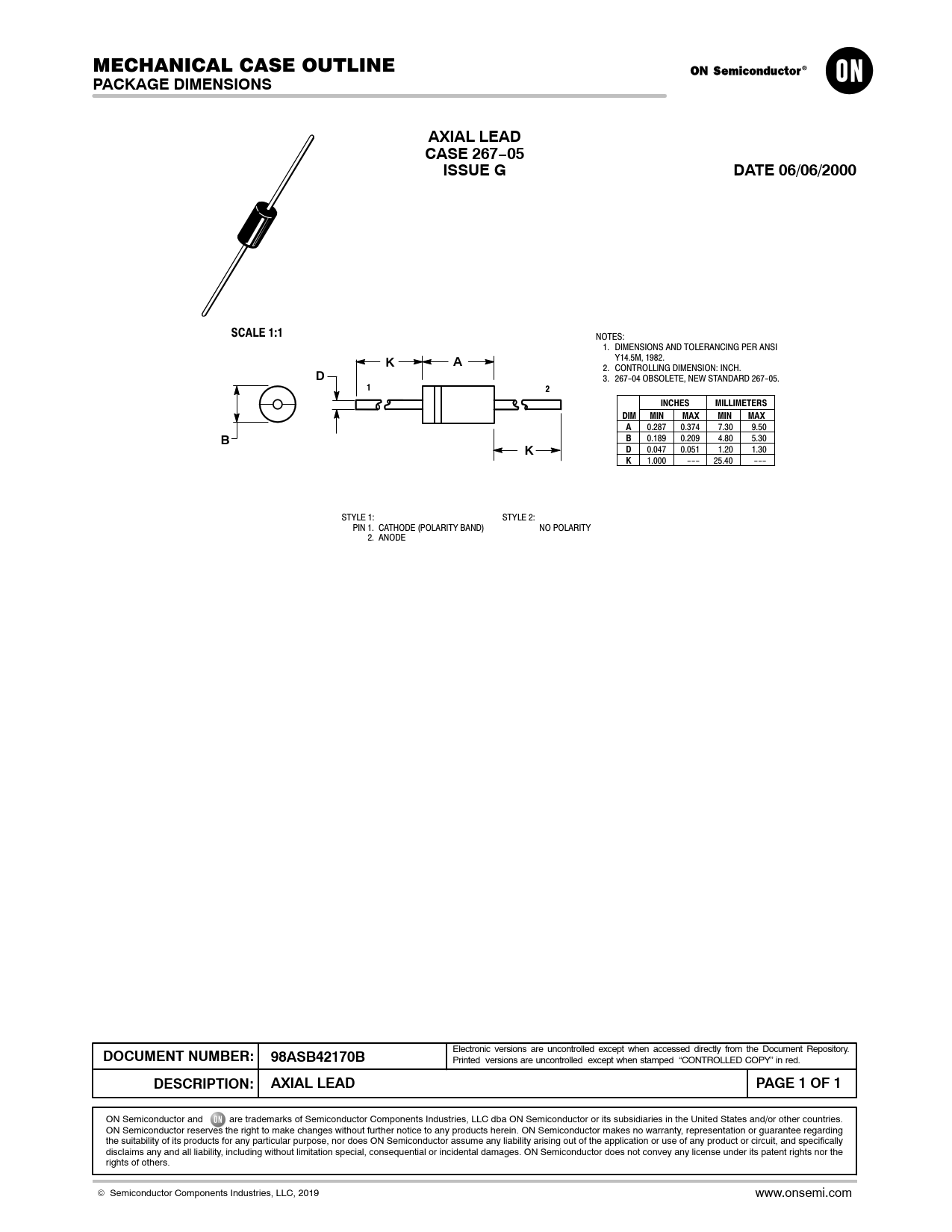

MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS AXIAL LEAD CASE 267−05 ISSUE G DATE 06/06/2000 SCALE 1:1
NOTES: 1. DIMENSIONS AND TOLERANCING PER ANSI
K A
Y14.5M, 1982.
D
2. CONTROLLING DIMENSION: INCH. 3. 267-04 OBSOLETE, NEW STANDARD 267-05.
1 2 INCHES MILLIMETERS DIM MIN MAX MIN MAX A
0.287 0.374 7.30 9.50
B B
0.189 0.209 4.80 5.30
K D
0.047 0.051 1.20 1.30
K
1.000 --- 25.40 --- STYLE 1: STYLE 2: PIN 1. CATHODE (POLARITY BAND) NO POLARITY 2. ANODE
DOCUMENT NUMBER: 98ASB42170B
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: AXIAL LEAD PAGE 1 OF 1
