Datasheet SSM10N961L (Toshiba)

HerstellerToshiba
BeschreibungSilicon N-Channel MOSFET
Seiten / Seite9 / 1 — SSM10N961L. MOSFETs. Silicon. N-Channel. MOS. SSM10N961L. 1. …
Dateiformat / GrößePDF / 484 Kb
DokumentenspracheEnglisch

SSM10N961L. MOSFETs. Silicon. N-Channel. MOS. SSM10N961L. 1. Applications. •. Power. Management. Switches. •. Battery. protection. circuits. 2. Features

Datasheet SSM10N961L Toshiba

Modelllinie für dieses Datenblatt

Textversion des Dokuments

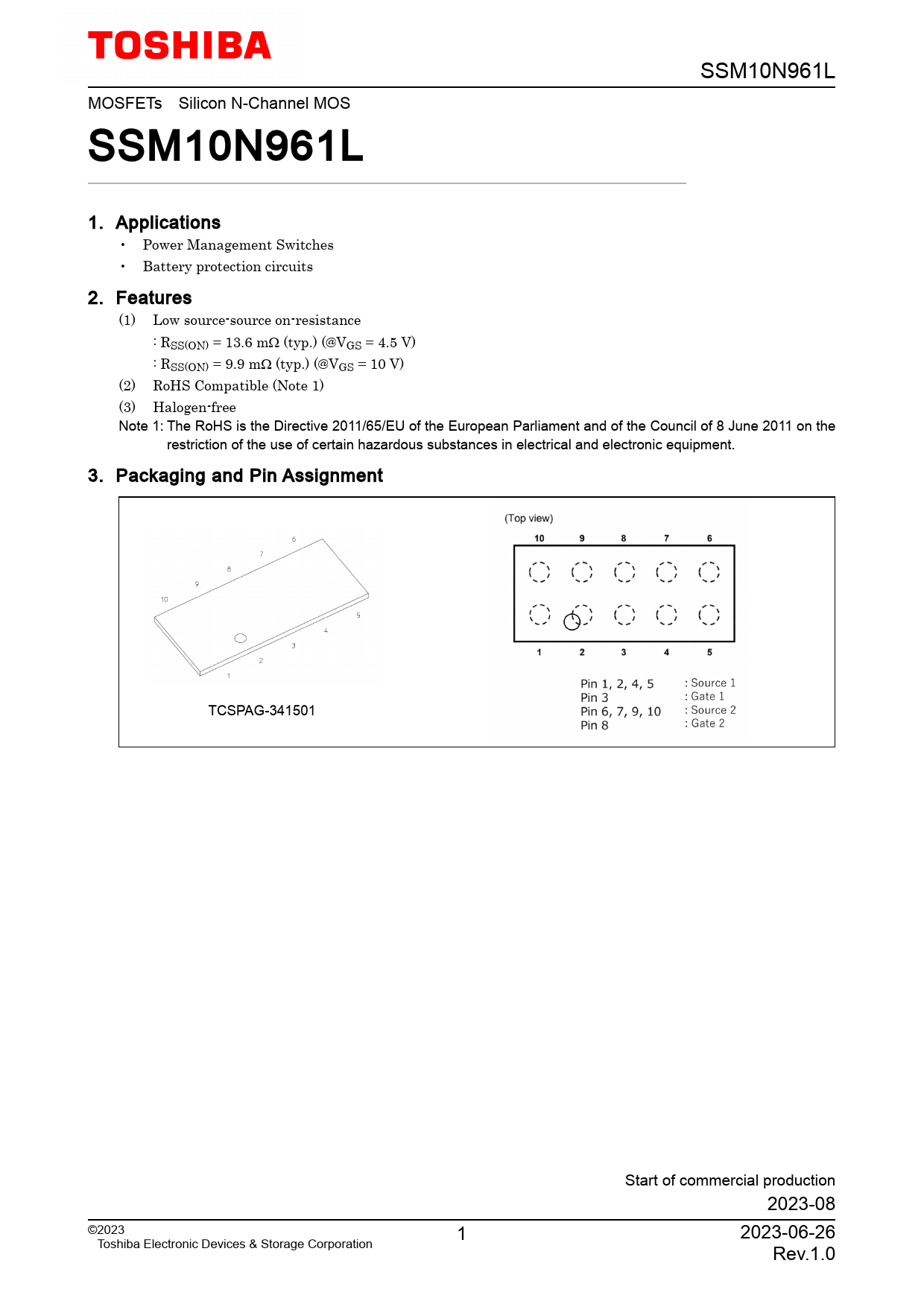

SSM10N961L MOSFETs Silicon N-Channel MOS SSM10N961L 1. Applications • Power Management Switches • Battery protection circuits 2. Features (1) Low source-source on-resistance : RSS(ON) = 13.6 mΩ (typ.) (@VGS = 4.5 V) : RSS(ON) = 9.9 mΩ (typ.) (@VGS = 10 V) (2) RoHS Compatible (Note 1) (3) Halogen-free Note 1: The RoHS is the Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. 3. Packaging and Pin Assignment TCSPAG-341501 Start of commercial production 2023-08 ©2023 1 2023-06-26 Toshiba Electronic Devices & Storage Corporation Rev.1.0
