MC10EP16, MC100EP16. Table 9. 100EP DC CHARACTERISTICS, NECL. −40. Symbol. Characteristic. Min. Typ. Max. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 link to page 7 link to page 6 link to page 7

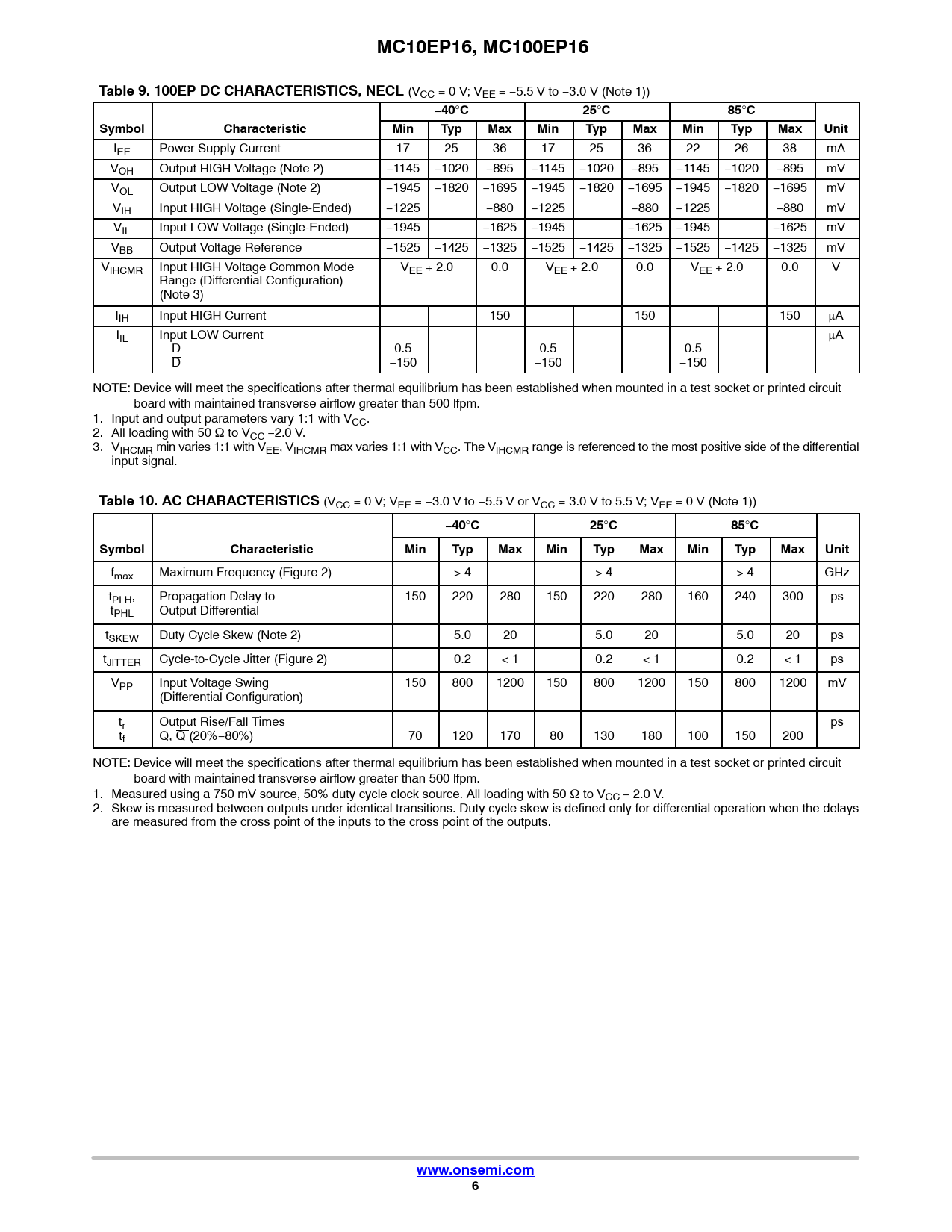

MC10EP16, MC100EP16 Table 9. 100EP DC CHARACTERISTICS, NECL
(VCC = 0 V; VEE = −5.5 V to −3.0 V (Note 1))
−40
°
C 25
°
C 85
°
C Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Unit
IEE Power Supply Current 17 25 36 17 25 36 22 26 38 mA VOH Output HIGH Voltage (Note 2) −1145 −1020 −895 −1145 −1020 −895 −1145 −1020 −895 mV VOL Output LOW Voltage (Note 2) −1945 −1820 −1695 −1945 −1820 −1695 −1945 −1820 −1695 mV VIH Input HIGH Voltage (Single-Ended) −1225 −880 −1225 −880 −1225 −880 mV VIL Input LOW Voltage (Single-Ended) −1945 −1625 −1945 −1625 −1945 −1625 mV VBB Output Voltage Reference −1525 −1425 −1325 −1525 −1425 −1325 −1525 −1425 −1325 mV VIHCMR Input HIGH Voltage Common Mode VEE + 2.0 0.0 VEE + 2.0 0.0 VEE + 2.0 0.0 V Range (Differential Configuration) (Note 3) IIH Input HIGH Current 150 150 150 mA IIL Input LOW Current mA D 0.5 0.5 0.5 D −150 −150 −150 NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. 1. Input and output parameters vary 1:1 with VCC. 2. All loading with 50 W to VCC −2.0 V. 3. VIHCMR min varies 1:1 with VEE, VIHCMR max varies 1:1 with VCC. The VIHCMR range is referenced to the most positive side of the differential input signal.
Table 10. AC CHARACTERISTICS
(VCC = 0 V; VEE = −3.0 V to −5.5 V or VCC = 3.0 V to 5.5 V; VEE = 0 V (Note 1))
−40
°
C 25
°
C 85
°
C Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Unit
fmax Maximum Frequency (Figure 2) > 4 > 4 > 4 GHz tPLH, Propagation Delay to 150 220 280 150 220 280 160 240 300 ps tPHL Output Differential tSKEW Duty Cycle Skew (Note 2) 5.0 20 5.0 20 5.0 20 ps tJITTER Cycle-to-Cycle Jitter (Figure 2) 0.2 < 1 0.2 < 1 0.2 < 1 ps VPP Input Voltage Swing 150 800 1200 150 800 1200 150 800 1200 mV (Differential Configuration) tr Output Rise/Fall Times ps tf Q, Q (20%−80%) 70 120 170 80 130 180 100 150 200 NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. 1. Measured using a 750 mV source, 50% duty cycle clock source. All loading with 50 W to VCC − 2.0 V. 2. Skew is measured between outputs under identical transitions. Duty cycle skew is defined only for differential operation when the delays are measured from the cross point of the inputs to the cross point of the outputs.
www.onsemi.com 6
MC10EP16, MC100EP16 Table 9. 100EP DC CHARACTERISTICS, NECL
(VCC = 0 V; VEE = −5.5 V to −3.0 V (Note 1))
−40
°
C 25
°
C 85
°
C Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Unit
IEE Power Supply Current 17 25 36 17 25 36 22 26 38 mA VOH Output HIGH Voltage (Note 2) −1145 −1020 −895 −1145 −1020 −895 −1145 −1020 −895 mV VOL Output LOW Voltage (Note 2) −1945 −1820 −1695 −1945 −1820 −1695 −1945 −1820 −1695 mV VIH Input HIGH Voltage (Single-Ended) −1225 −880 −1225 −880 −1225 −880 mV VIL Input LOW Voltage (Single-Ended) −1945 −1625 −1945 −1625 −1945 −1625 mV VBB Output Voltage Reference −1525 −1425 −1325 −1525 −1425 −1325 −1525 −1425 −1325 mV VIHCMR Input HIGH Voltage Common Mode VEE + 2.0 0.0 VEE + 2.0 0.0 VEE + 2.0 0.0 V Range (Differential Configuration) (Note 3) IIH Input HIGH Current 150 150 150 mA IIL Input LOW Current mA D 0.5 0.5 0.5 D −150 −150 −150 NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. 1. Input and output parameters vary 1:1 with VCC. 2. All loading with 50 W to VCC −2.0 V. 3. VIHCMR min varies 1:1 with VEE, VIHCMR max varies 1:1 with VCC. The VIHCMR range is referenced to the most positive side of the differential input signal.
Table 10. AC CHARACTERISTICS
(VCC = 0 V; VEE = −3.0 V to −5.5 V or VCC = 3.0 V to 5.5 V; VEE = 0 V (Note 1))
−40
°
C 25
°
C 85
°
C Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Unit
fmax Maximum Frequency (Figure 2) > 4 > 4 > 4 GHz tPLH, Propagation Delay to 150 220 280 150 220 280 160 240 300 ps tPHL Output Differential tSKEW Duty Cycle Skew (Note 2) 5.0 20 5.0 20 5.0 20 ps tJITTER Cycle-to-Cycle Jitter (Figure 2) 0.2 < 1 0.2 < 1 0.2 < 1 ps VPP Input Voltage Swing 150 800 1200 150 800 1200 150 800 1200 mV (Differential Configuration) tr Output Rise/Fall Times ps tf Q, Q (20%−80%) 70 120 170 80 130 180 100 150 200 NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. 1. Measured using a 750 mV source, 50% duty cycle clock source. All loading with 50 W to VCC − 2.0 V. 2. Skew is measured between outputs under identical transitions. Duty cycle skew is defined only for differential operation when the delays are measured from the cross point of the inputs to the cross point of the outputs.
www.onsemi.com 6
