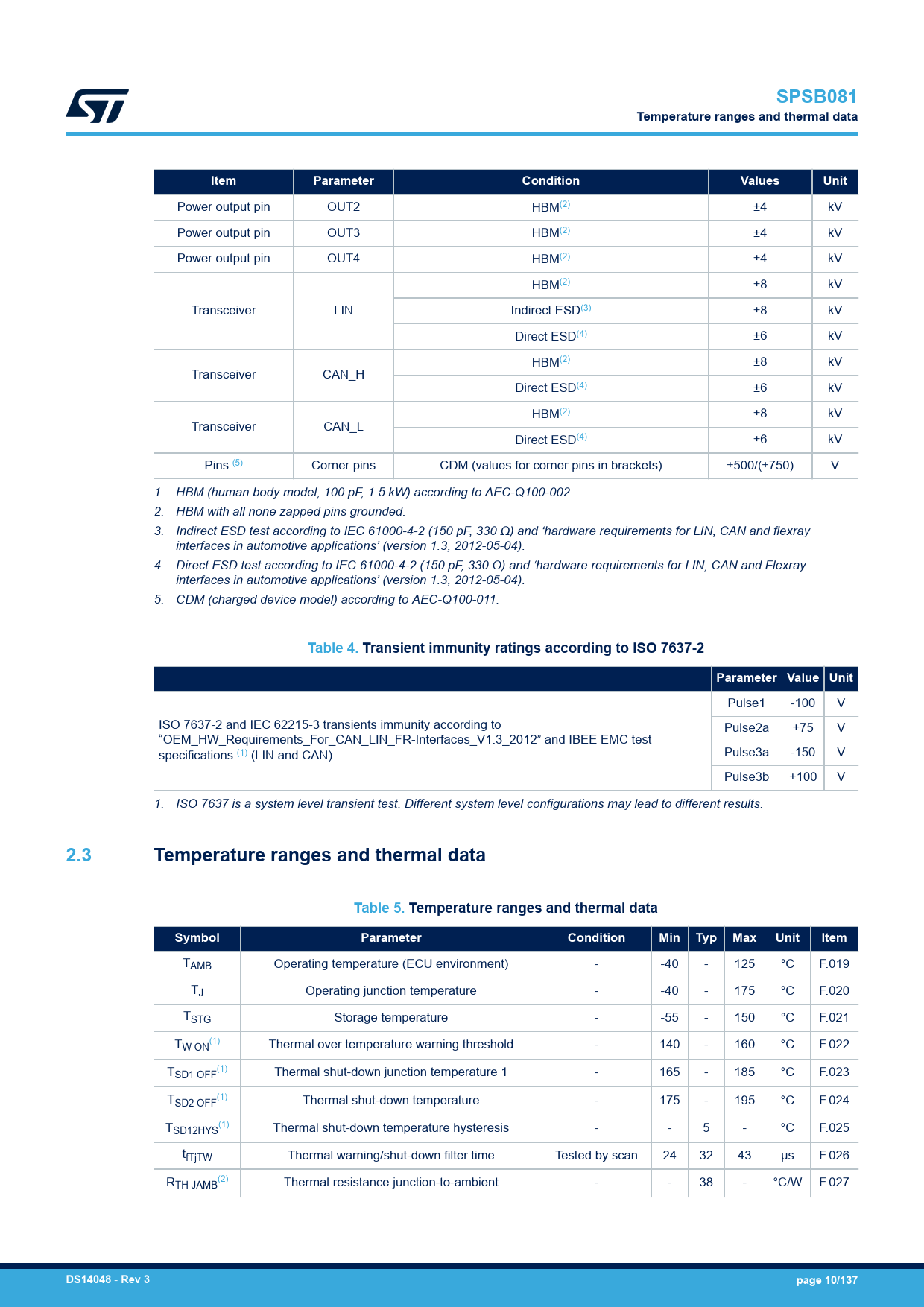

SPSB081 Temperature ranges and thermal data Item Parameter Condition Values Unit
Power output pin OUT2 HBM(2) ±4 kV Power output pin OUT3 HBM(2) ±4 kV Power output pin OUT4 HBM(2) ±4 kV HBM(2) ±8 kV Transceiver LIN Indirect ESD(3) ±8 kV Direct ESD(4) ±6 kV HBM(2) ±8 kV Transceiver CAN_H Direct ESD(4) ±6 kV HBM(2) ±8 kV Transceiver CAN_L Direct ESD(4) ±6 kV Pins (5) Corner pins CDM (values for corner pins in brackets) ±500/(±750) V 1. HBM (human body model, 100 pF, 1.5 kW) according to AEC-Q100-002. 2. HBM with all none zapped pins grounded. 3. Indirect ESD test according to IEC 61000-4-2 (150 pF, 330 Ω) and ‘hardware requirements for LIN, CAN and flexray interfaces in automotive applications’ (version 1.3, 2012-05-04). 4. Direct ESD test according to IEC 61000-4-2 (150 pF, 330 Ω) and ‘hardware requirements for LIN, CAN and Flexray interfaces in automotive applications’ (version 1.3, 2012-05-04). 5. CDM (charged device model) according to AEC-Q100-011.
Table 4. Transient immunity ratings according to ISO 7637-2 Parameter Value Unit
Pulse1 -100 V ISO 7637-2 and IEC 62215-3 transients immunity according to Pulse2a +75 V “OEM_HW_Requirements_For_CAN_LIN_FR-Interfaces_V1.3_2012” and IBEE EMC test specifications (1) (LIN and CAN) Pulse3a -150 V Pulse3b +100 V 1. ISO 7637 is a system level transient test. Different system level configurations may lead to different results.
2.3 Temperature ranges and thermal data Table 5. Temperature ranges and thermal data Symbol Parameter Condition Min Typ Max Unit Item
TAMB Operating temperature (ECU environment) - -40 - 125 °C F.019 TJ Operating junction temperature - -40 - 175 °C F.020 TSTG Storage temperature - -55 - 150 °C F.021 T (1) W ON Thermal over temperature warning threshold - 140 - 160 °C F.022 T (1) SD1 OFF Thermal shut-down junction temperature 1 - 165 - 185 °C F.023 T (1) SD2 OFF Thermal shut-down temperature - 175 - 195 °C F.024 T (1) SD12HYS Thermal shut-down temperature hysteresis - - 5 - °C F.025 tfTjTW Thermal warning/shut-down filter time Tested by scan 24 32 43 µs F.026 R (2) TH JAMB Thermal resistance junction-to-ambient - - 38 - °C/W F.027
DS14048
-
Rev 3 page 10/137
