Datasheet MMBT2369, PN2369 (ON Semiconductor) - 5
| Hersteller | ON Semiconductor |
| Beschreibung | NPN Switching Transistor |
| Seiten / Seite | 7 / 5 — MMBT2369 / PN2369 — NPN Switching Transistor Package Dimensions … |
| Dateiformat / Größe | PDF / 212 Kb |
| Dokumentensprache | Englisch |

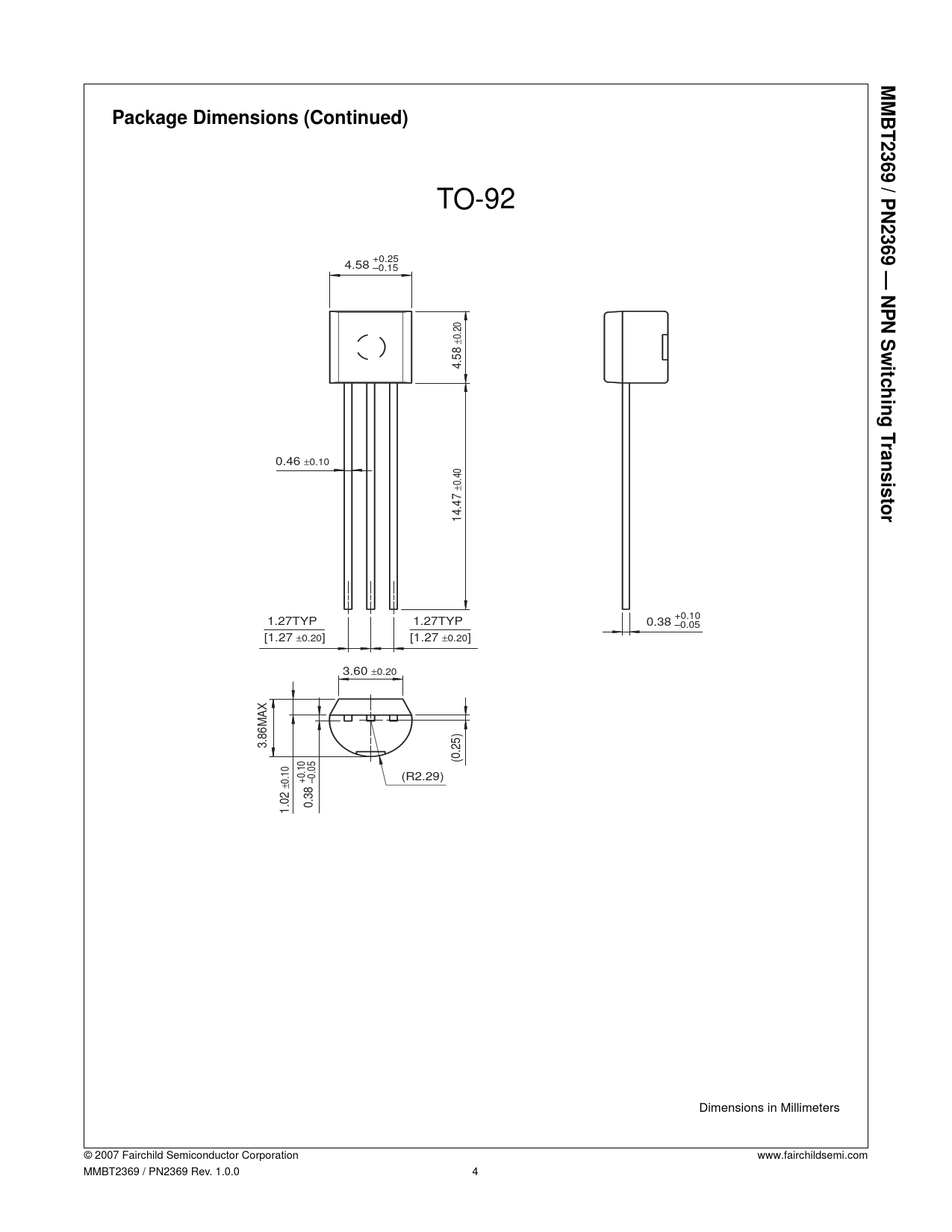

MMBT2369 / PN2369 — NPN Switching Transistor Package Dimensions (Continued) TO-92
Modelllinie für dieses Datenblatt
Textversion des Dokuments
MMBT2369 / PN2369 — NPN Switching Transistor Package Dimensions (Continued) TO-92
+0.25 4.58 ±0.20 4.58 –0.15 14.47 ±0.40 0.46 ±0.10 1.27TYP
[1.27 ±0.20] +0.10 1.27TYP
[1.27 ±0.20] 0.38 –0.05 (0.25) +0.10 0.38 –0.05 1.02 ±0.10 3.86MAX 3.60 ±0.20 (R2.29) Dimensions in Millimeters © 2007 Fairchild Semiconductor Corporation
MMBT2369 / PN2369 Rev. 1.0.0 www.fairchildsemi.com
4
+0.25 4.58 ±0.20 4.58 –0.15 14.47 ±0.40 0.46 ±0.10 1.27TYP
[1.27 ±0.20] +0.10 1.27TYP
[1.27 ±0.20] 0.38 –0.05 (0.25) +0.10 0.38 –0.05 1.02 ±0.10 3.86MAX 3.60 ±0.20 (R2.29) Dimensions in Millimeters © 2007 Fairchild Semiconductor Corporation
MMBT2369 / PN2369 Rev. 1.0.0 www.fairchildsemi.com
4
