Datasheet 2SCR586JFRG (Rohm) - 4
| Hersteller | Rohm |
| Beschreibung | NPN 5.0A 80V Power Transistor |
| Seiten / Seite | 9 / 4 — 2SCR586J FRG Datasheet l Electrical characteristic curves(Ta = 25°C) … |
| Dateiformat / Größe | PDF / 1.5 Mb |
| Dokumentensprache | Englisch |

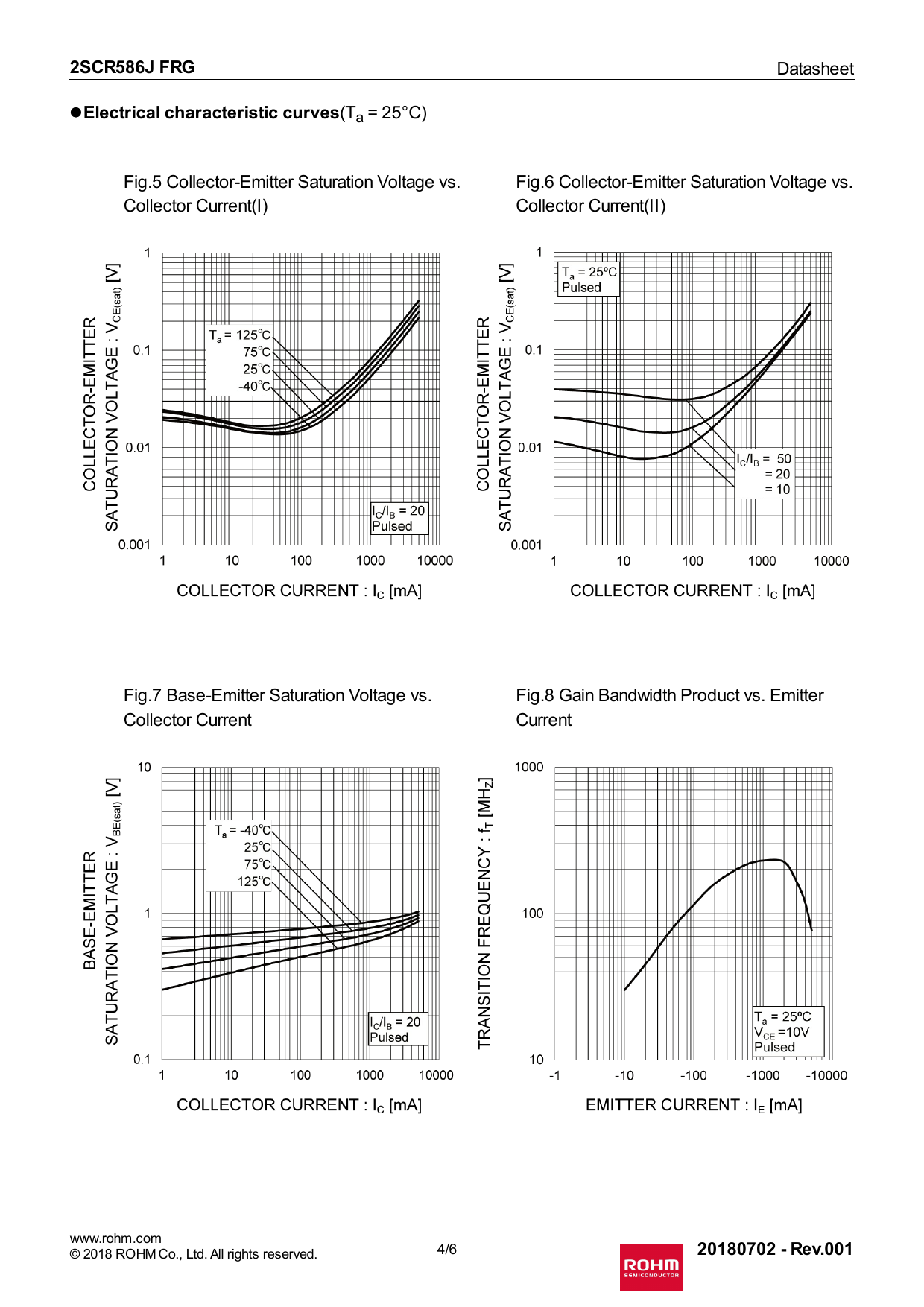

2SCR586J FRG Datasheet l Electrical characteristic curves(Ta = 25°C) Fig.5 Collector-Emitter Saturation Voltage vs
Modelllinie für dieses Datenblatt
Textversion des Dokuments
2SCR586J FRG Datasheet l Electrical characteristic curves(Ta = 25°C) Fig.5 Collector-Emitter Saturation Voltage vs.
Collector Current(I) Fig.6 Collector-Emitter Saturation Voltage vs.
Collector Current(II) Fig.7 Base-Emitter Saturation Voltage vs.
Collector Current Fig.8 Gain Bandwidth Product vs. Emitter
Current www.rohm.com
© 2018 ROHM Co., Ltd. All rights reserved. 4/6 20180702 -Rev.001
