Datasheet 2SCR586JFRG (Rohm)
| Hersteller | Rohm |
| Beschreibung | NPN 5.0A 80V Power Transistor |
| Seiten / Seite | 9 / 1 — 2SCR586J FRG. Datasheet NPN 5.0A 80V Power Transistor l Outline Parameter … |
| Dateiformat / Größe | PDF / 1.5 Mb |
| Dokumentensprache | Englisch |
2SCR586J FRG. Datasheet NPN 5.0A 80V Power Transistor l Outline Parameter Value VCEO 80V IC 5A TO-263AB
Modelllinie für dieses Datenblatt
Textversion des Dokuments

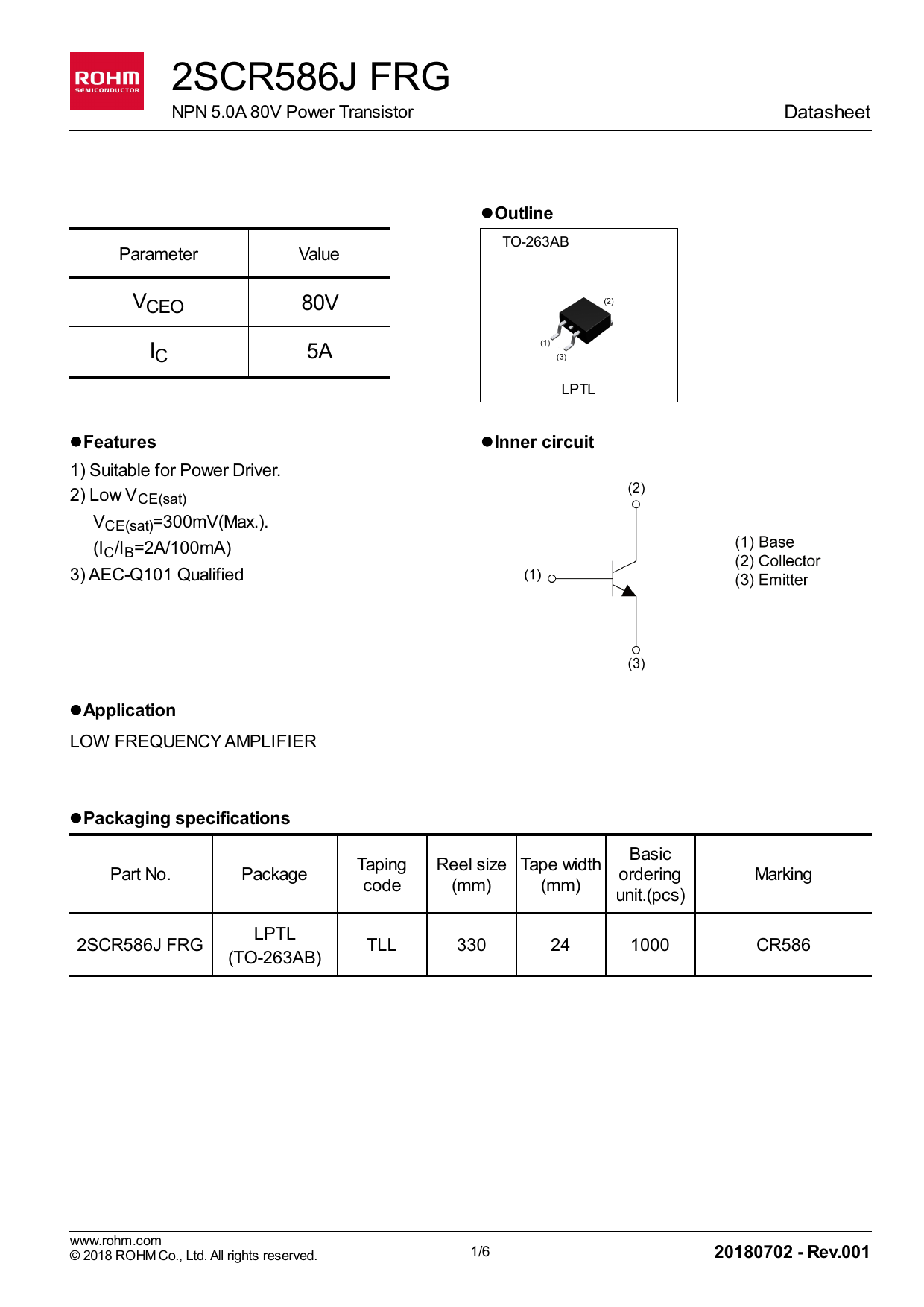

2SCR586J FRG
Datasheet NPN 5.0A 80V Power Transistor l Outline Parameter Value VCEO 80V IC 5A TO-263AB
LPTL l Features l Inner circuit 1) Suitable for Power Driver.
2) Low V CE(sat)
VCE(sat)=300mV(Max.).
(IC/I B=2A/100mA)
3) AEC-Q101 Qualified l Application LOW FREQUENCY AMPLIFIER l Packaging specifications Part No. Package Taping
code 2SCR586J FRG LPTL
(TO-263AB) TLL Basic
Reel size Tape width ordering
(mm)
(mm)
unit.(pcs)
330 24 1000 Marking CR586 www.rohm.com
© 2018 ROHM Co., Ltd. All rights reserved. 1/6 20180702 -Rev.001
