Datasheet STD4NK50Z-1, STD4NK50ZT4 (STMicroelectronics) - 10
| Hersteller | STMicroelectronics |
| Beschreibung | N-channel 500 V, 2.2 Ω typ., 3 A SuperMESH Power MOSFETs in IPAK and DPAK packages |
| Seiten / Seite | 23 / 10 — STD4NK50Z-1, STD4NK50ZT4. IPAK (TO-251) type A package information. Table … |
| Dateiformat / Größe | PDF / 585 Kb |
| Dokumentensprache | Englisch |

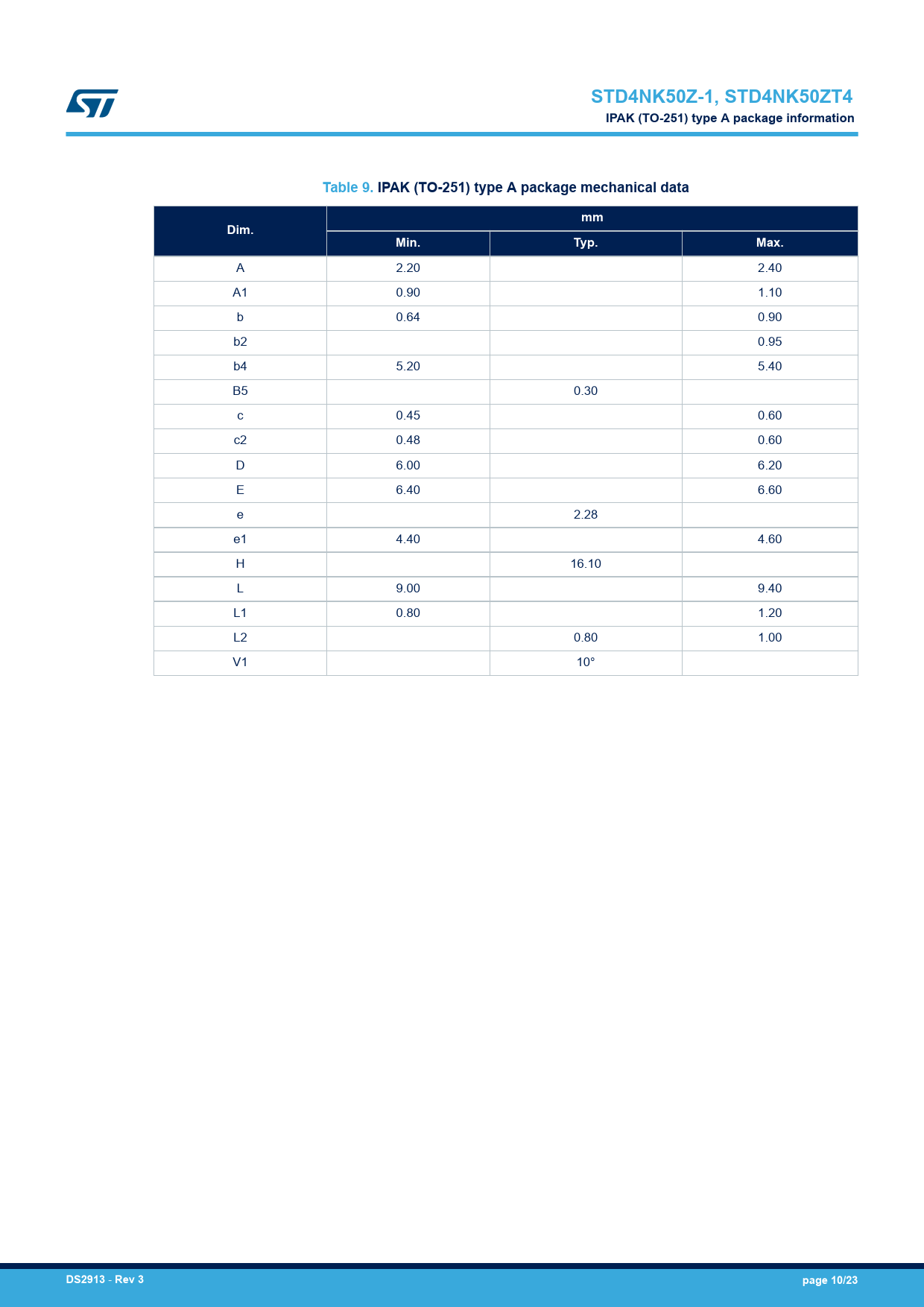

STD4NK50Z-1, STD4NK50ZT4. IPAK (TO-251) type A package information. Table 9. IPAK (TO-251) type A package mechanical data
Modelllinie für dieses Datenblatt
Textversion des Dokuments
STD4NK50Z-1, STD4NK50ZT4 IPAK (TO-251) type A package information Table 9. IPAK (TO-251) type A package mechanical data mm Dim. Min. Typ. Max.
A 2.20 2.40 A1 0.90 1.10 b 0.64 0.90 b2 0.95 b4 5.20 5.40 B5 0.30 c 0.45 0.60 c2 0.48 0.60 D 6.00 6.20 E 6.40 6.60 e 2.28 e1 4.40 4.60 H 16.10 L 9.00 9.40 L1 0.80 1.20 L2 0.80 1.00 V1 10°
DS2913
-
Rev 3 page 10/23
