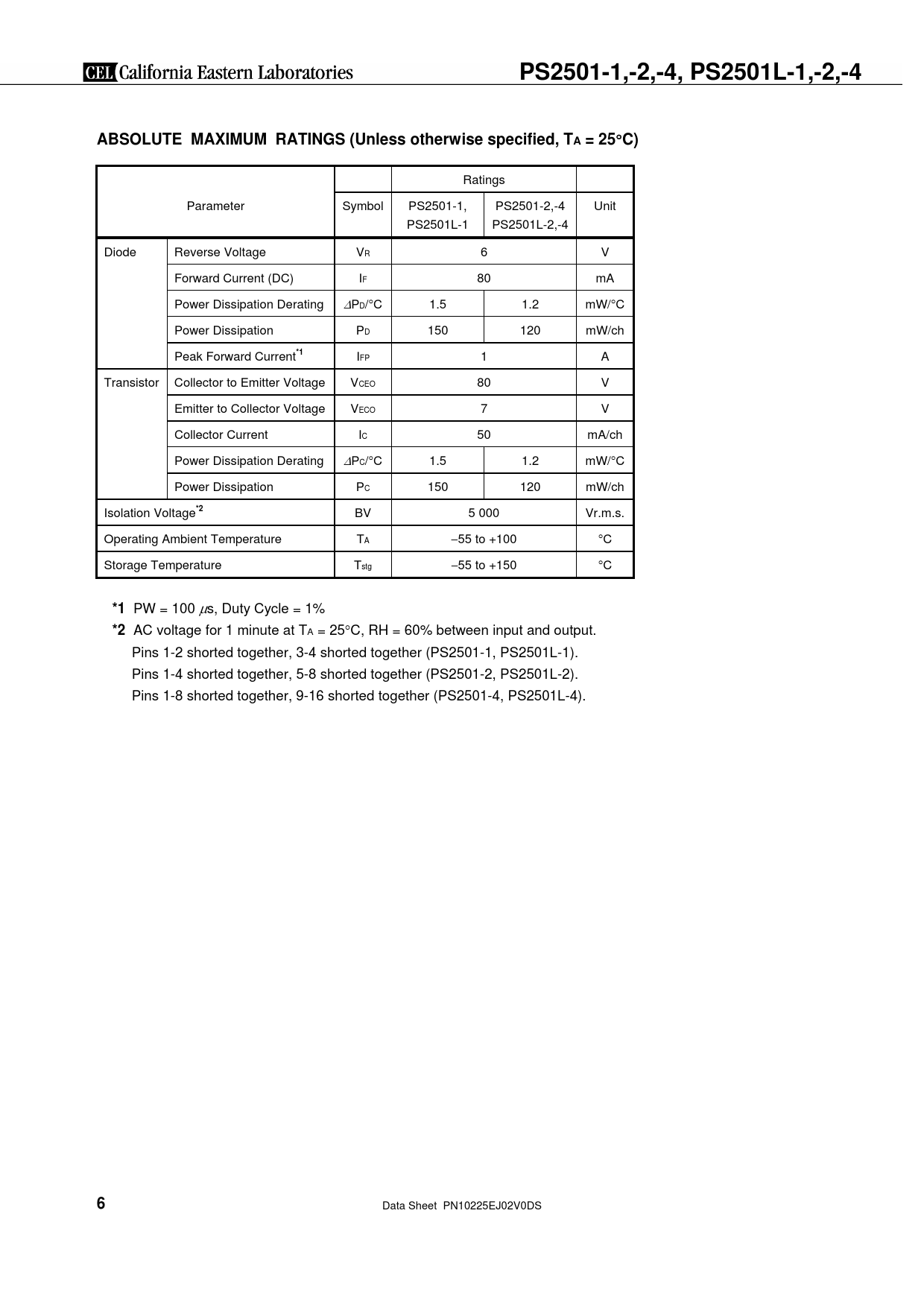

PS2501-1,-2,-4, PS2501L-1,-2,-4. ABSOLUTE MAXIMUM RATINGS (Unless otherwise specified, TA = 25
Modelllinie für dieses Datenblatt
Textversion des Dokuments
PS2501-1,-2,-4, PS2501L-1,-2,-4 ABSOLUTE MAXIMUM RATINGS (Unless otherwise specified, TA = 25
°
C)
Ratings Parameter Symbol PS2501-1, PS2501-2,-4 Unit PS2501L-1 PS2501L-2,-4 Diode Reverse Voltage VR 6 V Forward Current (DC) IF 80 mA Power Dissipation Derating ∆PD/°C 1.5 1.2 mW/°C Power Dissipation PD 150 120 mW/ch Peak Forward Current
*1
IFP 1 A Transistor Collector to Emitter Voltage VCEO 80 V Emitter to Collector Voltage VECO 7 V Collector Current IC 50 mA/ch Power Dissipation Derating ∆PC/°C 1.5 1.2 mW/°C Power Dissipation PC 150 120 mW/ch Isolation Voltage
*2
BV 5 000 Vr.m.s. Operating Ambient Temperature TA −55 to +100 °C Storage Temperature Tstg −55 to +150 °C
*1
PW = 100 µs, Duty Cycle = 1%
*2
AC voltage for 1 minute at TA = 25°C, RH = 60% between input and output. Pins 1-2 shorted together, 3-4 shorted together (PS2501-1, PS2501L-1). Pins 1-4 shorted together, 5-8 shorted together (PS2501-2, PS2501L-2). Pins 1-8 shorted together, 9-16 shorted together (PS2501-4, PS2501L-4).
6
Data Sheet PN10225EJ02V0DS
°
