Datasheet PS2501-1, PS2501-2, PS2501-4, PS2501L-1, PS2501L-2, PS2501L-4 (CEL)
| Hersteller | CEL |
| Beschreibung | High Isolation Voltage Single Transistor Type Multi Photocoupler |
| Seiten / Seite | 15 / 1 — PHOTOCOUPLER. PS2501-1,-2,-4, PS2501L-1,-2,-4. HIGH ISOLATION VOLTAGE. … |
| Dateiformat / Größe | PDF / 474 Kb |
| Dokumentensprache | Englisch |

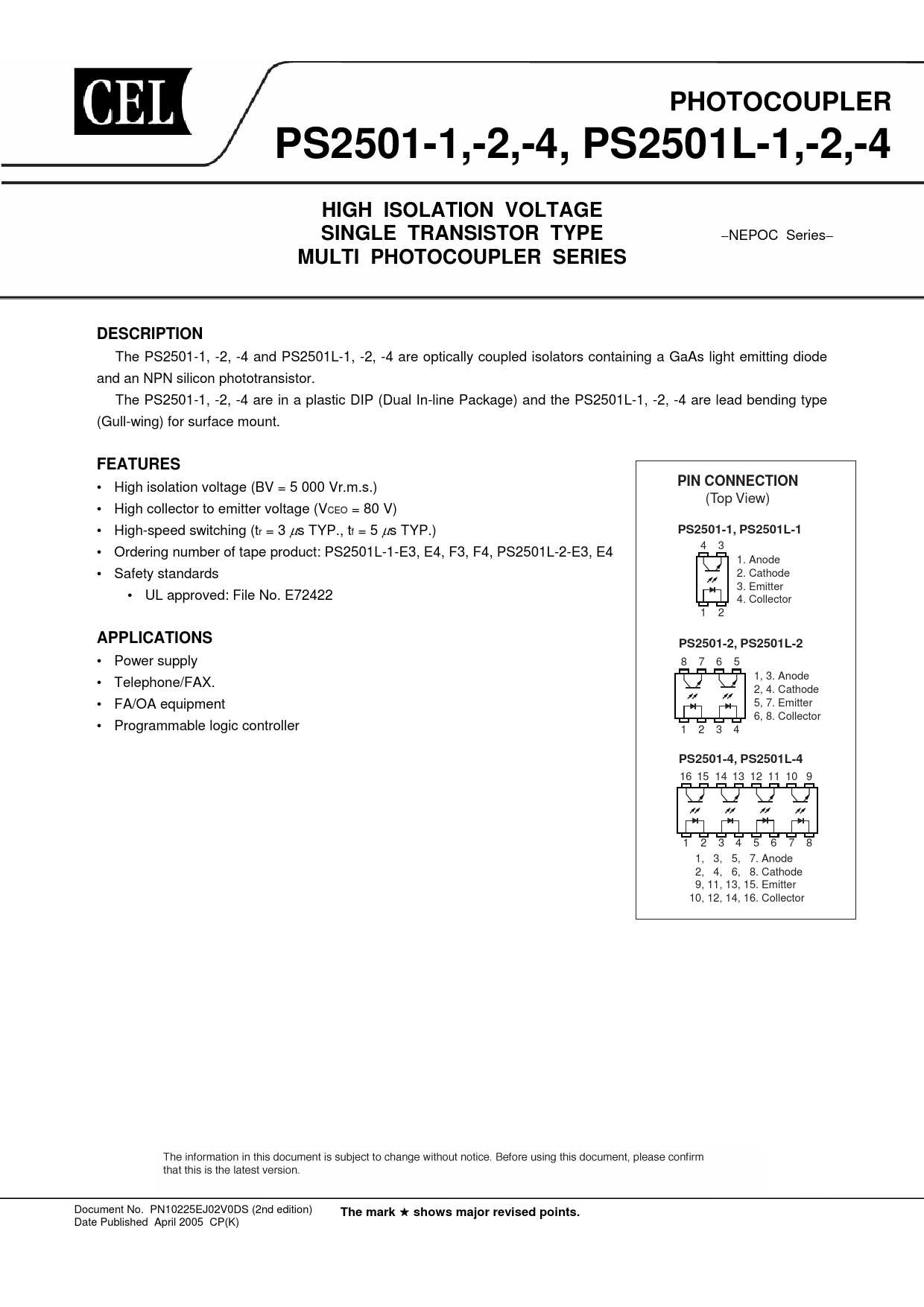

PHOTOCOUPLER. PS2501-1,-2,-4, PS2501L-1,-2,-4. HIGH ISOLATION VOLTAGE. SINGLE TRANSISTOR TYPE. MULTI PHOTOCOUPLER SERIES
Modelllinie für dieses Datenblatt
Textversion des Dokuments
PHOTOCOUPLER PS2501-1,-2,-4, PS2501L-1,-2,-4 HIGH ISOLATION VOLTAGE SINGLE TRANSISTOR TYPE
−NEPOC Series−
MULTI PHOTOCOUPLER SERIES DESCRIPTION
The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -2, -4 are lead bending type (Gull-wing) for surface mount.
FEATURES PIN CONNECTION
• High isolation voltage (BV = 5 000 Vr.m.s.) (Top View) • High collector to emitter voltage (VCEO = 80 V) • High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.)
PS2501-1, PS2501L-1
4 3 • Ordering number of tape product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4 1. Anode • Safety standards 2. Cathode 3. Emitter • UL approved: File No. E72422 4. Collector 1 2
APPLICATIONS PS2501-2, PS2501L-2
• Power supply 8 7 6 5 1, 3. Anode • Telephone/FAX. 2, 4. Cathode 5, 7. Emitter • FA/OA equipment 6, 8. Collector • Programmable logic controller 1 2 3 4
PS2501-4, PS2501L-4
16 15 14 13 12 11 10 9 1 2 3 4 5 6 7 8 1, 3, 5, 7. Anode 2, 4, 6, 8. Cathode 9, 11, 13, 15. Emitter 10, 12, 14, 16. Collector Document No. PN10225EJ02V0DS (2nd edition)
The mark
shows major revised points.
Date Published April 2005 CP(K)
−NEPOC Series−
MULTI PHOTOCOUPLER SERIES DESCRIPTION
The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -2, -4 are lead bending type (Gull-wing) for surface mount.
FEATURES PIN CONNECTION
• High isolation voltage (BV = 5 000 Vr.m.s.) (Top View) • High collector to emitter voltage (VCEO = 80 V) • High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.)
PS2501-1, PS2501L-1
4 3 • Ordering number of tape product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4 1. Anode • Safety standards 2. Cathode 3. Emitter • UL approved: File No. E72422 4. Collector 1 2
APPLICATIONS PS2501-2, PS2501L-2
• Power supply 8 7 6 5 1, 3. Anode • Telephone/FAX. 2, 4. Cathode 5, 7. Emitter • FA/OA equipment 6, 8. Collector • Programmable logic controller 1 2 3 4
PS2501-4, PS2501L-4
16 15 14 13 12 11 10 9 1 2 3 4 5 6 7 8 1, 3, 5, 7. Anode 2, 4, 6, 8. Cathode 9, 11, 13, 15. Emitter 10, 12, 14, 16. Collector Document No. PN10225EJ02V0DS (2nd edition)
The mark
shows major revised points.
Date Published April 2005 CP(K)
