link to page 21 link to page 9 Data Sheet

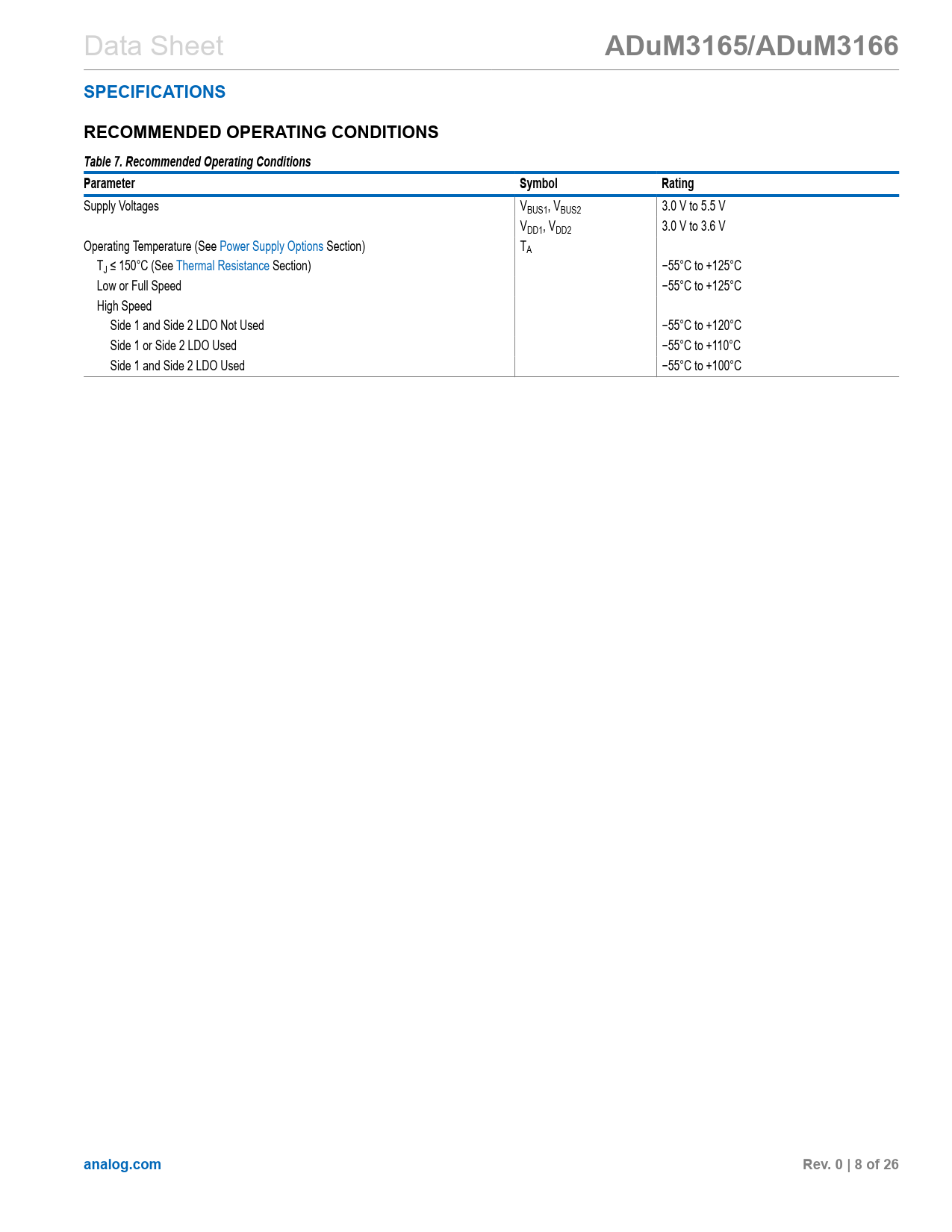

ADuM3165/ADuM3166 SPECIFICATIONS RECOMMENDED OPERATING CONDITIONS Table 7. Recommended Operating Conditions Parameter Symbol Rating
Supply Voltages VBUS1, VBUS2 3.0 V to 5.5 V VDD1, VDD2 3.0 V to 3.6 V Operating Temperature (See Power Supply Options Section) TA TJ ≤ 150°C (See Thermal Resistance Section) −55°C to +125°C Low or Full Speed −55°C to +125°C High Speed Side 1 and Side 2 LDO Not Used −55°C to +120°C Side 1 or Side 2 LDO Used −55°C to +110°C Side 1 and Side 2 LDO Used −55°C to +100°C
analog.com Rev. 0 | 8 of 26
