link to page 7 link to page 7 Data Sheet

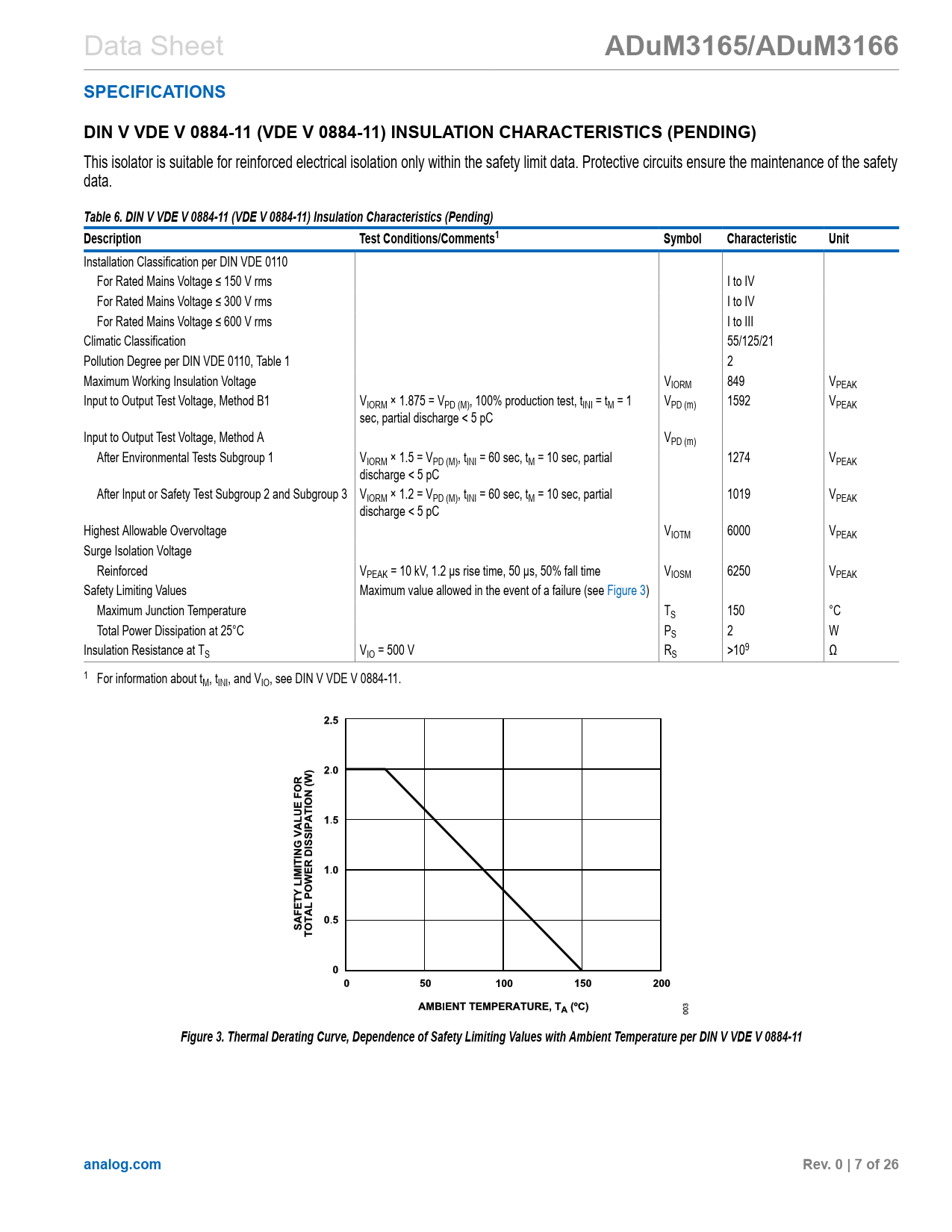

ADuM3165/ADuM3166 SPECIFICATIONS DIN V VDE V 0884-11 (VDE V 0884-11) INSULATION CHARACTERISTICS (PENDING)
This isolator is suitable for reinforced electrical isolation only within the safety limit data. Protective circuits ensure the maintenance of the safety data.
Table 6. DIN V VDE V 0884-11 (VDE V 0884-11) Insulation Characteristics (Pending) Description Test Conditions/Comments1 Symbol Characteristic Unit
Installation Classification per DIN VDE 0110 For Rated Mains Voltage ≤ 150 V rms I to IV For Rated Mains Voltage ≤ 300 V rms I to IV For Rated Mains Voltage ≤ 600 V rms I to III Climatic Classification 55/125/21 Pollution Degree per DIN VDE 0110, Table 1 2 Maximum Working Insulation Voltage VIORM 849 VPEAK Input to Output Test Voltage, Method B1 VIORM × 1.875 = VPD (M), 100% production test, tINI = tM = 1 VPD (m) 1592 VPEAK sec, partial discharge < 5 pC Input to Output Test Voltage, Method A VPD (m) After Environmental Tests Subgroup 1 VIORM × 1.5 = VPD (M), tINI = 60 sec, tM = 10 sec, partial 1274 VPEAK discharge < 5 pC After Input or Safety Test Subgroup 2 and Subgroup 3 VIORM × 1.2 = VPD (M), tINI = 60 sec, tM = 10 sec, partial 1019 VPEAK discharge < 5 pC Highest Allowable Overvoltage VIOTM 6000 VPEAK Surge Isolation Voltage Reinforced VPEAK = 10 kV, 1.2 µs rise time, 50 µs, 50% fall time VIOSM 6250 VPEAK Safety Limiting Values Maximum value allowed in the event of a failure (see Figure 3) Maximum Junction Temperature TS 150 °C Total Power Dissipation at 25°C PS 2 W Insulation Resistance at TS VIO = 500 V RS >109 Ω 1 For information about tM, tINI, and VIO, see DIN V VDE V 0884-11.
Figure 3. Thermal Derating Curve, Dependence of Safety Limiting Values with Ambient Temperature per DIN V VDE V 0884-11 analog.com Rev. 0 | 7 of 26
