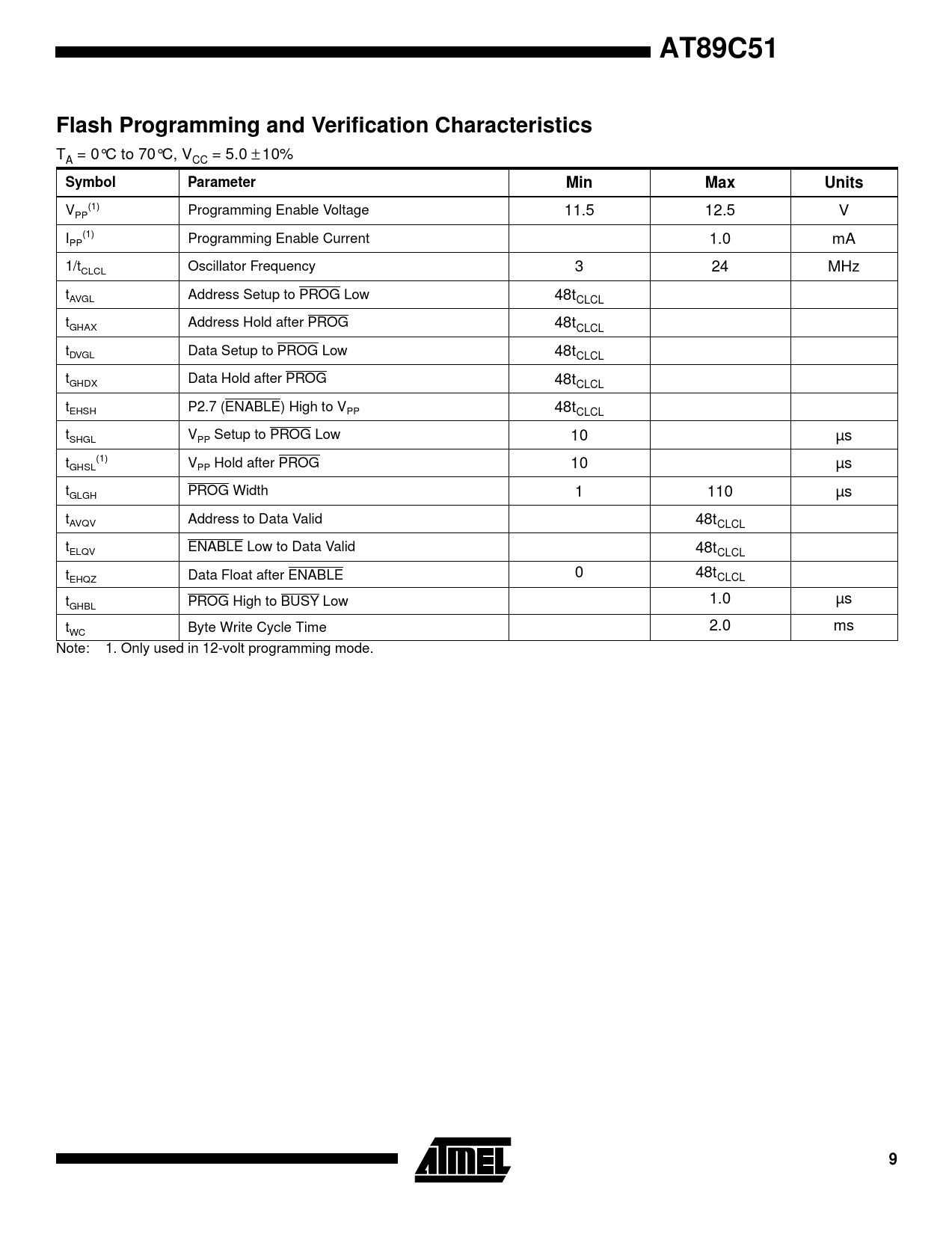

AT89C51 Flash Programming and Verification Characteristics
T = 0°C to 70°C, V = 5.0 ± 10% A CC
Symbol Parameter Min Max Units
V (1) Programming Enable Voltage PP 11.5 12.5 V I (1) Programming Enable Current PP 1.0 mA 1/t Oscillator Frequency CLCL 3 24 MHz t Address Setup to PROG Low AVGL 48tCLCL t Address Hold after PROG GHAX 48tCLCL t Data Setup to PROG Low DVGL 48tCLCL t Data Hold after PROG GHDX 48tCLCL t P2.7 (ENABLE) High to V EHSH PP 48tCLCL t V Setup to PROG Low SHGL PP 10 µs t (1) V Hold after PROG GHSL PP 10 µs t PROG Width GLGH 1 110 µs t Address to Data Valid AVQV 48tCLCL t ENABLE Low to Data Valid ELQV 48tCLCL t Data Float after ENABLE 0 48t EHQZ CLCL tGHBL PROG High to BUSY Low 1.0 µs t Byte Write Cycle Time 2.0 ms WC Note: 1. Only used in 12-volt programming mode.
9
