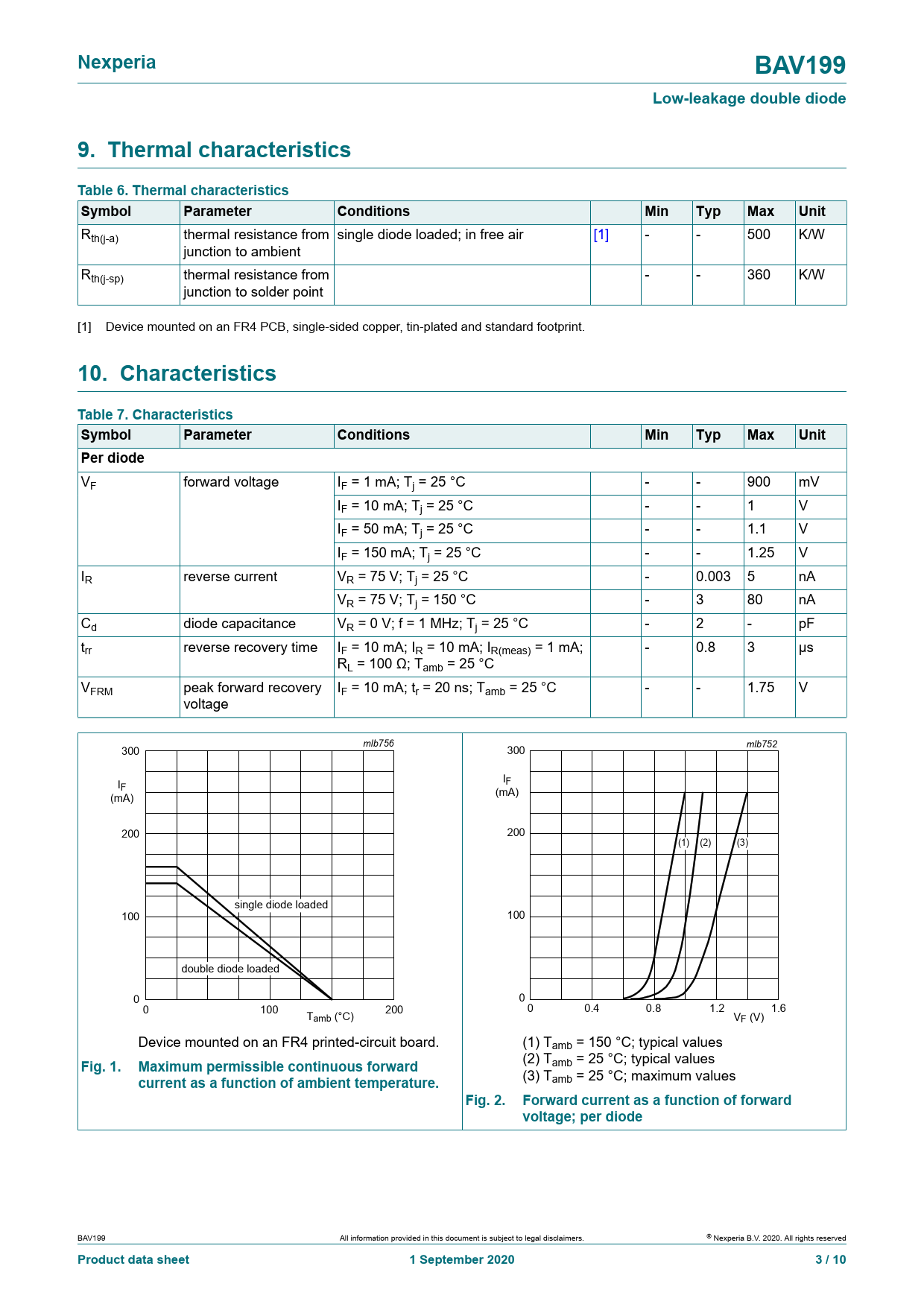

Nexperia BAV199 Low-leakage double diode 9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from single diode loaded; in free air [1] - - 500 K/W junction to ambient Rth(j-sp) thermal resistance from - - 360 K/W junction to solder point [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Per diode
VF forward voltage IF = 1 mA; Tj = 25 °C - - 900 mV IF = 10 mA; Tj = 25 °C - - 1 V IF = 50 mA; Tj = 25 °C - - 1.1 V IF = 150 mA; Tj = 25 °C - - 1.25 V IR reverse current VR = 75 V; Tj = 25 °C - 0.003 5 nA VR = 75 V; Tj = 150 °C - 3 80 nA Cd diode capacitance VR = 0 V; f = 1 MHz; Tj = 25 °C - 2 - pF trr reverse recovery time IF = 10 mA; IR = 10 mA; IR(meas) = 1 mA; - 0.8 3 µs RL = 100 Ω; Tamb = 25 °C VFRM peak forward recovery IF = 10 mA; tr = 20 ns; Tamb = 25 °C - - 1.75 V voltage 300 mlb756 mlb752 300 I I F F (mA) (mA) 200 200 (1) (2) (3) single diode loaded 100 100 double diode loaded 0 0 0 100 200 0 0.4 0.8 1.2 1.6 Tamb (°C) VF (V) Device mounted on an FR4 printed-circuit board. (1) Tamb = 150 °C; typical values
Fig. 1. Maximum permissible continuous forward
(2) Tamb = 25 °C; typical values
current as a function of ambient temperature.
(3) Tamb = 25 °C; maximum values
Fig. 2. Forward current as a function of forward voltage; per diode
BAV199 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 1 September 2020 3 / 10
