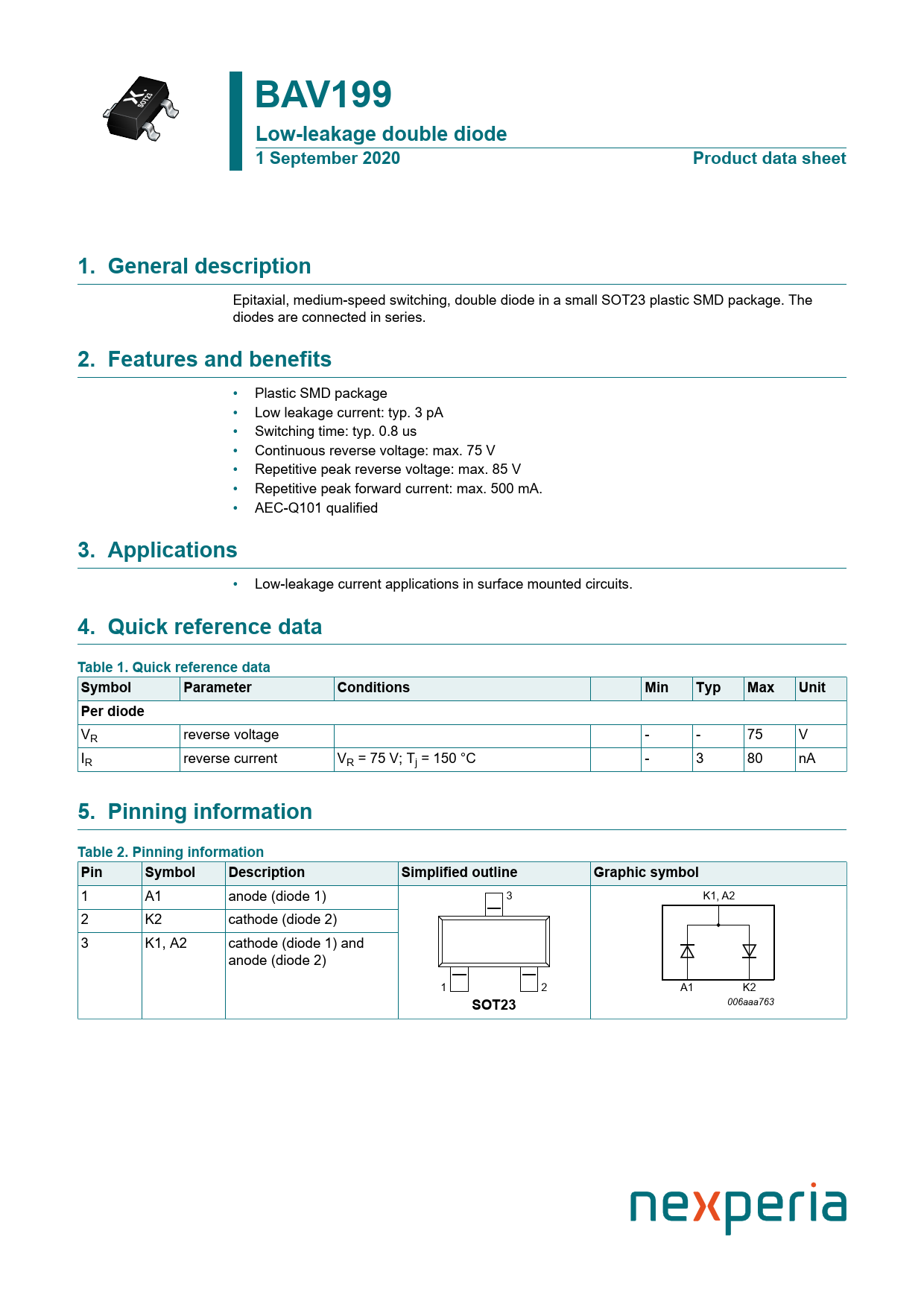

BAV199 Low-leakage double diode 1 September 2020 Product data sheet 1. General description
Epitaxial, medium-speed switching, double diode in a small SOT23 plastic SMD package. The diodes are connected in series.
2. Features and benefits
• Plastic SMD package • Low leakage current: typ. 3 pA • Switching time: typ. 0.8 us • Continuous reverse voltage: max. 75 V • Repetitive peak reverse voltage: max. 85 V • Repetitive peak forward current: max. 500 mA. • AEC-Q101 qualified
3. Applications
• Low-leakage current applications in surface mounted circuits.
4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per diode
VR reverse voltage - - 75 V IR reverse current VR = 75 V; Tj = 150 °C - 3 80 nA
5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 A1 anode (diode 1) 3 K1, A2 2 K2 cathode (diode 2) 3 K1, A2 cathode (diode 1) and anode (diode 2) 1 2 A1 K2
SOT23
