Datasheet ADG1208, ADG1209 (Analog Devices) - 10
| Hersteller | Analog Devices |
| Beschreibung | Low Capacitance, 4-/8-Channel, ±15 V/+12 V iCMOS Multiplexers |
| Seiten / Seite | 21 / 10 — ADG1208/ADG1209. Data Sheet. A0 1. 16 A1. EN 2. 15 GND. VSS 3. 14 VDD. … |
| Revision | E |
| Dateiformat / Größe | PDF / 415 Kb |
| Dokumentensprache | Englisch |
ADG1208/ADG1209. Data Sheet. A0 1. 16 A1. EN 2. 15 GND. VSS 3. 14 VDD. ADG1209. VDD. S1A 4. 13 S1B. TOP VIEW. (Not to Scale). S2A 5. 12 S2B. S3A 6
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADG1208/ADG1209 Data Sheet A0 1 16 A1 A0 1 16 A1 EN 2 15 GND EN 2 15 GND VSS 3 14 VDD V 3 14 ADG1209 SS VDD ADG1209 S1A 4 13 S1B TOP VIEW S1A 4 TOP VIEW 13 S1B (Not to Scale) (Not to Scale) S2A 5 12 S2B S2A 5 12 S2B S3A 6 11 S3B S3A 6 11 S3B S4A 7 10 S4B
-007
S4A 7 10 S4B DA 8 9 DB
5713 0
DA 8 9 DB

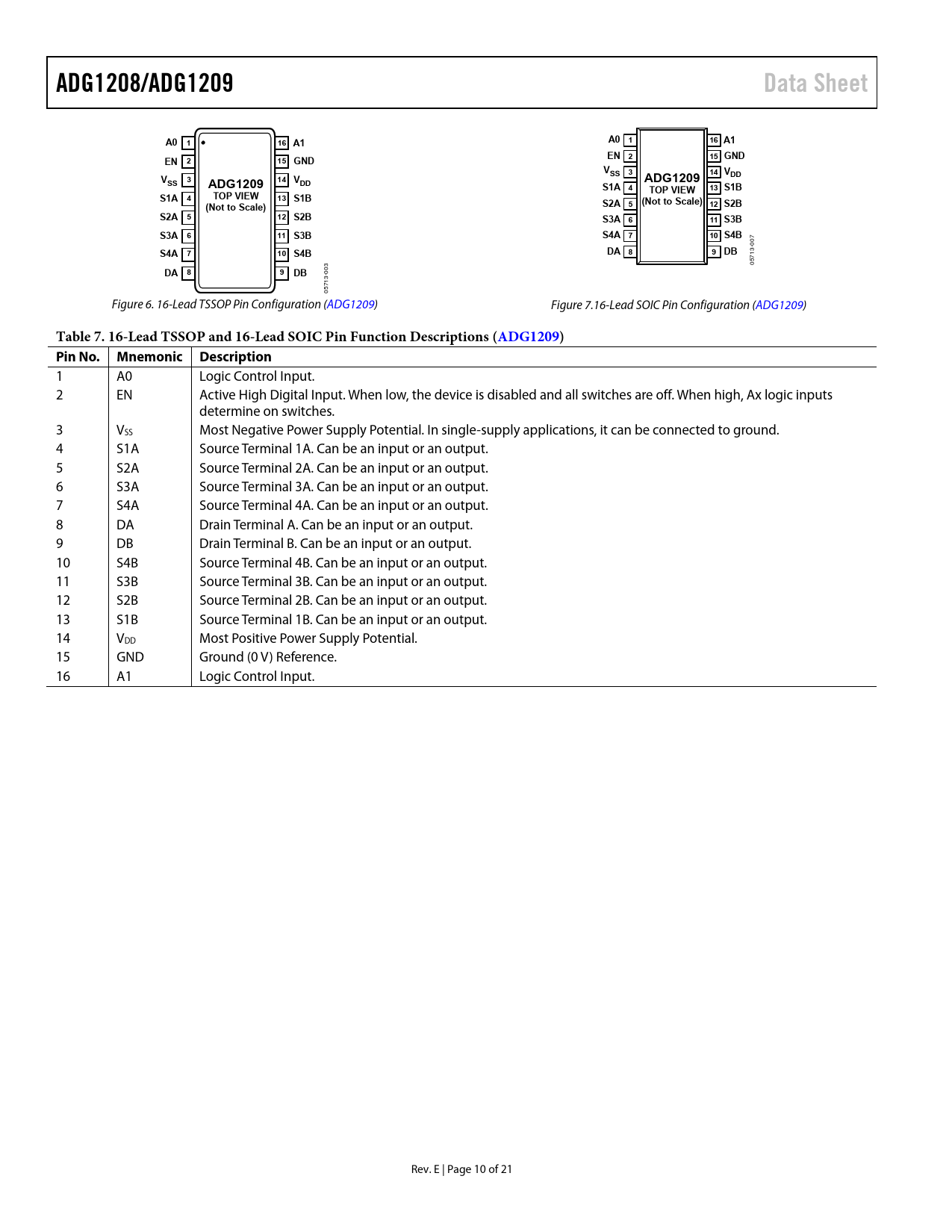

03 -0 13 57 0 Figure 6. 16-Lead TSSOP Pin Configuration (ADG1209) Figure 7.16-Lead SOIC Pin Configuration (ADG1209)
Table 7. 16-Lead TSSOP and 16-Lead SOIC Pin Function Descriptions (ADG1209) Pin No. Mnemonic Description
1 A0 Logic Control Input. 2 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determine on switches. 3 VSS Most Negative Power Supply Potential. In single-supply applications, it can be connected to ground. 4 S1A Source Terminal 1A. Can be an input or an output. 5 S2A Source Terminal 2A. Can be an input or an output. 6 S3A Source Terminal 3A. Can be an input or an output. 7 S4A Source Terminal 4A. Can be an input or an output. 8 DA Drain Terminal A. Can be an input or an output. 9 DB Drain Terminal B. Can be an input or an output. 10 S4B Source Terminal 4B. Can be an input or an output. 11 S3B Source Terminal 3B. Can be an input or an output. 12 S2B Source Terminal 2B. Can be an input or an output. 13 S1B Source Terminal 1B. Can be an input or an output. 14 VDD Most Positive Power Supply Potential. 15 GND Ground (0 V) Reference. 16 A1 Logic Control Input. Rev. E | Page 10 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
