Datasheet ADG1208, ADG1209 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | Low Capacitance, 4-/8-Channel, ±15 V/+12 V iCMOS Multiplexers |
| Seiten / Seite | 21 / 7 — Data Sheet. ADG1208/ADG1209. ABSOLUTE MAXIMUM RATINGS. Table 3. … |
| Revision | E |
| Dateiformat / Größe | PDF / 415 Kb |
| Dokumentensprache | Englisch |

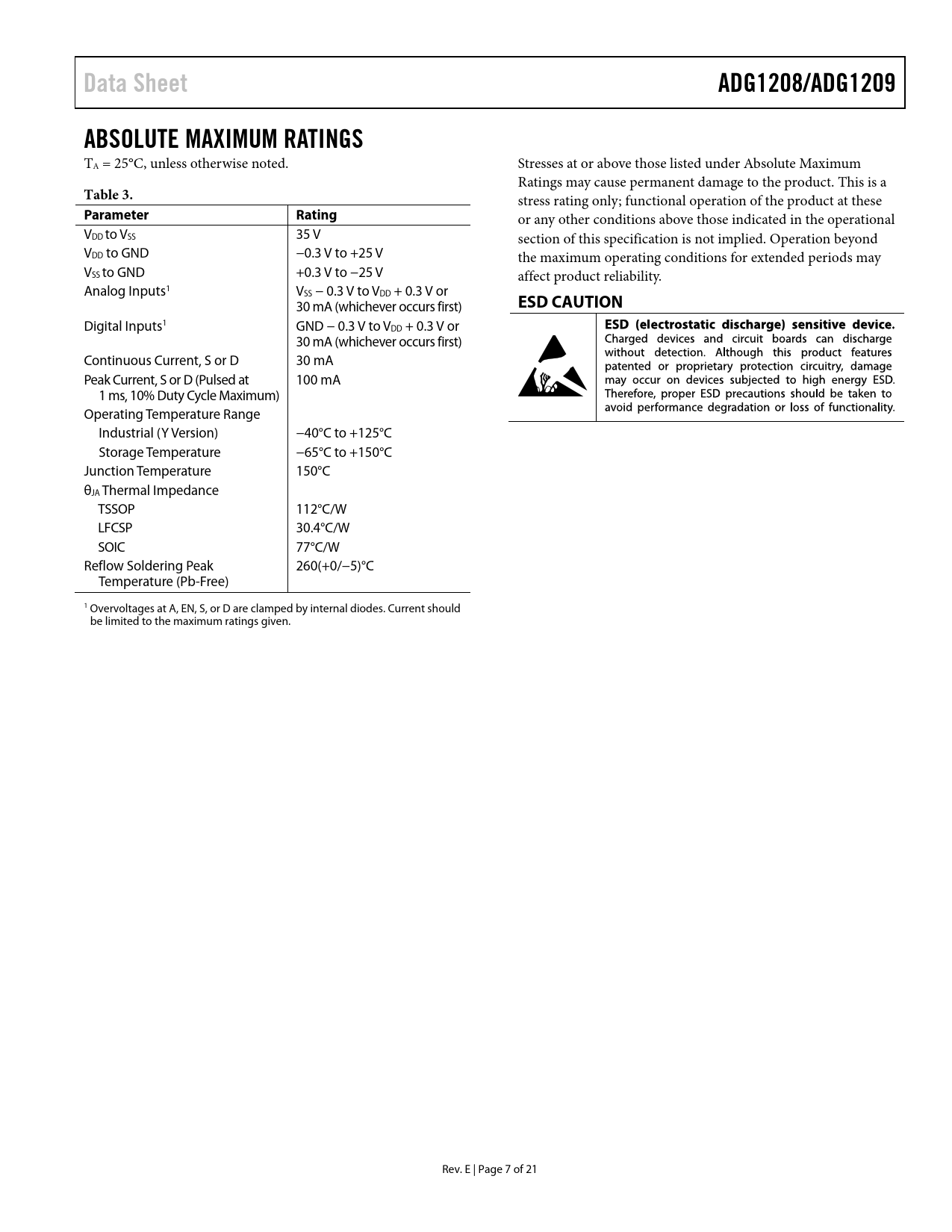

Data Sheet. ADG1208/ADG1209. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet ADG1208/ADG1209 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 3.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to VSS 35 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +25 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −25 V affect product reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA (whichever occurs first)
ESD CAUTION
Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or 30 mA (whichever occurs first) Continuous Current, S or D 30 mA Peak Current, S or D (Pulsed at 100 mA 1 ms, 10% Duty Cycle Maximum) Operating Temperature Range Industrial (Y Version) −40°C to +125°C Storage Temperature −65°C to +150°C Junction Temperature 150°C θ JA Thermal Impedance TSSOP 112°C/W LFCSP 30.4°C/W SOIC 77°C/W Reflow Soldering Peak 260(+0/−5)°C Temperature (Pb-Free) 1 Overvoltages at A, EN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. E | Page 7 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
