Datasheet ADG1206, ADG1207 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | Low Capacitance, 16-and 8-Channel, ±15 V/+12 V iCMOS Multiplexers |
| Seiten / Seite | 20 / 6 — ADG1206/ADG1207. Data Sheet. −40°C to. Parameter +25°C. +85°C. +125°C … |
| Revision | C |
| Dateiformat / Größe | PDF / 386 Kb |
| Dokumentensprache | Englisch |

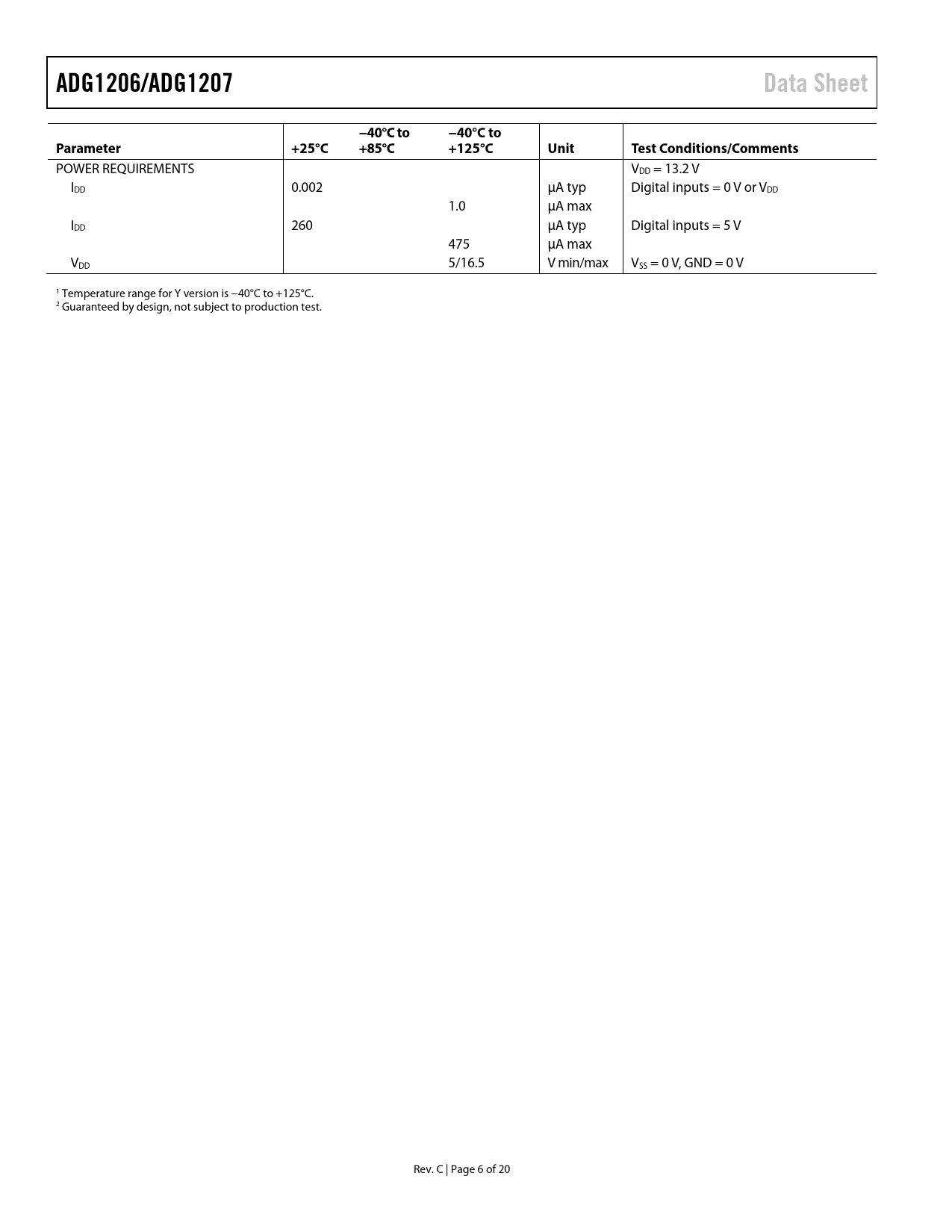

ADG1206/ADG1207. Data Sheet. −40°C to. Parameter +25°C. +85°C. +125°C Unit Test. Conditions/Comments
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADG1206/ADG1207 Data Sheet −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = 13.2 V IDD 0.002 μA typ Digital inputs = 0 V or VDD 1.0 μA max IDD 260 μA typ Digital inputs = 5 V 475 μA max VDD 5/16.5 V min/max VSS = 0 V, GND = 0 V 1 Temperature range for Y version is −40°C to +125°C. 2 Guaranteed by design, not subject to production test. Rev. C | Page 6 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
