Datasheet ADG1201 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | Low Capacitance, Low Charge Injection, ±15 V/+12 V iCMOS SPST in SOT-23 |
| Seiten / Seite | 14 / 7 — Data Sheet. ADG1201. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD 1. … |
| Revision | A |
| Dateiformat / Größe | PDF / 418 Kb |
| Dokumentensprache | Englisch |

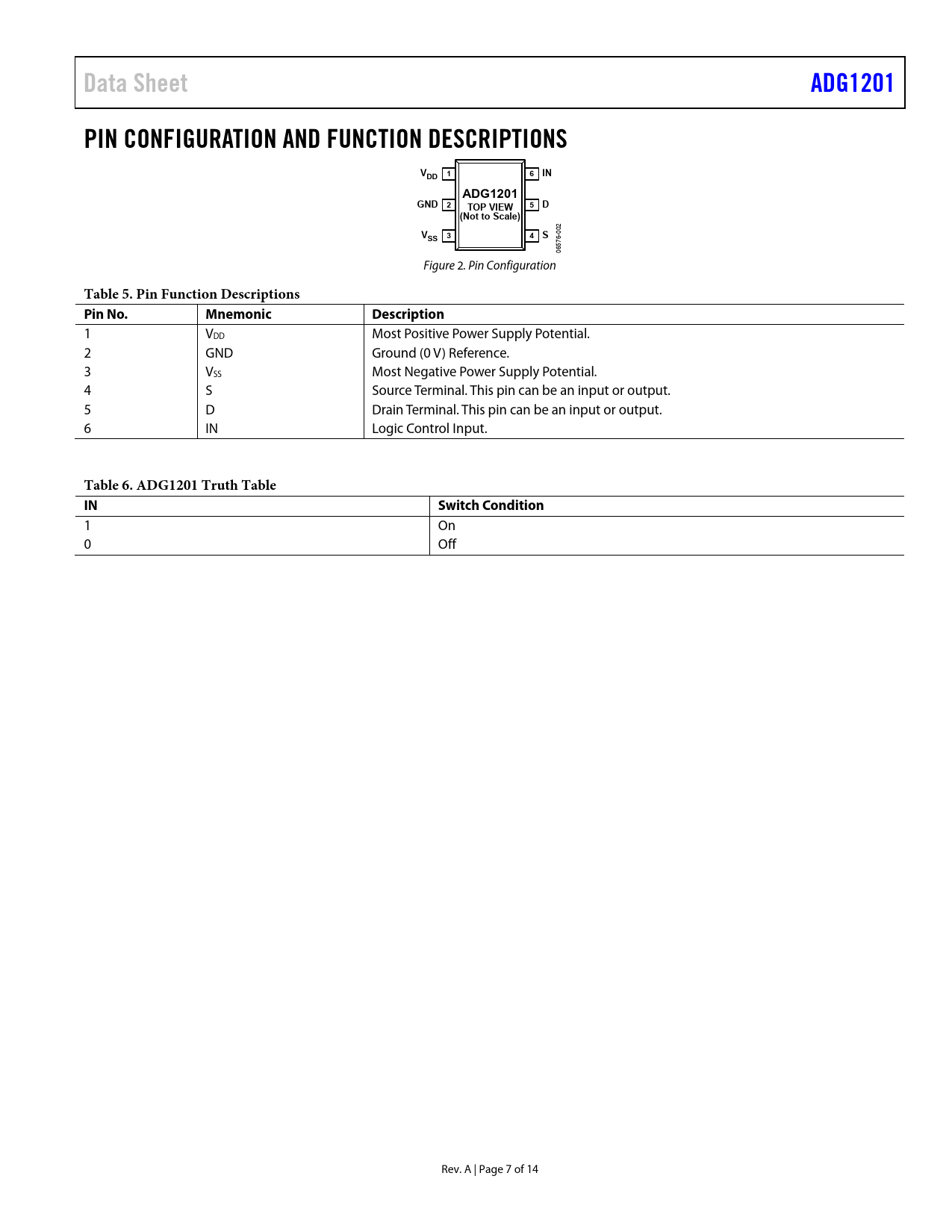

Data Sheet. ADG1201. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD 1. 6 IN. GND 2. 5 D. TOP VIEW. (Not to Scale). 4 S
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet ADG1201 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS VDD 1 6 IN ADG1201 GND 2 5 D TOP VIEW (Not to Scale)
2 00
V 4 S
6-
SS 3
57 06 Figure 2. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 VDD Most Positive Power Supply Potential. 2 GND Ground (0 V) Reference. 3 VSS Most Negative Power Supply Potential. 4 S Source Terminal. This pin can be an input or output. 5 D Drain Terminal. This pin can be an input or output. 6 IN Logic Control Input.
Table 6. ADG1201 Truth Table IN Switch Condition
1 On 0 Off Rev. A | Page 7 of 14 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Outline Dimensions Ordering Guide
