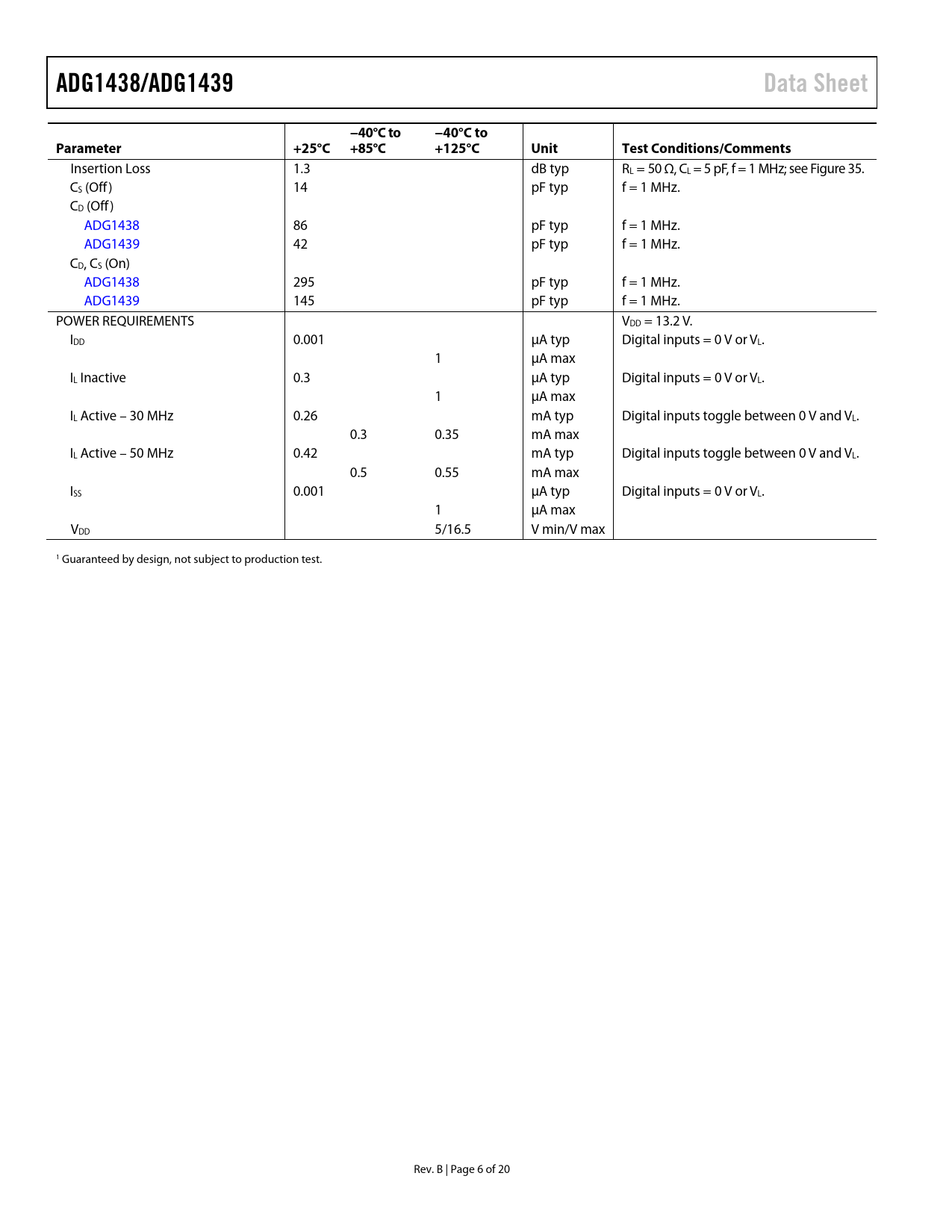

ADG1438/ADG1439 Data Sheet −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
Insertion Loss 1.3 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 35. CS (Off) 14 pF typ f = 1 MHz. CD (Off) ADG1438 86 pF typ f = 1 MHz. ADG1439 42 pF typ f = 1 MHz. CD, CS (On) ADG1438 295 pF typ f = 1 MHz. ADG1439 145 pF typ f = 1 MHz. POWER REQUIREMENTS VDD = 13.2 V. IDD 0.001 µA typ Digital inputs = 0 V or VL. 1 µA max IL Inactive 0.3 µA typ Digital inputs = 0 V or VL. 1 µA max IL Active – 30 MHz 0.26 mA typ Digital inputs toggle between 0 V and VL. 0.3 0.35 mA max IL Active – 50 MHz 0.42 mA typ Digital inputs toggle between 0 V and VL. 0.5 0.55 mA max ISS 0.001 µA typ Digital inputs = 0 V or VL. 1 µA max VDD 5/16.5 V min/V max 1 Guaranteed by design, not subject to production test. Rev. B | Page 6 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY 12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL TIMING CHARACTERISTICS TIMING DIAGRAM ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SERIAL INTERFACE INPUT SHIFT REGISTER POWER-ON RESET DAISY-CHAINING OUTLINE DIMENSIONS ORDERING GUIDE
