ADG1438/ADG1439. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 8. Parameter. Rating. THERMAL RESISTANCE. Table 9. Thermal Resistance
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 8 link to page 8

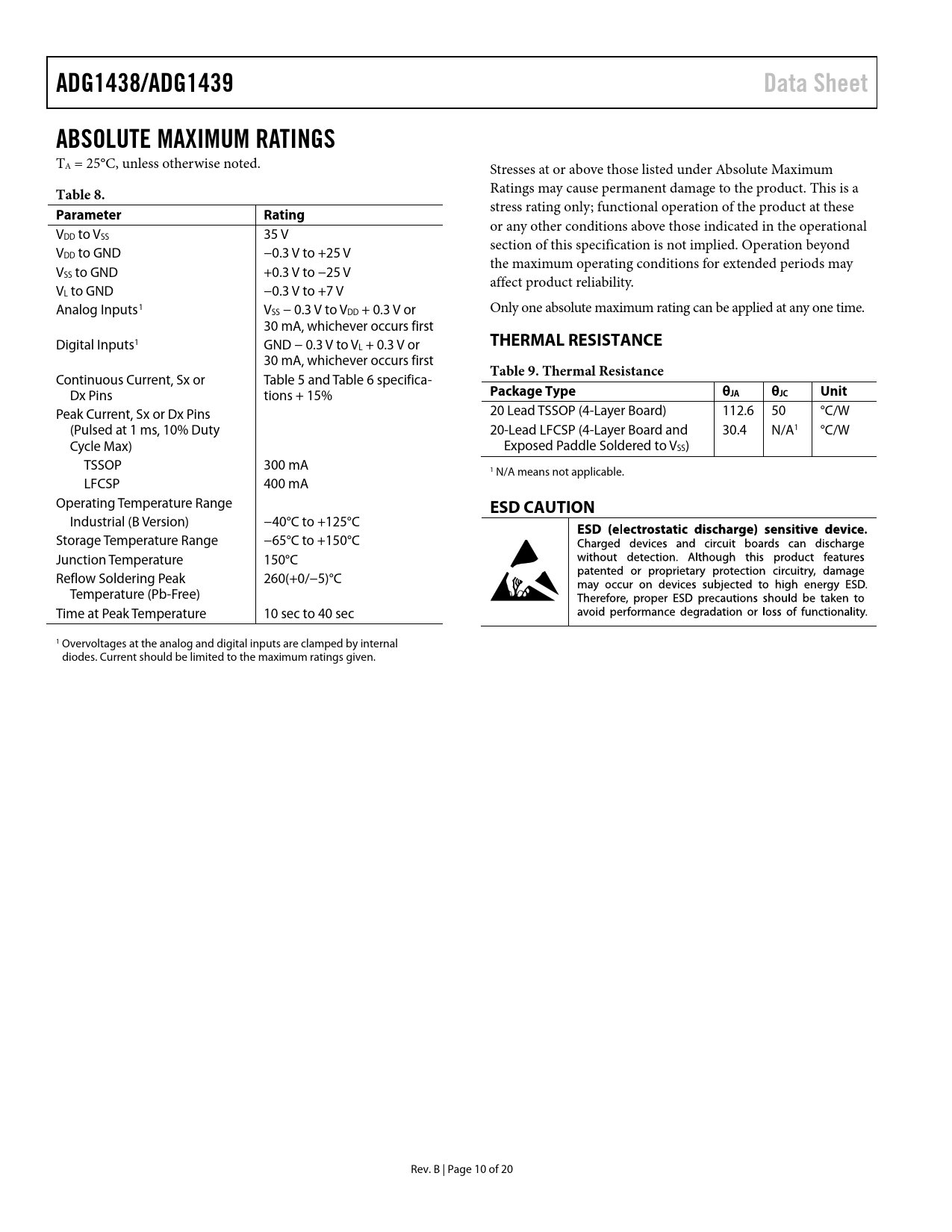

ADG1438/ADG1439 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 8.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to VSS 35 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +25 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −25 V affect product reliability. VL to GND −0.3 V to +7 V Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or Only one absolute maximum rating can be applied at any one time. 30 mA, whichever occurs first Digital Inputs1 GND − 0.3 V to V
THERMAL RESISTANCE
L + 0.3 V or 30 mA, whichever occurs first
Table 9. Thermal Resistance
Continuous Current, Sx or Table 5 and Table 6 specifica- Dx Pins tions + 15%
Package Type θJA θJC Unit
Peak Current, Sx or Dx Pins 20 Lead TSSOP (4-Layer Board) 112.6 50 °C/W (Pulsed at 1 ms, 10% Duty 20-Lead LFCSP (4-Layer Board and 30.4 N/A1 °C/W Cycle Max) Exposed Paddle Soldered to VSS) TSSOP 300 mA 1 N/A means not applicable. LFCSP 400 mA Operating Temperature Range
