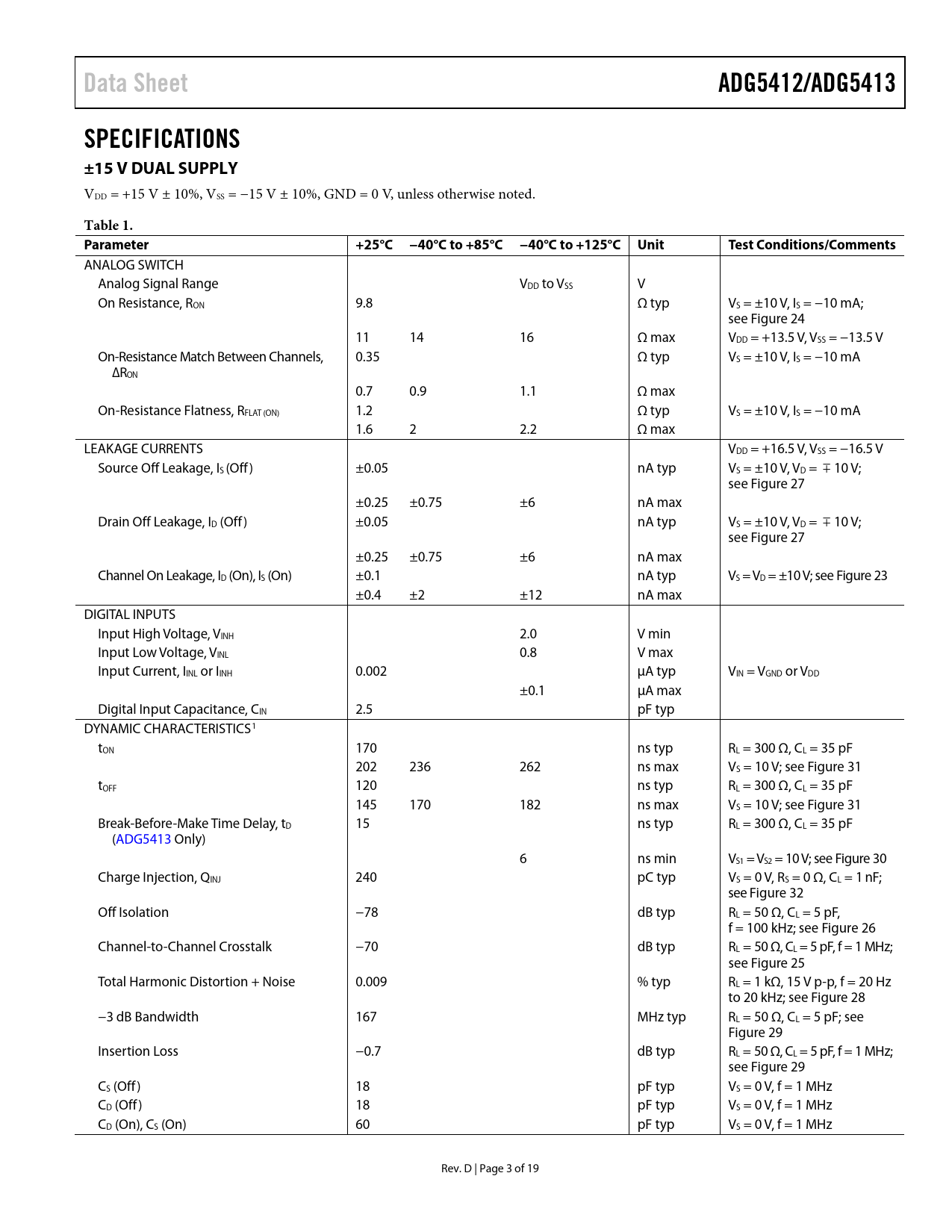

Data Sheet. ADG5412/ADG5413. SPECIFICATIONS ±15 V DUAL SUPPLY. Table 1. Parameter. +25°C −40°C to +85°C −40°C to +125°C Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 15 link to page 15 link to page 15 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 4
Data Sheet ADG5412/ADG5413 SPECIFICATIONS ±15 V DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance, RON 9.8 Ω typ VS = ±10 V, IS = −10 mA; see Figure 24 11 14 16 Ω max VDD = +13.5 V, VSS = −13.5 V On-Resistance Match Between Channels, 0.35 Ω typ VS = ±10 V, IS = −10 mA ∆RON 0.7 0.9 1.1 Ω max On-Resistance Flatness, RFLAT (ON) 1.2 Ω typ VS = ±10 V, IS = −10 mA 1.6 2 2.2 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.05 nA typ VS = ±10 V, VD = 10 V; see Figure 27 ±0.25 ±0.75 ±6 nA max Drain Off Leakage, ID (Off) ±0.05 nA typ VS = ±10 V, VD = 10 V; see Figure 27 ±0.25 ±0.75 ±6 nA max Channel On Leakage, ID (On), IS (On) ±0.1 nA typ VS = VD = ±10 V; see Figure 23 ±0.4 ±2 ±12 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 2.5 pF typ DYNAMIC CHARACTERISTICS1 tON 170 ns typ RL = 300 Ω, CL = 35 pF 202 236 262 ns max VS = 10 V; see Figure 31 tOFF 120 ns typ RL = 300 Ω, CL = 35 pF 145 170 182 ns max VS = 10 V; see Figure 31 Break-Before-Make Time Delay, tD 15 ns typ RL = 300 Ω, CL = 35 pF (ADG5413 Only) 6 ns min VS1 = VS2 = 10 V; see Figure 30 Charge Injection, QINJ 240 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation −78 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 26 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 Total Harmonic Distortion + Noise 0.009 % typ RL = 1 kΩ, 15 V p-p, f = 20 Hz to 20 kHz; see Figure 28 −3 dB Bandwidth 167 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 Insertion Loss −0.7 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 CS (Off) 18 pF typ VS = 0 V, f = 1 MHz CD (Off) 18 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) 60 pF typ VS = 0 V, f = 1 MHz Rev. D | Page 3 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADG5412/ADG5413 SPECIFICATIONS ±15 V DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
