Datasheet ADG5401F (Analog Devices) - 9

HerstellerAnalog Devices
BeschreibungFault Protection, 6 Ω RON, SPST Switch with 0.6 kΩ Feedback Channel
Seiten / Seite32 / 9 — Data Sheet. ADG5401F. 12 V SINGLE SUPPLY. Table 4. Parameter. +25°C. …
Dateiformat / GrößePDF / 573 Kb
DokumentenspracheEnglisch

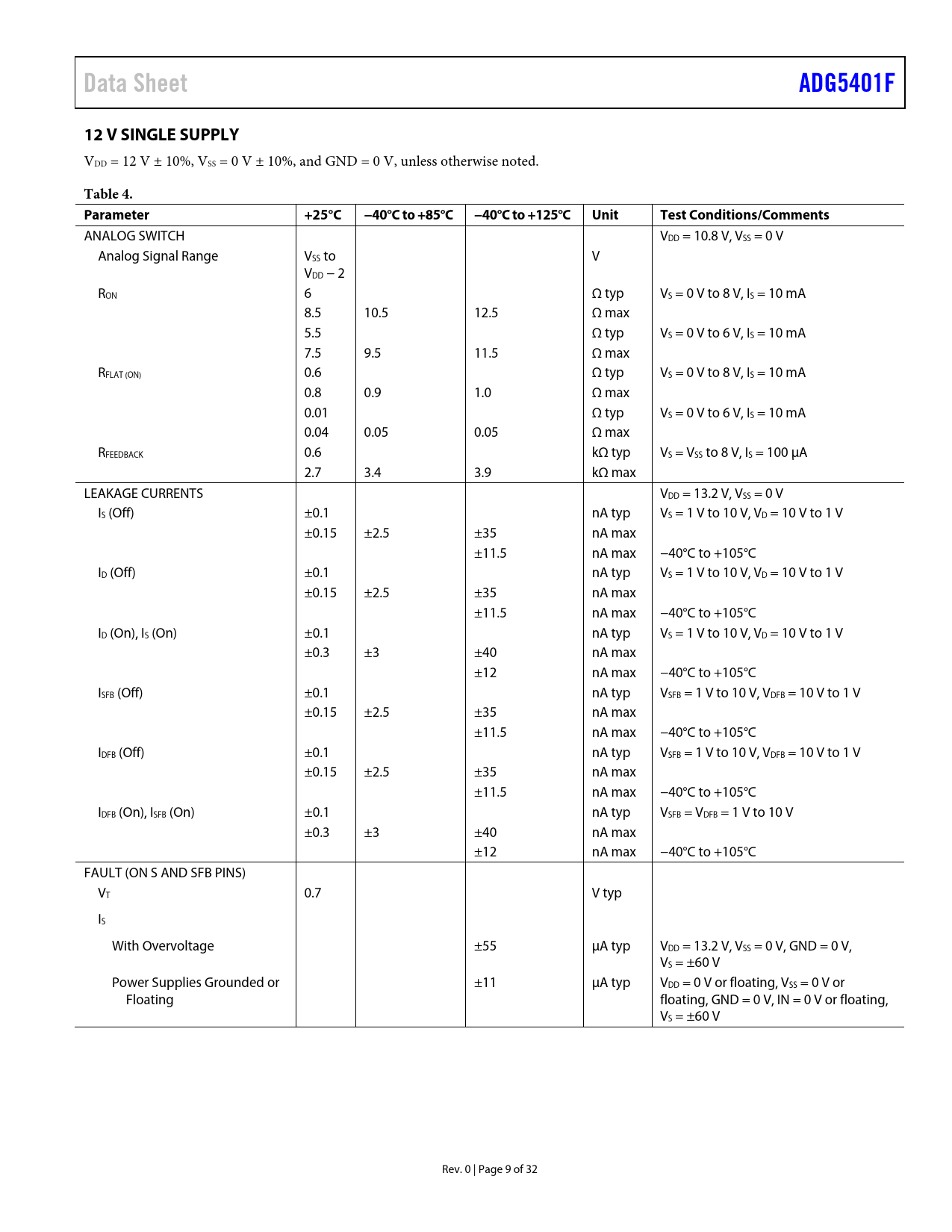

Data Sheet. ADG5401F. 12 V SINGLE SUPPLY. Table 4. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments

Data Sheet ADG5401F 12 V SINGLE SUPPLY Table 4 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Data Sheet ADG5401F 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V ± 10%, and GND = 0 V, unless otherwise noted.
Table 4. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = 10.8 V, VSS = 0 V Analog Signal Range VSS to V VDD − 2 RON 6 Ω typ VS = 0 V to 8 V, IS = 10 mA 8.5 10.5 12.5 Ω max 5.5 Ω typ VS = 0 V to 6 V, IS = 10 mA 7.5 9.5 11.5 Ω max RFLAT (ON) 0.6 Ω typ VS = 0 V to 8 V, IS = 10 mA 0.8 0.9 1.0 Ω max 0.01 Ω typ VS = 0 V to 6 V, IS = 10 mA 0.04 0.05 0.05 Ω max RFEEDBACK 0.6 kΩ typ VS = VSS to 8 V, IS = 100 µA 2.7 3.4 3.9 kΩ max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V IS (Off) ±0.1 nA typ VS = 1 V to 10 V, VD = 10 V to 1 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C ID (Off) ±0.1 nA typ VS = 1 V to 10 V, VD = 10 V to 1 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C ID (On), IS (On) ±0.1 nA typ VS = 1 V to 10 V, VD = 10 V to 1 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C ISFB (Off) ±0.1 nA typ VSFB = 1 V to 10 V, VDFB = 10 V to 1 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C IDFB (Off) ±0.1 nA typ VSFB = 1 V to 10 V, VDFB = 10 V to 1 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C IDFB (On), ISFB (On) ±0.1 nA typ VSFB = VDFB = 1 V to 10 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C FAULT (ON S AND SFB PINS) VT 0.7 V typ IS With Overvoltage ±55 µA typ VDD = 13.2 V, VSS = 0 V, GND = 0 V, VS = ±60 V Power Supplies Grounded or ±11 µA typ VDD = 0 V or floating, VSS = 0 V or Floating floating, GND = 0 V, IN = 0 V or floating, VS = ±60 V Rev. 0 | Page 9 of 32 Document Outline FEATURES APPLICATIONS COMPANION PRODUCTS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADG5401F ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation OVERVOLTAGE FAULT PROTECTION Power-On Protection Power Off Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY RECOMMENDATIONS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE OUTPUT CHANNEL PROTECTION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS AMPLIFIER OR DAC OUTPUT PROTECTION OPEN-LOOP PREVENTION POWER-ON CONDITION SWITCHES IN A KNOWN STATE HIGH VOLTAGE SURGE SUPPRESSION OUTLINE DIMENSIONS ORDERING GUIDE
