Data Sheet. ADG5401F. SPECIFICATIONS Table 1. Operating Supply Voltages Parameter. Min. Typ. Max. Unit. ±15 V DUAL SUPPLY
Modelllinie für dieses Datenblatt
Textversion des Dokuments

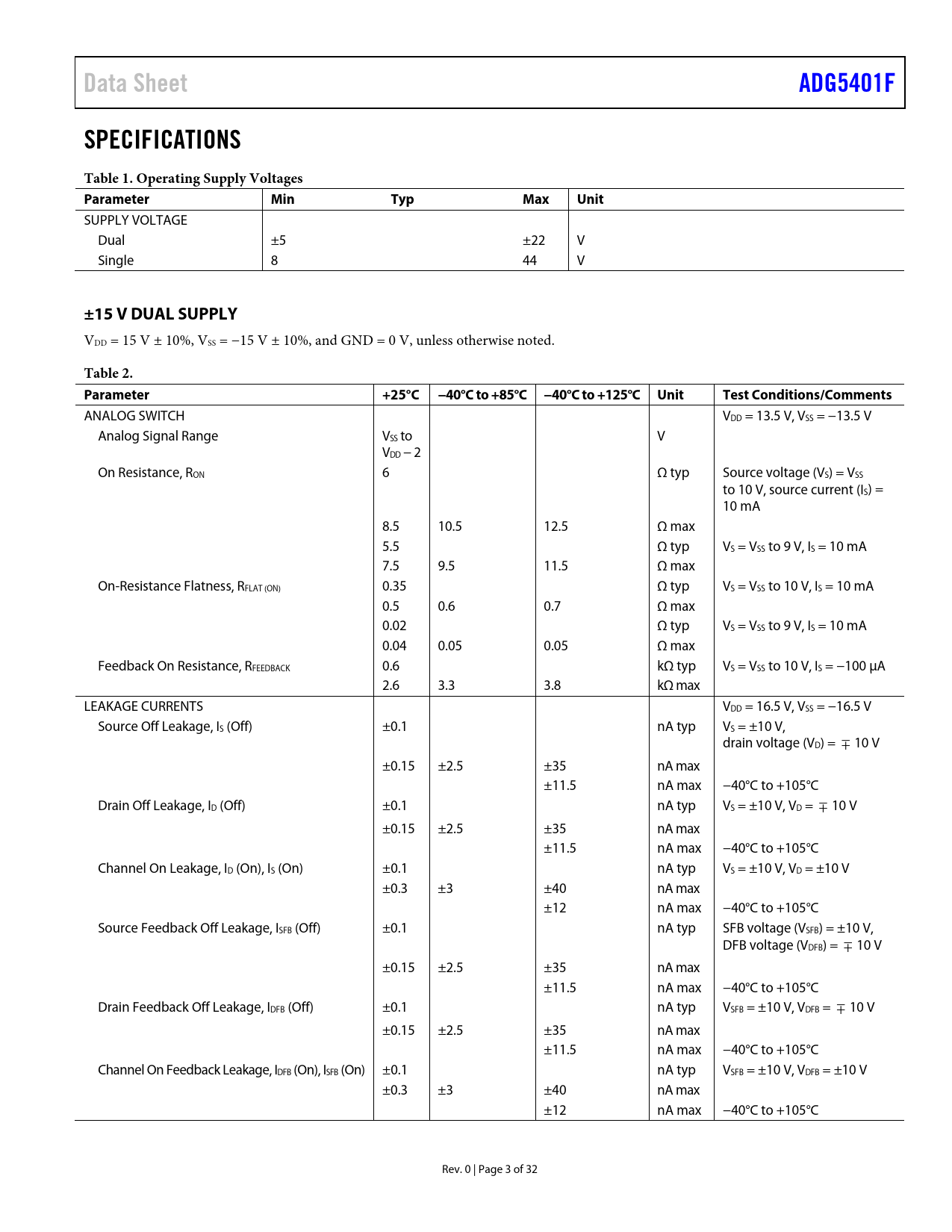

Data Sheet ADG5401F SPECIFICATIONS Table 1. Operating Supply Voltages Parameter Min Typ Max Unit
SUPPLY VOLTAGE Dual ±5 ±22 V Single 8 44 V
±15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, and GND = 0 V, unless otherwise noted.
Table 2. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = 13.5 V, VSS = −13.5 V Analog Signal Range VSS to V VDD − 2 On Resistance, RON 6 Ω typ Source voltage (VS) = VSS to 10 V, source current (IS) = 10 mA 8.5 10.5 12.5 Ω max 5.5 Ω typ VS = VSS to 9 V, IS = 10 mA 7.5 9.5 11.5 Ω max On-Resistance Flatness, RFLAT (ON) 0.35 Ω typ VS = VSS to 10 V, IS = 10 mA 0.5 0.6 0.7 Ω max 0.02 Ω typ VS = VSS to 9 V, IS = 10 mA 0.04 0.05 0.05 Ω max Feedback On Resistance, RFEEDBACK 0.6 kΩ typ VS = VSS to 10 V, IS = −100 µA 2.6 3.3 3.8 kΩ max LEAKAGE CURRENTS VDD = 16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = ±10 V, drain voltage (VD) = 10 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C Drain Off Leakage, ID (Off) ±0.1 nA typ VS = ±10 V, VD = 10 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C Channel On Leakage, ID (On), IS (On) ±0.1 nA typ VS = ±10 V, VD = ±10 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C Source Feedback Off Leakage, ISFB (Off) ±0.1 nA typ SFB voltage (VSFB) = ±10 V, DFB voltage (VDFB) = 10 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C Drain Feedback Off Leakage, IDFB (Off) ±0.1 nA typ VSFB = ±10 V, VDFB = 10 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C Channel On Feedback Leakage, IDFB (On), ISFB (On) ±0.1 nA typ VSFB = ±10 V, VDFB = ±10 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C Rev. 0 | Page 3 of 32 Document Outline FEATURES APPLICATIONS COMPANION PRODUCTS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADG5401F ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation OVERVOLTAGE FAULT PROTECTION Power-On Protection Power Off Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY RECOMMENDATIONS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE OUTPUT CHANNEL PROTECTION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS AMPLIFIER OR DAC OUTPUT PROTECTION OPEN-LOOP PREVENTION POWER-ON CONDITION SWITCHES IN A KNOWN STATE HIGH VOLTAGE SURGE SUPPRESSION OUTLINE DIMENSIONS ORDERING GUIDE
SUPPLY VOLTAGE Dual ±5 ±22 V Single 8 44 V
±15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, and GND = 0 V, unless otherwise noted.
Table 2. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = 13.5 V, VSS = −13.5 V Analog Signal Range VSS to V VDD − 2 On Resistance, RON 6 Ω typ Source voltage (VS) = VSS to 10 V, source current (IS) = 10 mA 8.5 10.5 12.5 Ω max 5.5 Ω typ VS = VSS to 9 V, IS = 10 mA 7.5 9.5 11.5 Ω max On-Resistance Flatness, RFLAT (ON) 0.35 Ω typ VS = VSS to 10 V, IS = 10 mA 0.5 0.6 0.7 Ω max 0.02 Ω typ VS = VSS to 9 V, IS = 10 mA 0.04 0.05 0.05 Ω max Feedback On Resistance, RFEEDBACK 0.6 kΩ typ VS = VSS to 10 V, IS = −100 µA 2.6 3.3 3.8 kΩ max LEAKAGE CURRENTS VDD = 16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = ±10 V, drain voltage (VD) = 10 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C Drain Off Leakage, ID (Off) ±0.1 nA typ VS = ±10 V, VD = 10 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C Channel On Leakage, ID (On), IS (On) ±0.1 nA typ VS = ±10 V, VD = ±10 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C Source Feedback Off Leakage, ISFB (Off) ±0.1 nA typ SFB voltage (VSFB) = ±10 V, DFB voltage (VDFB) = 10 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C Drain Feedback Off Leakage, IDFB (Off) ±0.1 nA typ VSFB = ±10 V, VDFB = 10 V ±0.15 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C Channel On Feedback Leakage, IDFB (On), ISFB (On) ±0.1 nA typ VSFB = ±10 V, VDFB = ±10 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C Rev. 0 | Page 3 of 32 Document Outline FEATURES APPLICATIONS COMPANION PRODUCTS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADG5401F ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation OVERVOLTAGE FAULT PROTECTION Power-On Protection Power Off Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY RECOMMENDATIONS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE OUTPUT CHANNEL PROTECTION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS AMPLIFIER OR DAC OUTPUT PROTECTION OPEN-LOOP PREVENTION POWER-ON CONDITION SWITCHES IN A KNOWN STATE HIGH VOLTAGE SURGE SUPPRESSION OUTLINE DIMENSIONS ORDERING GUIDE
