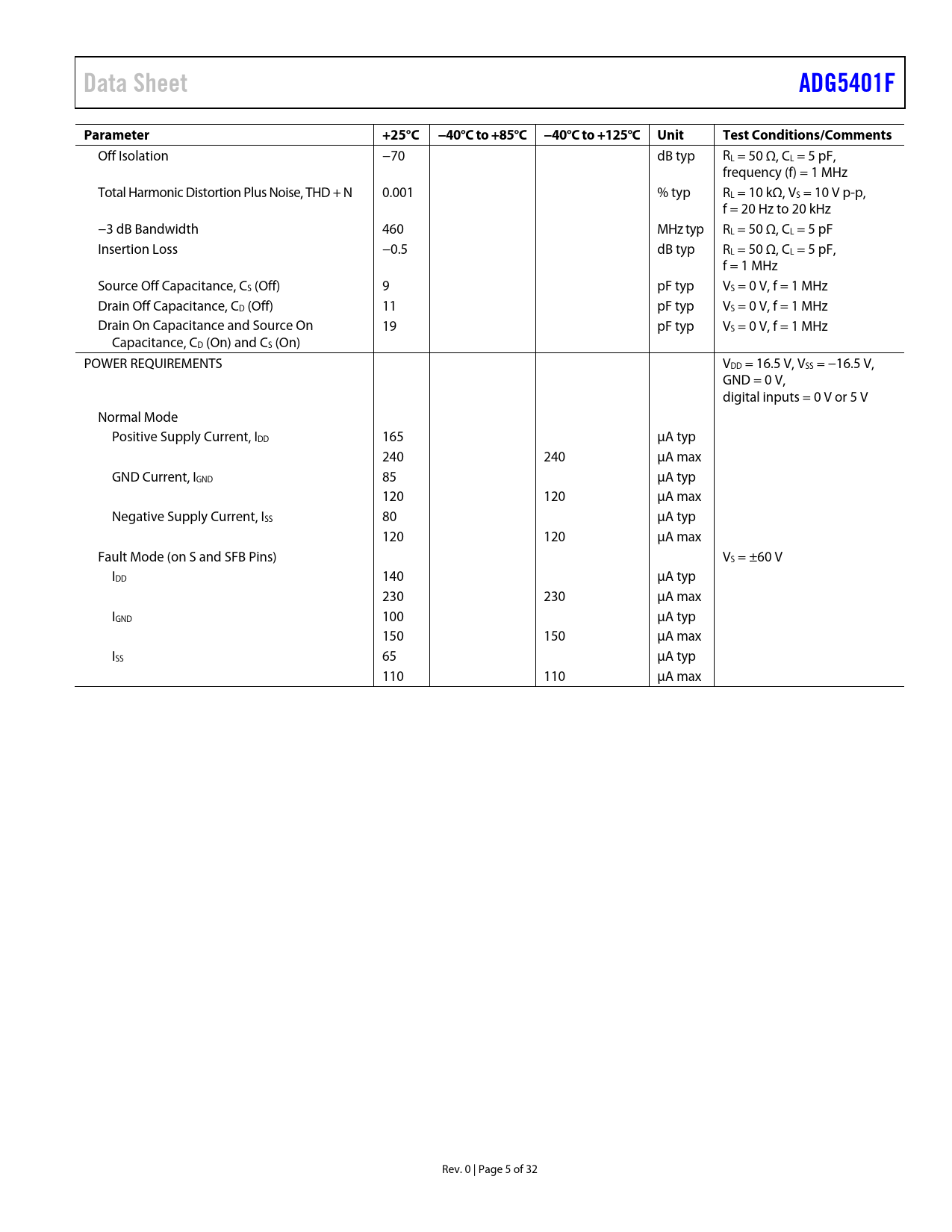

Datasheet ADG5401F (Analog Devices) - 5

Data Sheet ADG5401F Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
Off Isolation −70 dB typ RL = 50 Ω, CL = 5 pF, frequency (f) = 1 MHz Total Harmonic Distortion Plus Noise, THD + N 0.001 % typ RL = 10 kΩ, VS = 10 V p-p, f = 20 Hz to 20 kHz −3 dB Bandwidth 460 MHz typ RL = 50 Ω, CL = 5 pF Insertion Loss −0.5 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz Source Off Capacitance, CS (Off) 9 pF typ VS = 0 V, f = 1 MHz Drain Off Capacitance, CD (Off) 11 pF typ VS = 0 V, f = 1 MHz Drain On Capacitance and Source On 19 pF typ VS = 0 V, f = 1 MHz Capacitance, CD (On) and CS (On) POWER REQUIREMENTS VDD = 16.5 V, VSS = −16.5 V, GND = 0 V, digital inputs = 0 V or 5 V Normal Mode Positive Supply Current, IDD 165 µA typ 240 240 µA max GND Current, IGND 85 µA typ 120 120 µA max Negative Supply Current, ISS 80 µA typ 120 120 µA max Fault Mode (on S and SFB Pins) VS = ±60 V IDD 140 µA typ 230 230 µA max IGND 100 µA typ 150 150 µA max ISS 65 µA typ 110 110 µA max Rev. 0 | Page 5 of 32 Document Outline FEATURES APPLICATIONS COMPANION PRODUCTS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADG5401F ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation OVERVOLTAGE FAULT PROTECTION Power-On Protection Power Off Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY RECOMMENDATIONS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE OUTPUT CHANNEL PROTECTION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS AMPLIFIER OR DAC OUTPUT PROTECTION OPEN-LOOP PREVENTION POWER-ON CONDITION SWITCHES IN A KNOWN STATE HIGH VOLTAGE SURGE SUPPRESSION OUTLINE DIMENSIONS ORDERING GUIDE
