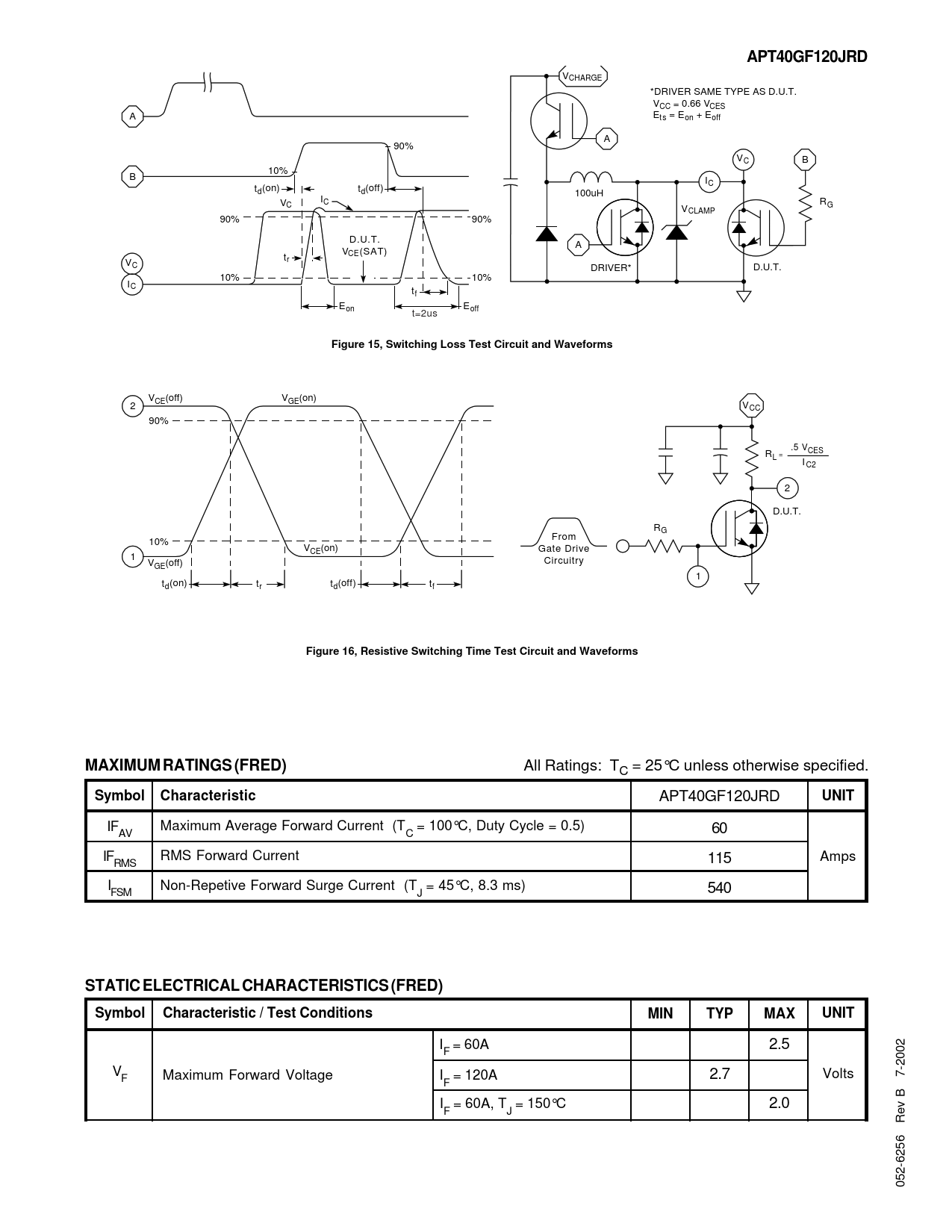

Datasheet APT40GF120J RD (APT) - 5

APT40GF120JRD
VCHARGE *DRIVER SAME TYPE AS D.U.T. VCC = 0.66 VCES A Ets = Eon + Eoff A 90% VC B 10% B IC t t d(on) d(off) 100uH IC V R C V G CLAMP 90% 90% D.U.T. A V t CE (SAT) r VC DRIVER* D.U.T. 10% 10% IC tf E E on off t=2us
Figure 15, Switching Loss Test Circuit and Waveforms
V V CE(off) GE(on) 2 VCC 90% .5 V R CES L = I C2 2 D.U.T. R G From 10% VCE(on) Gate Drive 1 V Circuitry GE(off) 1 t t t d(on) r d(off) tf
Figure 16, Resistive Switching Time Test Circuit and Waveforms MAXIMUM RATINGS (FRED)
All Ratings: TC = 25°C unless otherwise specified.
Symbol Characteristic
APT40GF120JRD
UNIT
IF Maximum Average Forward Current (T = 100°C, Duty Cycle = 0.5) AV C 60 IF RMS Forward Current Amps RMS 115 I Non-Repetive Forward Surge Current (T = 45°C, 8.3 ms) FSM J 540
STATIC ELECTRICAL CHARACTERISTICS (FRED) Symbol Characteristic / Test Conditions MIN TYP MAX UNIT
I = 60A 2.5 F VF Maximum Forward Voltage I = 120A 2.7 Volts F I = 60A, T = 150°C 2.0 F J 052-6256 Rev B 7-2002
