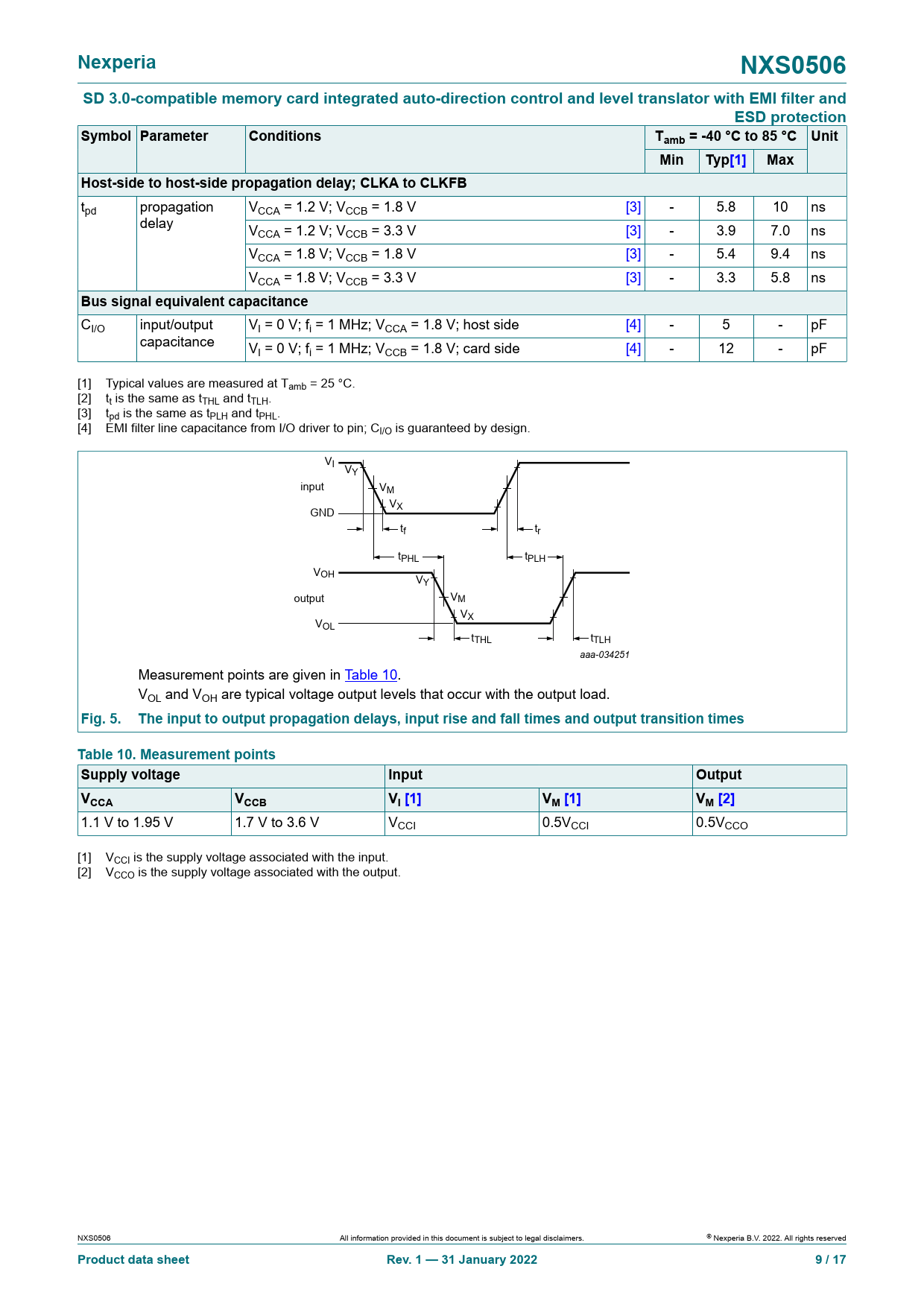

Nexperia NXS0506 SD 3.0-compatible memory card integrated auto-direction control and level translator with EMI filter and ESD protection Symbol Parameter Conditions Tamb = -40 °C to 85 °C Unit Min Typ[1] Max Host-side to host-side propagation delay; CLKA to CLKFB
tpd propagation VCCA = 1.2 V; VCCB = 1.8 V [3] - 5.8 10 ns delay VCCA = 1.2 V; VCCB = 3.3 V [3] - 3.9 7.0 ns VCCA = 1.8 V; VCCB = 1.8 V [3] - 5.4 9.4 ns VCCA = 1.8 V; VCCB = 3.3 V [3] - 3.3 5.8 ns
Bus signal equivalent capacitance
CI/O input/output VI = 0 V; fi = 1 MHz; VCCA = 1.8 V; host side [4] - 5 - pF capacitance VI = 0 V; fi = 1 MHz; VCCB = 1.8 V; card side [4] - 12 - pF [1] Typical values are measured at Tamb = 25 °C. [2] tt is the same as tTHL and tTLH. [3] tpd is the same as tPLH and tPHL. [4] EMI filter line capacitance from I/O driver to pin; CI/O is guaranteed by design. VI VY input VM V GND X tf tr tPHL tPLH VOH VY output VM V V X OL tTHL tTLH aaa-034251 Measurement points are given in Table 10. VOL and VOH are typical voltage output levels that occur with the output load.
Fig. 5. The input to output propagation delays, input rise and fall times and output transition times Table 10. Measurement points Supply voltage Input Output VCCA VCCB VI [1] VM [1] VM [2]
1.1 V to 1.95 V 1.7 V to 3.6 V VCCI 0.5VCCI 0.5VCCO [1] VCCI is the supply voltage associated with the input. [2] VCCO is the supply voltage associated with the output. NXS0506 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 1 — 31 January 2022 9 / 17
