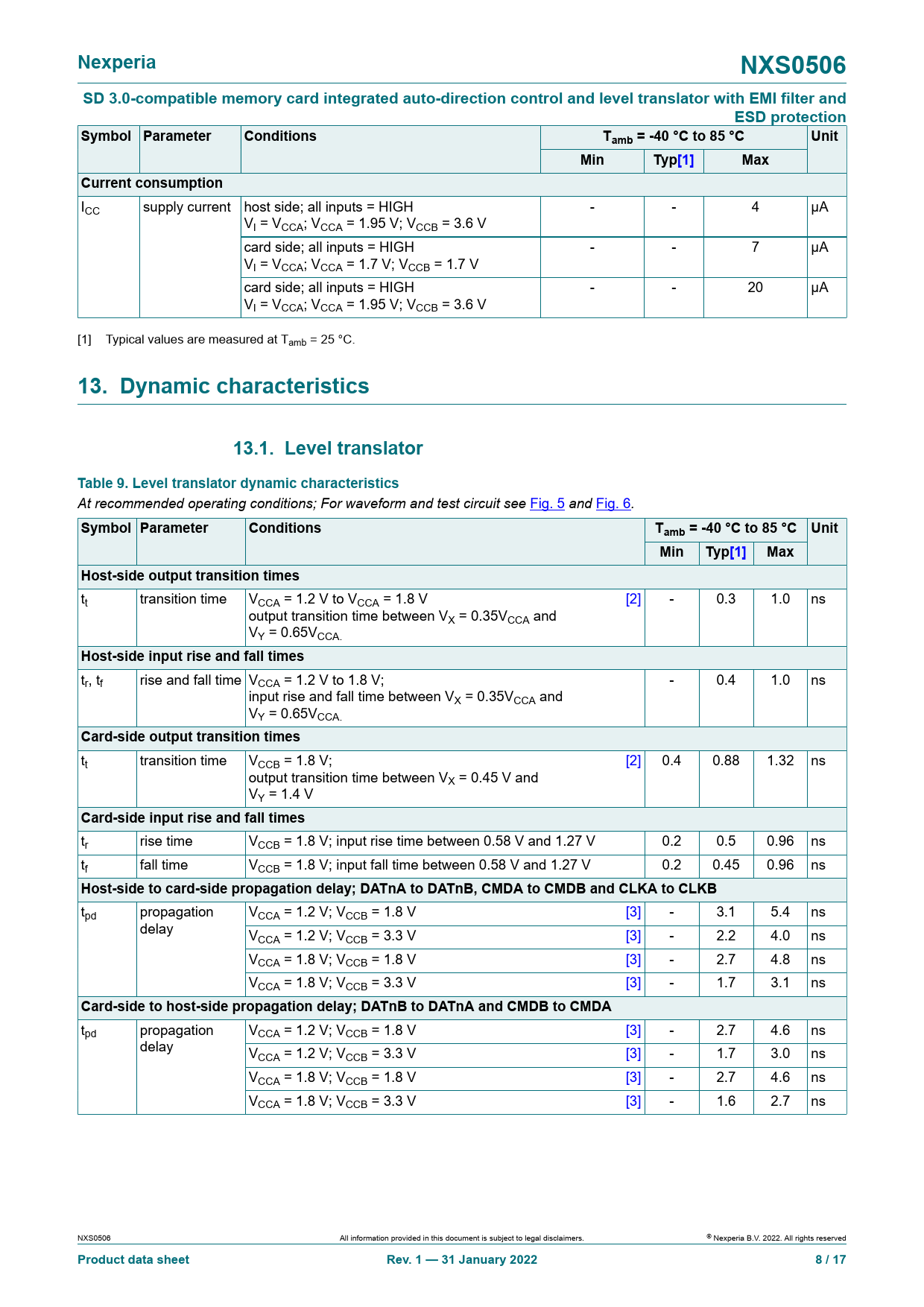

Nexperia NXS0506 SD 3.0-compatible memory card integrated auto-direction control and level translator with EMI filter and ESD protection Symbol Parameter Conditions Tamb = -40 °C to 85 °C Unit Min Typ[1] Max Current consumption
ICC supply current host side; all inputs = HIGH - - 4 µA VI = VCCA; VCCA = 1.95 V; VCCB = 3.6 V card side; all inputs = HIGH - - 7 µA VI = VCCA; VCCA = 1.7 V; VCCB = 1.7 V card side; all inputs = HIGH - - 20 µA VI = VCCA; VCCA = 1.95 V; VCCB = 3.6 V [1] Typical values are measured at Tamb = 25 °C.
13. Dynamic characteristics 13.1. Level translator Table 9. Level translator dynamic characteristics
At recommended operating conditions; For waveform and test circuit see Fig. 5 and Fig. 6.
Symbol Parameter Conditions Tamb = -40 °C to 85 °C Unit Min Typ[1] Max Host-side output transition times
tt transition time VCCA = 1.2 V to VCCA = 1.8 V [2] - 0.3 1.0 ns output transition time between VX = 0.35VCCA and VY = 0.65VCCA.
Host-side input rise and fall times
tr, tf rise and fall time VCCA = 1.2 V to 1.8 V; - 0.4 1.0 ns input rise and fall time between VX = 0.35VCCA and VY = 0.65VCCA.
Card-side output transition times
tt transition time VCCB = 1.8 V; [2] 0.4 0.88 1.32 ns output transition time between VX = 0.45 V and VY = 1.4 V
Card-side input rise and fall times
tr rise time VCCB = 1.8 V; input rise time between 0.58 V and 1.27 V 0.2 0.5 0.96 ns tf fall time VCCB = 1.8 V; input fall time between 0.58 V and 1.27 V 0.2 0.45 0.96 ns
Host-side to card-side propagation delay; DATnA to DATnB, CMDA to CMDB and CLKA to CLKB
tpd propagation VCCA = 1.2 V; VCCB = 1.8 V [3] - 3.1 5.4 ns delay VCCA = 1.2 V; VCCB = 3.3 V [3] - 2.2 4.0 ns VCCA = 1.8 V; VCCB = 1.8 V [3] - 2.7 4.8 ns VCCA = 1.8 V; VCCB = 3.3 V [3] - 1.7 3.1 ns
Card-side to host-side propagation delay; DATnB to DATnA and CMDB to CMDA
tpd propagation VCCA = 1.2 V; VCCB = 1.8 V [3] - 2.7 4.6 ns delay VCCA = 1.2 V; VCCB = 3.3 V [3] - 1.7 3.0 ns VCCA = 1.8 V; VCCB = 1.8 V [3] - 2.7 4.6 ns VCCA = 1.8 V; VCCB = 3.3 V [3] - 1.6 2.7 ns NXS0506 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 1 — 31 January 2022 8 / 17
