Datasheet 2N3019, 2N3020 (Comset Semiconductors) - 4
| Hersteller | Comset Semiconductors |
| Beschreibung | Silicon Planar Epitaxial Transistors |
| Seiten / Seite | 4 / 4 — NPN 2N3019 – 2N3020. MECHANICAL DATA CASE TO-39 DIMENSIONS (mm) |
| Dateiformat / Größe | PDF / 89 Kb |
| Dokumentensprache | Englisch |

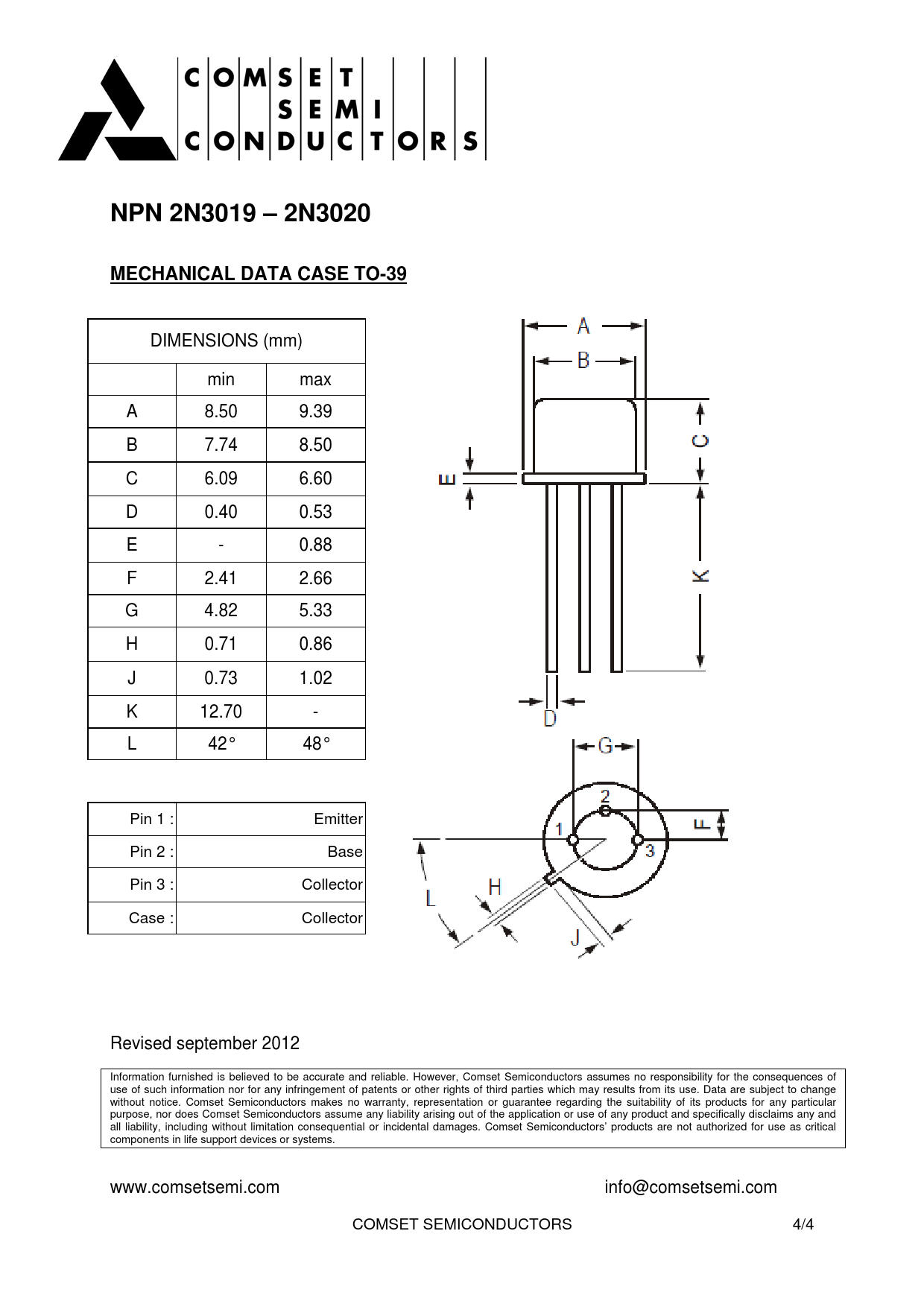

NPN 2N3019 – 2N3020. MECHANICAL DATA CASE TO-39 DIMENSIONS (mm)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
NPN 2N3019 – 2N3020
MECHANICAL DATA CASE TO-39 DIMENSIONS (mm)
min max A 8.50 9.39 B 7.74 8.50 C 6.09 6.60 D 0.40 0.53 E -0.88 F 2.41 2.66 G 4.82 5.33 H 0.71 0.86 J 0.73 1.02 K 12.70 -L 42° 48° Pin 1 : Emitter Pin 2 : Base Pin 3 : Collector Case : Collector Revised september 2012
