MC14093B. LOGIC DIAGRAM. EQUIVALENT CIRCUIT SCHEMATIC. ORDERING INFORMATION. Device. Package. Shipping. http://onsemi.com
Modelllinie für dieses Datenblatt
Textversion des Dokuments

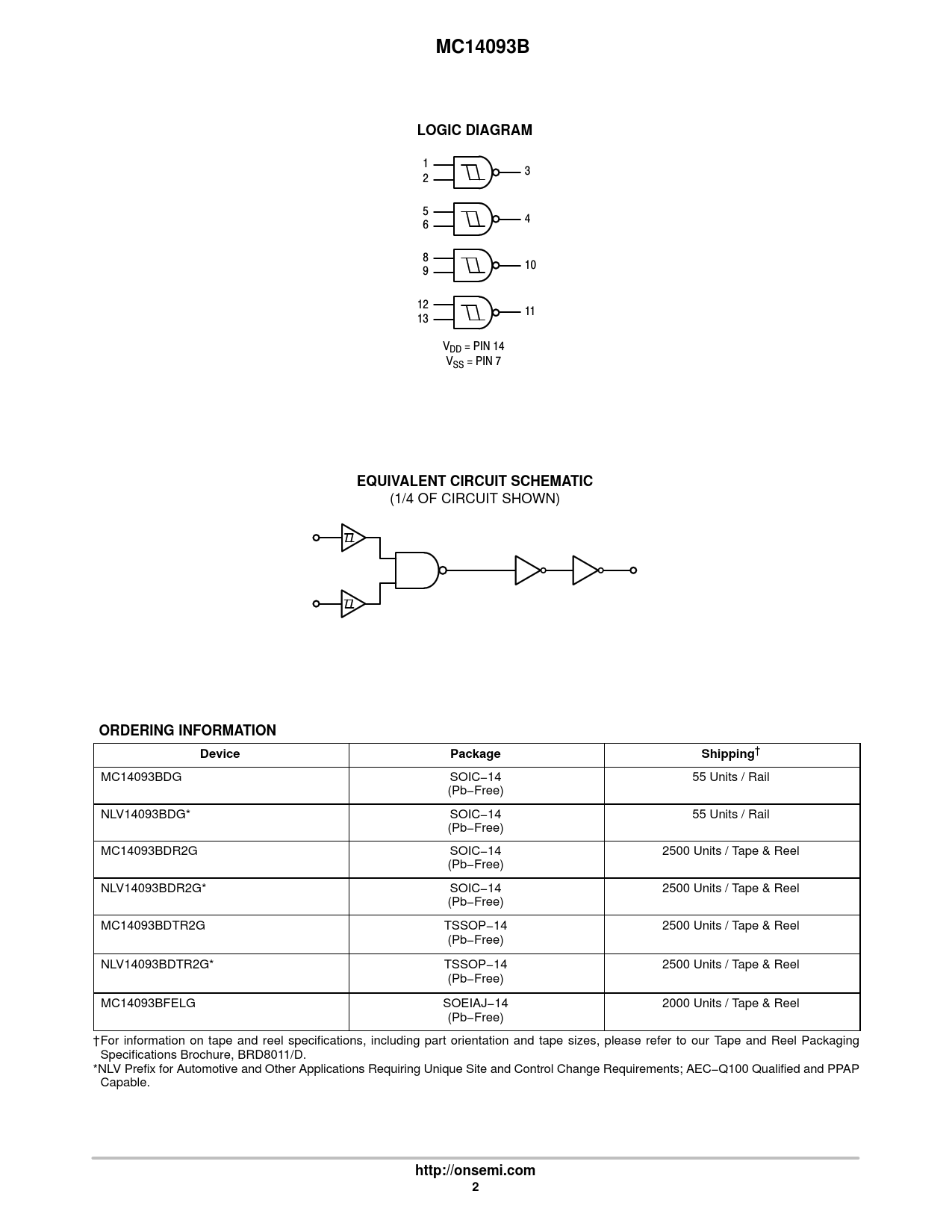

MC14093B LOGIC DIAGRAM
1 3 2 5 4 6 8 10 9 12 11 13 VDD = PIN 14 VSS = PIN 7
EQUIVALENT CIRCUIT SCHEMATIC
(1/4 OF CIRCUIT SHOWN)
ORDERING INFORMATION Device Package Shipping
† MC14093BDG SOIC−14 55 Units / Rail (Pb−Free) NLV14093BDG* SOIC−14 55 Units / Rail (Pb−Free) MC14093BDR2G SOIC−14 2500 Units / Tape & Reel (Pb−Free) NLV14093BDR2G* SOIC−14 2500 Units / Tape & Reel (Pb−Free) MC14093BDTR2G TSSOP−14 2500 Units / Tape & Reel (Pb−Free) NLV14093BDTR2G* TSSOP−14 2500 Units / Tape & Reel (Pb−Free) MC14093BFELG SOEIAJ−14 2000 Units / Tape & Reel (Pb−Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.
http://onsemi.com 2
1 3 2 5 4 6 8 10 9 12 11 13 VDD = PIN 14 VSS = PIN 7
EQUIVALENT CIRCUIT SCHEMATIC
(1/4 OF CIRCUIT SHOWN)
ORDERING INFORMATION Device Package Shipping
† MC14093BDG SOIC−14 55 Units / Rail (Pb−Free) NLV14093BDG* SOIC−14 55 Units / Rail (Pb−Free) MC14093BDR2G SOIC−14 2500 Units / Tape & Reel (Pb−Free) NLV14093BDR2G* SOIC−14 2500 Units / Tape & Reel (Pb−Free) MC14093BDTR2G TSSOP−14 2500 Units / Tape & Reel (Pb−Free) NLV14093BDTR2G* TSSOP−14 2500 Units / Tape & Reel (Pb−Free) MC14093BFELG SOEIAJ−14 2000 Units / Tape & Reel (Pb−Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.
http://onsemi.com 2
