NXH006P120MNF2PTG. TYPICAL CHARACTERISTICS. Figure 14. Typical Switching Loss Tdon vs. Rg
Modelllinie für dieses Datenblatt
NXH006P120MNF2
Textversion des Dokuments
NXH006P120MNF2PTG TYPICAL CHARACTERISTICS
(25°C unless otherwise noted)

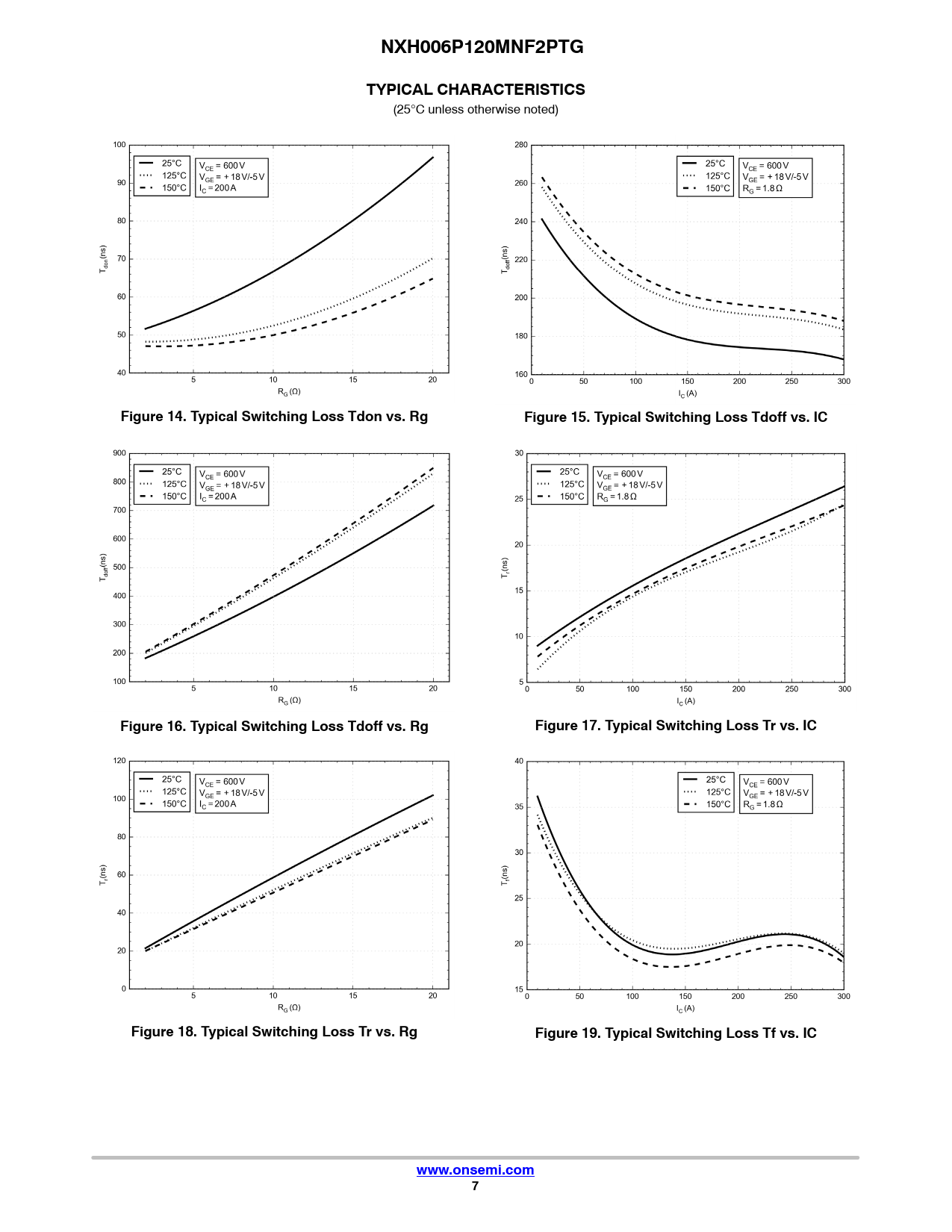

Figure 14. Typical Switching Loss Tdon vs. Rg Figure 15. Typical Switching Loss Tdoff vs. IC Figure 16. Typical Switching Loss Tdoff vs. Rg Figure 17. Typical Switching Loss Tr vs. IC Figure 18. Typical Switching Loss Tr vs. Rg Figure 19. Typical Switching Loss Tf vs. IC www.onsemi.com 7
(25°C unless otherwise noted)
Figure 14. Typical Switching Loss Tdon vs. Rg Figure 15. Typical Switching Loss Tdoff vs. IC Figure 16. Typical Switching Loss Tdoff vs. Rg Figure 17. Typical Switching Loss Tr vs. IC Figure 18. Typical Switching Loss Tr vs. Rg Figure 19. Typical Switching Loss Tf vs. IC www.onsemi.com 7
