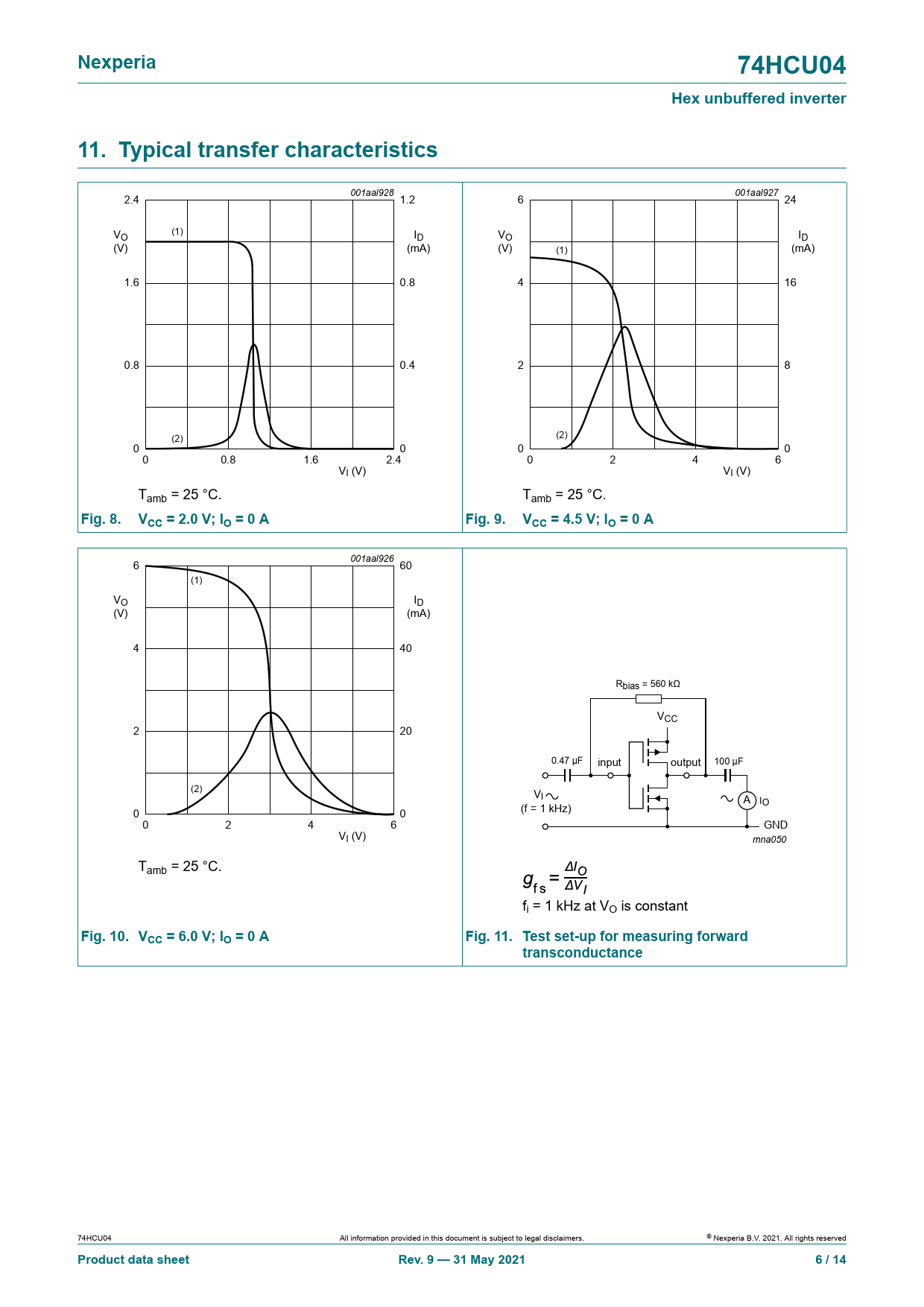

Nexperia 74HCU04 Hex unbuffered inverter 11. Typical transfer characteristics
001aal928 2.4 1.2 001aal927 6 24 (1) VO ID VO ID (V) (mA) (V) (1) (mA) 1.6 0.8 4 16 0.8 0.4 2 8 (2) (2) 0 0 0 0 0 0.8 1.6 2.4 0 2 4 6 VI (V) VI (V) Tamb = 25 °C. Tamb = 25 °C.
Fig. 8. VCC = 2.0 V; IO = 0 A Fig. 9. VCC = 4.5 V; IO = 0 A
001aal926 6 60 (1) VO ID (V) (mA) 4 40 Rbias = 560 kΩ VCC 2 20 0.47 µF input output 100 µF (2) VI A IO 0 0 (f = 1 kHz) 0 2 4 6 GND VI (V) mna050 Tamb = 25 °C. fi = 1 kHz at VO is constant
Fig. 10. VCC = 6.0 V; IO = 0 A Fig. 11. Test set-up for measuring forward transconductance
