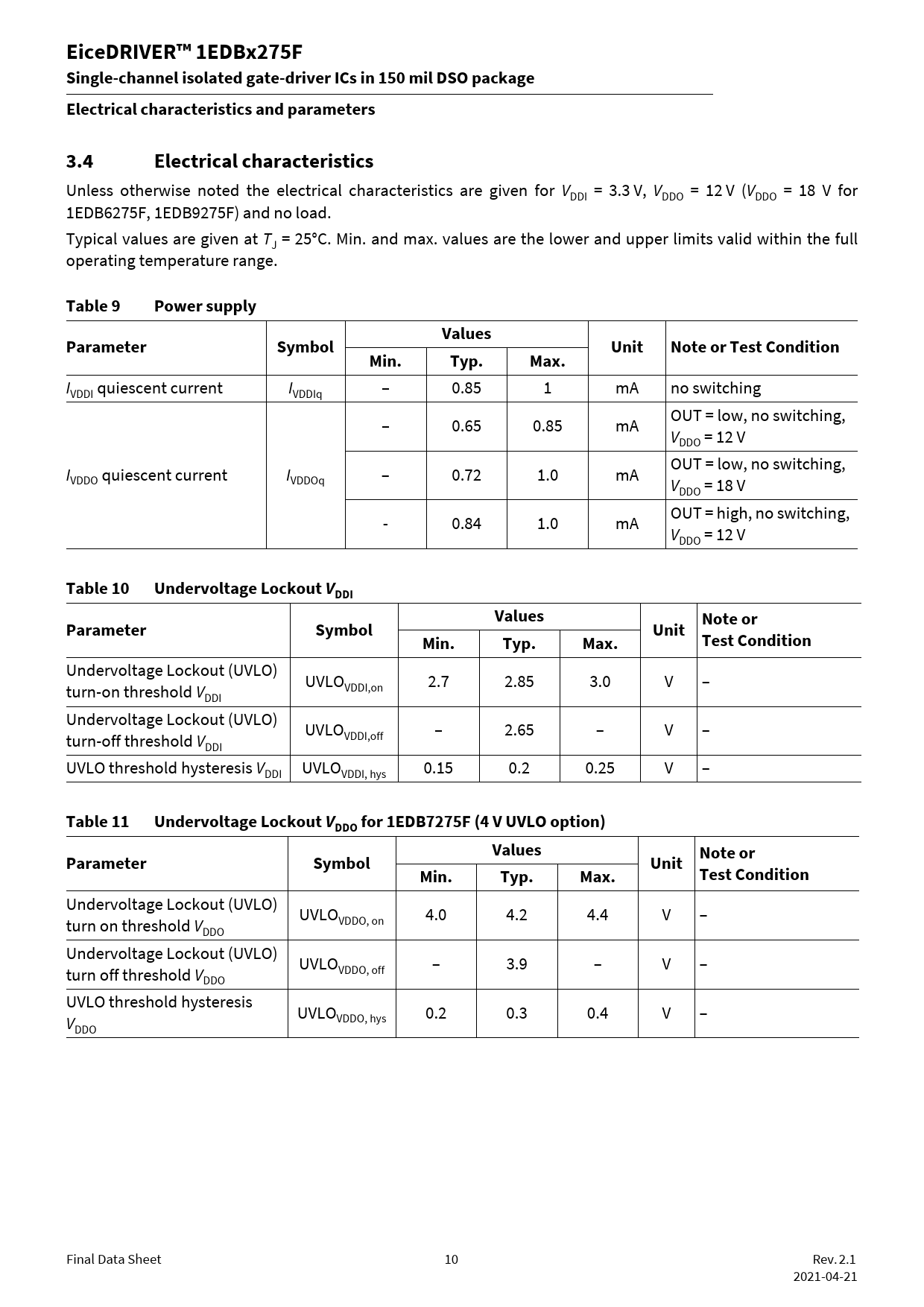

EiceDRIVER™ 1EDBx275F Single-channel isolated gate-driver ICs in 150 mil DSO package Electrical characteristics and parameters 3.4 Electrical characteristics
Unless otherwise noted the electrical characteristics are given for VDDI = 3.3 V, VDDO = 12 V (VDDO = 18 V for 1EDB6275F, 1EDB9275F) and no load. Typical values are given at TJ = 25°C. Min. and max. values are the lower and upper limits valid within the full operating temperature range.
Table 9 Power supply Values Parameter Symbol Unit Note or Test Condition Min. Typ. Max.
IVDDI quiescent current IVDDIq – 0.85 1 mA no switching OUT = low, no switching, – 0.65 0.85 mA VDDO = 12 V OUT = low, no switching, IVDDO quiescent current IVDDOq – 0.72 1.0 mA VDDO = 18 V OUT = high, no switching, - 0.84 1.0 mA VDDO = 12 V
Table 10 Undervoltage Lockout V DDI Values Note or Parameter Symbol Unit Min. Typ. Max. Test Condition
Undervoltage Lockout (UVLO) UVLO turn-on threshold V VDDI,on 2.7 2.85 3.0 V – DDI Undervoltage Lockout (UVLO) UVLO turn-off threshold V VDDI,off – 2.65 – V – DDI UVLO threshold hysteresis VDDI UVLOVDDI, hys 0.15 0.2 0.25 V –
Table 11 Undervoltage Lockout V DDO for 1EDB7275F (4 V UVLO option) Values Note or Parameter Symbol Unit Min. Typ. Max. Test Condition
Undervoltage Lockout (UVLO) UVLO turn on threshold V VDDO, on 4.0 4.2 4.4 V – DDO Undervoltage Lockout (UVLO) UVLO turn off threshold V VDDO, off – 3.9 – V – DDO UVLO threshold hysteresis UVLO V VDDO, hys 0.2 0.3 0.4 V – DDO Final Data Sheet 10 Rev. 2.1 2021-04-21 Document Outline Description Table of Contents 1 Pin configuration and description 2 Functional description 2.1 Block diagram 2.2 Power supply and Undervoltage Lockout (UVLO) 2.2.1 Input supply voltage 2.2.2 Output supply voltage 2.2.3 Input stage 2.3 Driver output 2.4 Output active clamping 2.5 CT communication and input to output data transmission 3 Electrical characteristics and parameters 3.1 Absolute maximum ratings 3.2 Thermal characteristics 3.3 Operating range 3.4 Electrical characteristics 3.5 Isolation specifications 4 Timing diagrams 5 Layout recommendation 6 Application notes 6.1 Driving 600 V CoolGaNTM 6.2 Driving 650 V CoolSiCTM 7 Typical characteristics 8 Package outline dimensions 8.1 Device numbers and markings 8.2 Package PG-DSO-8 Revision history
