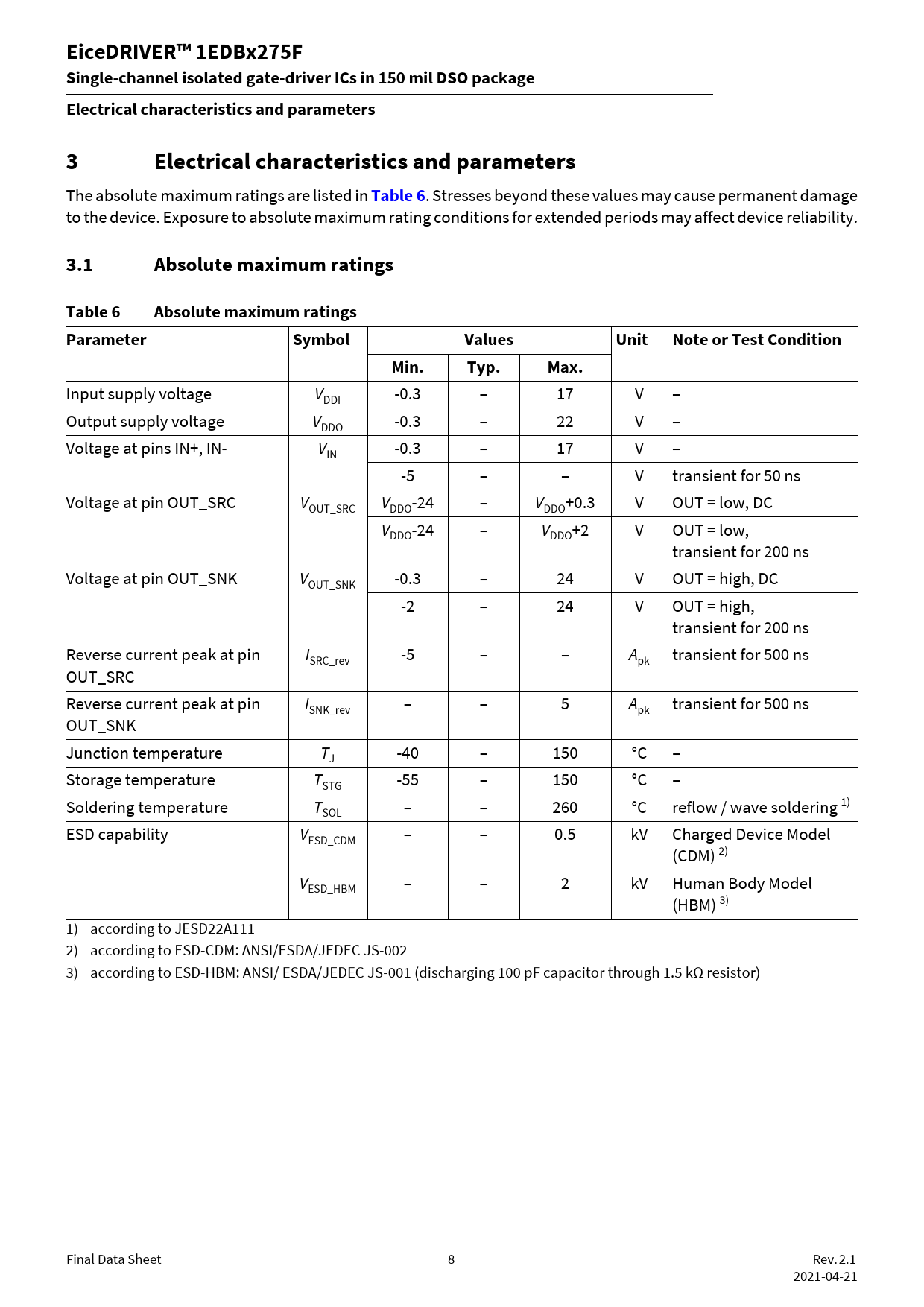

EiceDRIVER™ 1EDBx275F Single-channel isolated gate-driver ICs in 150 mil DSO package Electrical characteristics and parameters 3 Electrical characteristics and parameters
The absolute maximum ratings are listed in
Table 6
. Stresses beyond these values may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
3.1 Absolute maximum ratings Table 6 Absolute maximum ratings Parameter Symbol Values Unit Note or Test Condition Min. Typ. Max.
Input supply voltage VDDI -0.3 – 17 V – Output supply voltage VDDO -0.3 – 22 V – Voltage at pins IN+, IN- VIN -0.3 – 17 V – -5 – – V transient for 50 ns Voltage at pin OUT_SRC VOUT_SRC VDDO-24 – VDDO+0.3 V OUT = low, DC VDDO-24 – VDDO+2 V OUT = low, transient for 200 ns Voltage at pin OUT_SNK VOUT_SNK -0.3 – 24 V OUT = high, DC -2 – 24 V OUT = high, transient for 200 ns Reverse current peak at pin ISRC_rev -5 – – Apk transient for 500 ns OUT_SRC Reverse current peak at pin ISNK_rev – – 5 Apk transient for 500 ns OUT_SNK Junction temperature TJ -40 – 150 °C – Storage temperature TSTG -55 – 150 °C – Soldering temperature TSOL – – 260 °C reflow / wave soldering 1) ESD capability VESD_CDM – – 0.5 kV Charged Device Model (CDM) 2) VESD_HBM – – 2 kV Human Body Model (HBM) 3) 1) according to JESD22A111 2) according to ESD-CDM: ANSI/ESDA/JEDEC JS-002 3) according to ESD-HBM: ANSI/ ESDA/JEDEC JS-001 (discharging 100 pF capacitor through 1.5 kΩ resistor) Final Data Sheet 8 Rev. 2.1 2021-04-21 Document Outline Description Table of Contents 1 Pin configuration and description 2 Functional description 2.1 Block diagram 2.2 Power supply and Undervoltage Lockout (UVLO) 2.2.1 Input supply voltage 2.2.2 Output supply voltage 2.2.3 Input stage 2.3 Driver output 2.4 Output active clamping 2.5 CT communication and input to output data transmission 3 Electrical characteristics and parameters 3.1 Absolute maximum ratings 3.2 Thermal characteristics 3.3 Operating range 3.4 Electrical characteristics 3.5 Isolation specifications 4 Timing diagrams 5 Layout recommendation 6 Application notes 6.1 Driving 600 V CoolGaNTM 6.2 Driving 650 V CoolSiCTM 7 Typical characteristics 8 Package outline dimensions 8.1 Device numbers and markings 8.2 Package PG-DSO-8 Revision history
