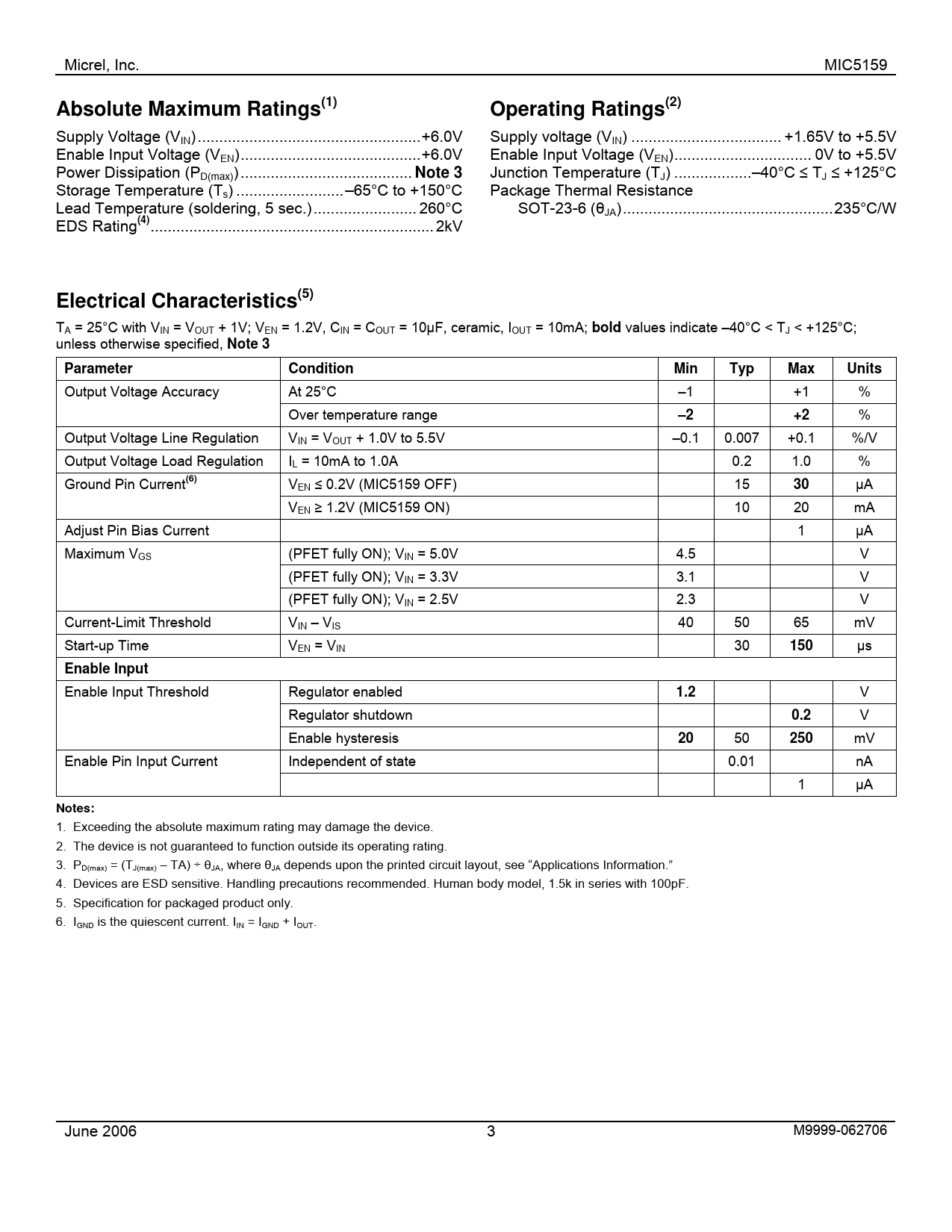

Micrel, Inc. MIC5159
Absolute Maximum Ratings(1) Operating Ratings(2)
Supply Voltage (VIN)..+6.0V Supply voltage (VIN) ... +1.65V to +5.5V Enable Input Voltage (VEN)..+6.0V Enable Input Voltage (VEN).. 0V to +5.5V Power Dissipation (PD(max)) ..
Note 3
Junction Temperature (TJ) ..–40°C ≤ TJ ≤ +125°C Storage Temperature (Ts) ...–65°C to +150°C Package Thermal Resistance Lead Temperature (soldering, 5 sec.).. 260°C SOT-23-6 (θJA)...235°C/W EDS Rating
(4)
.. 2kV
Electrical Characteristics(5)
TA = 25°C with VIN = VOUT + 1V; VEN = 1.2V, CIN = COUT = 10µF, ceramic, IOUT = 10mA;
bold
values indicate –40°C < TJ < +125°C; unless otherwise specified,
Note 3 Parameter Condition Min Typ Max Units
Output Voltage Accuracy At 25°C –1 +1 % Over temperature range
–2 +2
% Output Voltage Line Regulation VIN = VOUT + 1.0V to 5.5V –0.1 0.007 +0.1 %/V Output Voltage Load Regulation IL = 10mA to 1.0A 0.2 1.0 % Ground Pin Current
(6)
VEN ≤ 0.2V (MIC5159 OFF) 15
30
µA VEN ≥ 1.2V (MIC5159 ON) 10 20 mA Adjust Pin Bias Current 1 µA Maximum VGS (PFET ful y ON); VIN = 5.0V 4.5 V (PFET ful y ON); VIN = 3.3V 3.1 V (PFET ful y ON); VIN = 2.5V 2.3 V Current-Limit Threshold VIN – VIS 40 50 65 mV Start-up Time VEN = VIN 30
150
µs
Enable Input
Enable Input Threshold Regulator enabled
1.2
V Regulator shutdown
0.2
V Enable hysteresis
20
50
250
mV Enable Pin Input Current Independent of state 0.01 nA 1 µA
Notes:
1. Exceeding the absolute maximum rating may damage the device. 2. The device is not guaranteed to function outside its operating rating. 3. PD(max) = (TJ(max) – TA) ÷ θJA, where θJA depends upon the printed circuit layout, see “Applications Information.” 4. Devices are ESD sensitive. Handling precautions recommended. Human body model, 1.5k in series with 100pF. 5. Specification for packaged product only. 6. IGND is the quiescent current. IIN = IGND + IOUT. June 2006 3 M9999-062706
