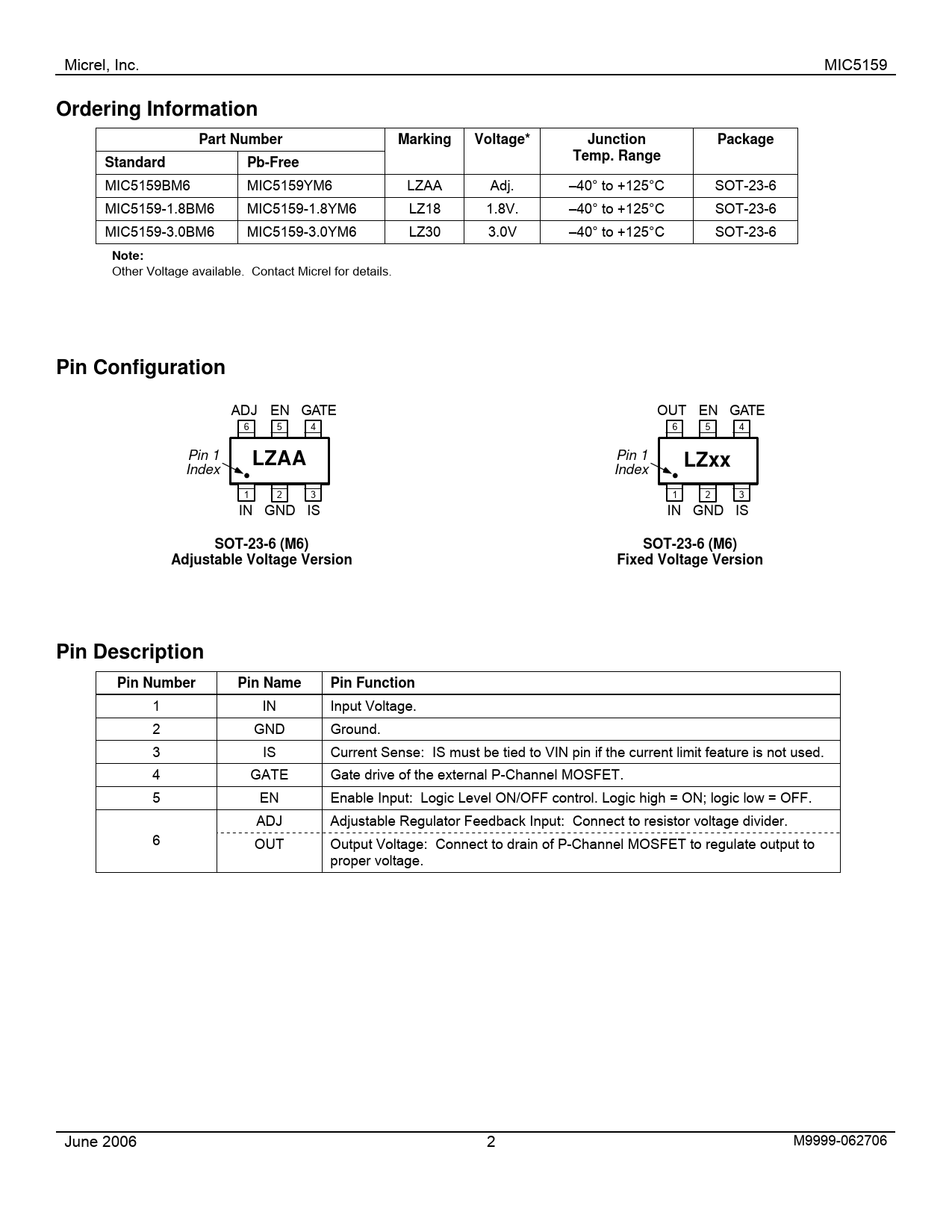

Micrel, Inc. MIC5159
Ordering Information Part Number Marking Voltage* Junction Package Temp. Range Standard Pb-Free
MIC5159BM6 MIC5159YM6 LZAA Adj. –40° to +125°C SOT-23-6 MIC5159-1.8BM6 MIC5159-1.8YM6 LZ18 1.8V. –40° to +125°C SOT-23-6 MIC5159-3.0BM6 MIC5159-3.0YM6 LZ30 3.0V –40° to +125°C SOT-23-6
Note:
Other Voltage available. Contact Micrel for details.
Pin Configuration
ADJ EN GATE OUT EN GATE 6 5 4 6 5 4 Pin 1
LZAA
Pin 1
LZxx
Index Index 1 2 3 1 2 3 IN GND IS IN GND IS
SOT-23-6 (M6) SOT-23-6 (M6) Adjustable Voltage Version Fixed Voltage Version Pin Description Pin Number Pin Name Pin Function
1 IN Input Voltage. 2 GND Ground. 3 IS Current Sense: IS must be tied to VIN pin if the current limit feature is not used. 4 GATE Gate drive of the external P-Channel MOSFET. 5 EN Enable Input: Logic Level ON/OFF control. Logic high = ON; logic low = OFF. ADJ Adjustable Regulator Feedback Input: Connect to resistor voltage divider. 6 OUT Output Voltage: Connect to drain of P-Channel MOSFET to regulate output to proper voltage. June 2006 2 M9999-062706
