LM7310. www.ti.com. 6.8 Typical Characteristics (continued). Figure 6-8. EN/UVLO Shutdown Threshold vs Temperature
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LM7310
SNOSDC0A – OCTOBER 2020 – REVISED DECEMBER 2020

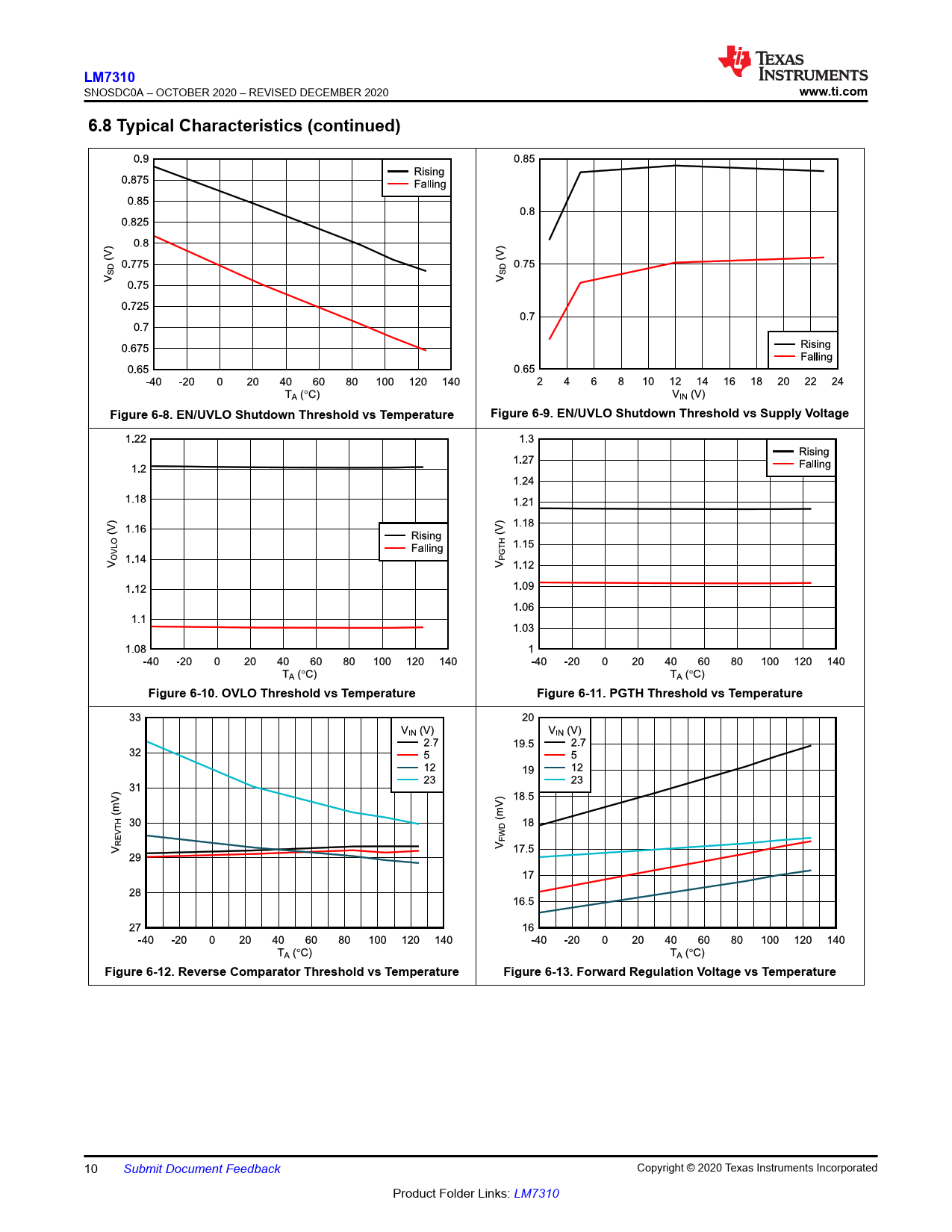

www.ti.com 6.8 Typical Characteristics (continued) Figure 6-8. EN/UVLO Shutdown Threshold vs Temperature Figure 6-9. EN/UVLO Shutdown Threshold vs Supply Voltage Figure 6-10. OVLO Threshold vs Temperature Figure 6-11. PGTH Threshold vs Temperature Figure 6-12. Reverse Comparator Threshold vs Temperature Figure 6-13. Forward Regulation Voltage vs Temperature
