Datasheet STD30NF06LAG (STMicroelectronics) - 7
| Hersteller | STMicroelectronics |
| Beschreibung | Automotive-grade N-channel 60 V, 0.022 Ω typ., 35 A STripFET II Power MOSFET in a DPAK package |
| Seiten / Seite | 15 / 7 — STD30NF06LAG. Electrical characteristics. Figure 8: Capacitance … |
| Dateiformat / Größe | PDF / 734 Kb |
| Dokumentensprache | Englisch |
STD30NF06LAG. Electrical characteristics. Figure 8: Capacitance variations. Figure 9: Normalized gate threshold voltage vs
Modelllinie für dieses Datenblatt
Textversion des Dokuments

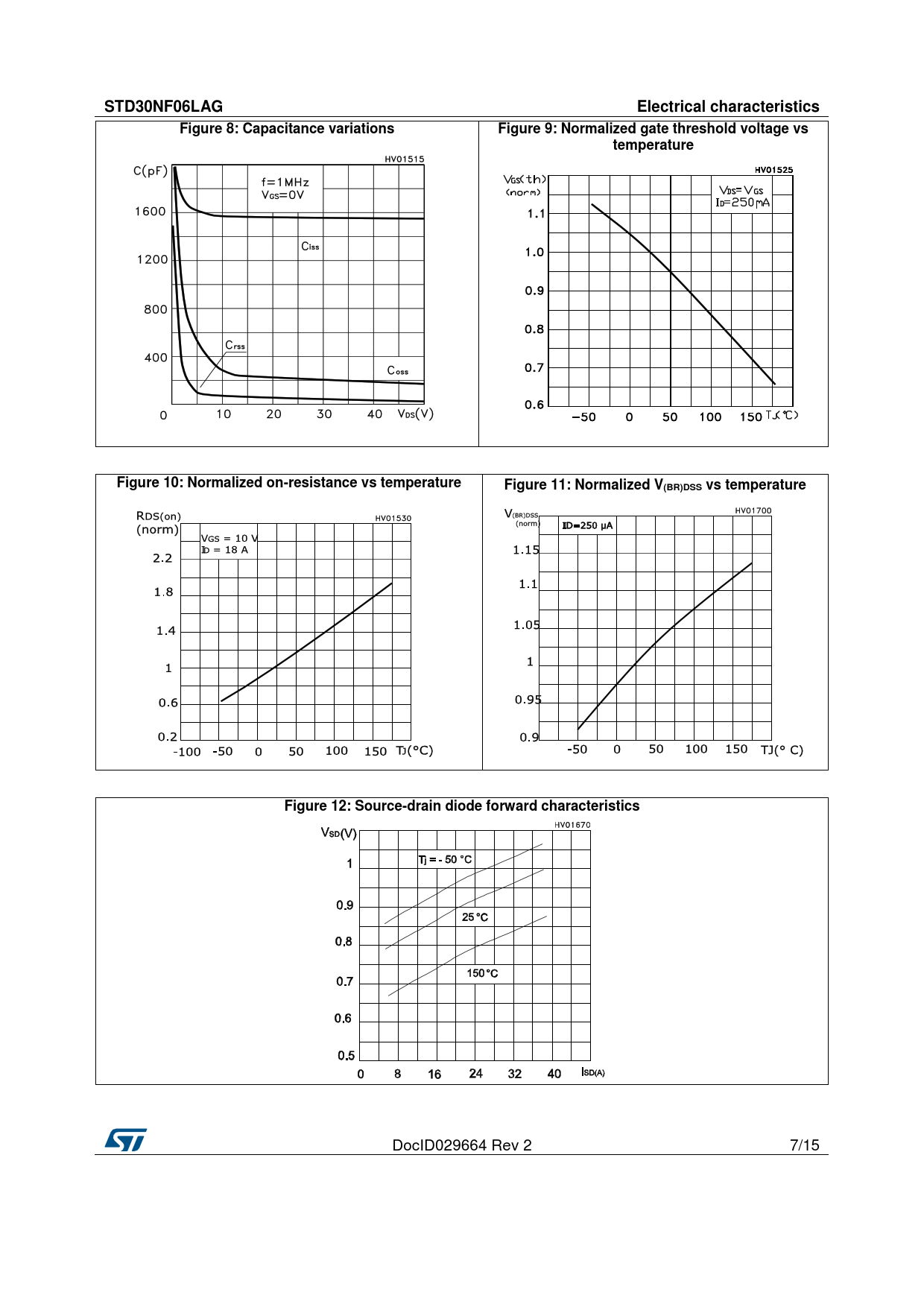

STD30NF06LAG Electrical characteristics Figure 8: Capacitance variations Figure 9: Normalized gate threshold voltage vs temperature Figure 10: Normalized on-resistance vs temperature Figure 11: Normalized V(BR)DSS vs temperature Figure 12: Source-drain diode forward characteristics
