Datasheet STD30NF06LAG (STMicroelectronics) - 10
| Hersteller | STMicroelectronics |
| Beschreibung | Automotive-grade N-channel 60 V, 0.022 Ω typ., 35 A STripFET II Power MOSFET in a DPAK package |
| Seiten / Seite | 15 / 10 — Package information. STD30NF06LAG. Table 9: DPAK (TO-252) type A … |
| Dateiformat / Größe | PDF / 734 Kb |
| Dokumentensprache | Englisch |

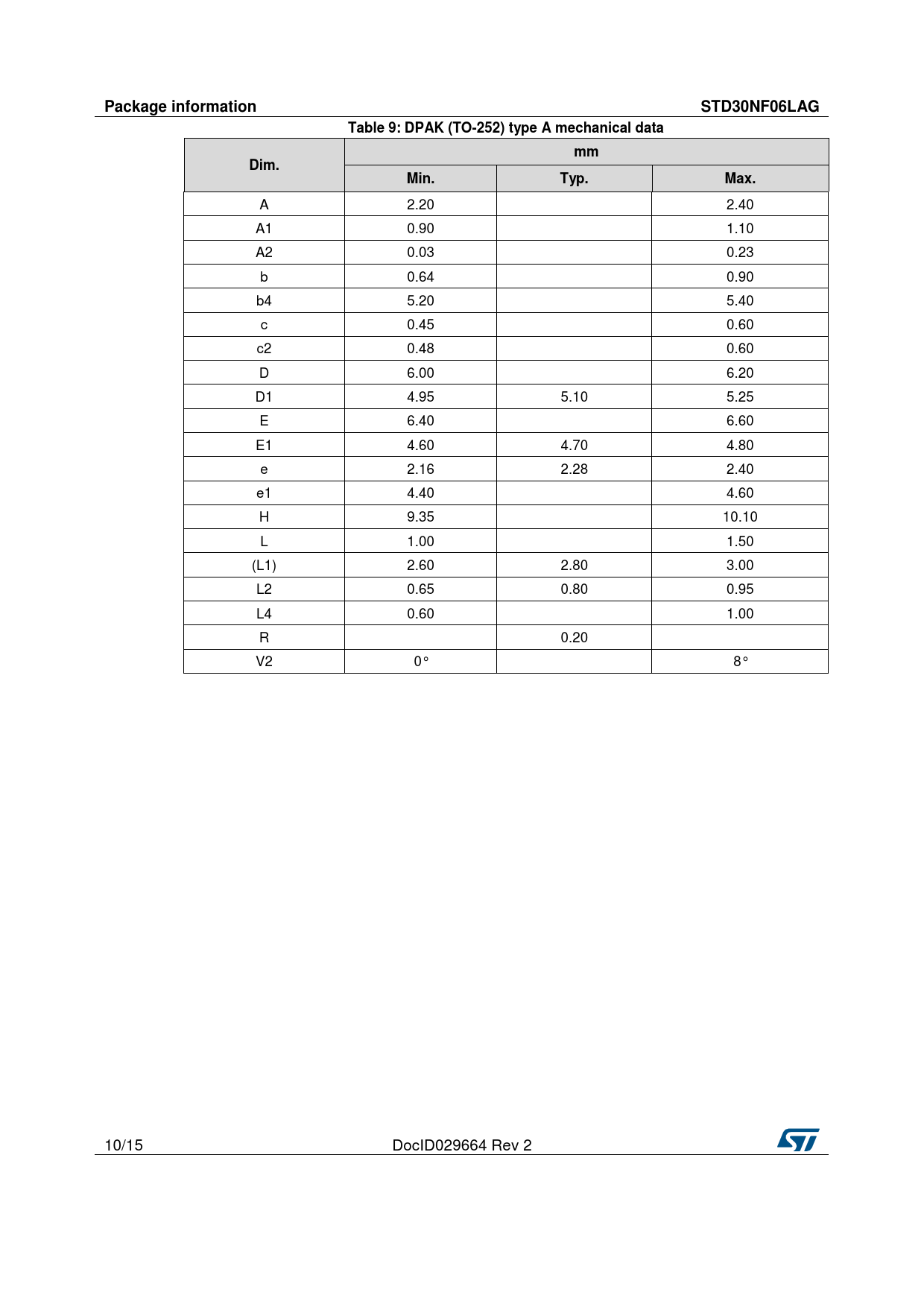

Package information. STD30NF06LAG. Table 9: DPAK (TO-252) type A mechanical data. Dim. Min. Typ. Max
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Package information STD30NF06LAG Table 9: DPAK (TO-252) type A mechanical data mm Dim. Min. Typ. Max.
A 2.20 2.40 A1 0.90 1.10 A2 0.03 0.23 b 0.64 0.90 b4 5.20 5.40 c 0.45 0.60 c2 0.48 0.60 D 6.00 6.20 D1 4.95 5.10 5.25 E 6.40 6.60 E1 4.60 4.70 4.80 e 2.16 2.28 2.40 e1 4.40 4.60 H 9.35 10.10 L 1.00 1.50 (L1) 2.60 2.80 3.00 L2 0.65 0.80 0.95 L4 0.60 1.00 R 0.20 V2 0° 8° 10/15 DocID029664 Rev 2
