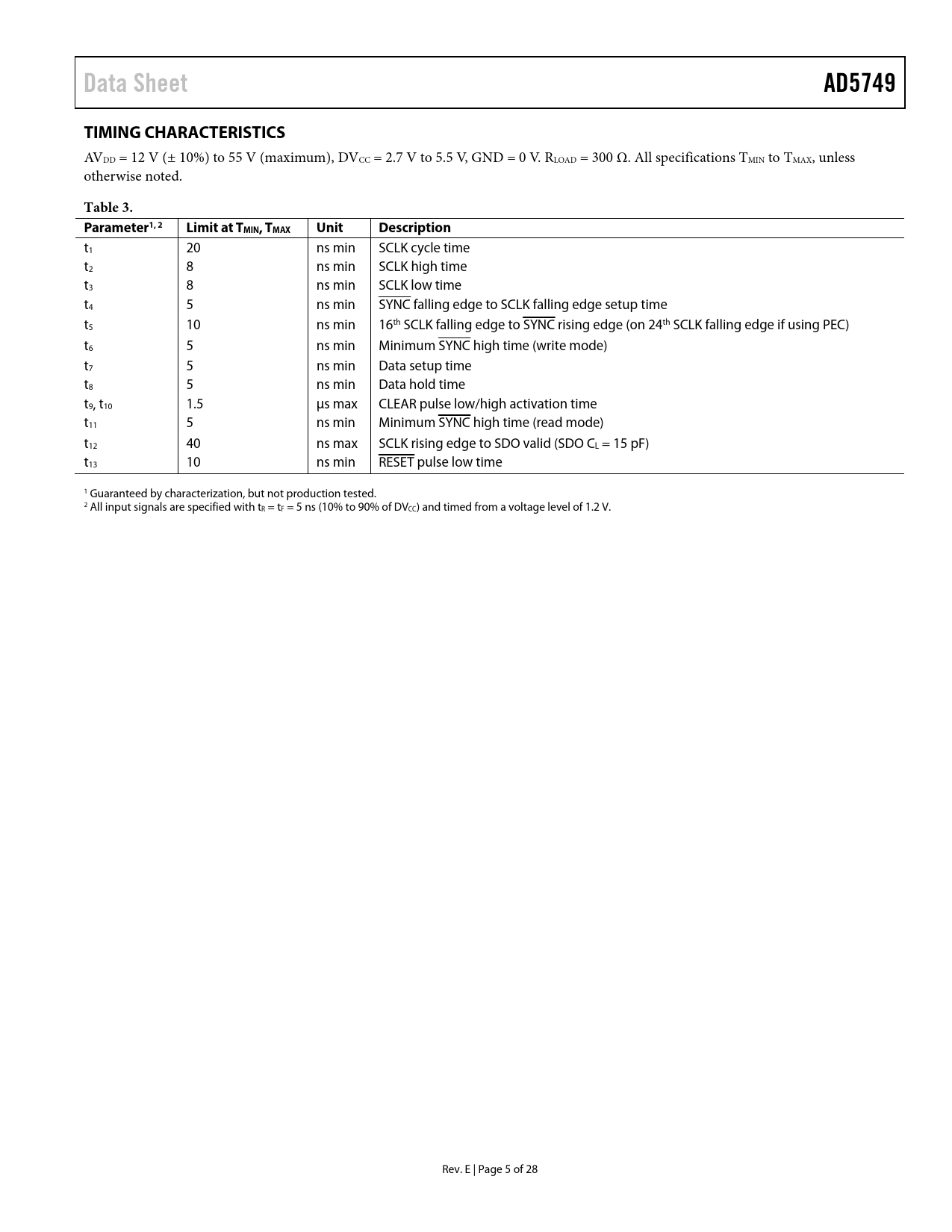

Data Sheet AD5749 TIMING CHARACTERISTICS
AVDD = 12 V (± 10%) to 55 V (maximum), DVCC = 2.7 V to 5.5 V, GND = 0 V. RLOAD = 300 Ω. All specifications TMIN to TMAX, unless otherwise noted.
Table 3. Parameter1, 2 Limit at TMIN, TMAX Unit Description
t1 20 ns min SCLK cycle time t2 8 ns min SCLK high time t3 8 ns min SCLK low time t4 5 ns min SYNC falling edge to SCLK falling edge setup time t5 10 ns min 16th SCLK falling edge to SYNC rising edge (on 24th SCLK falling edge if using PEC) t6 5 ns min Minimum SYNC high time (write mode) t7 5 ns min Data setup time t8 5 ns min Data hold time t9, t10 1.5 μs max CLEAR pulse low/high activation time t11 5 ns min Minimum SYNC high time (read mode) t12 40 ns max SCLK rising edge to SDO valid (SDO CL = 15 pF) t13 10 ns min RESET pulse low time 1 Guaranteed by characterization, but not production tested. 2 All input signals are specified with tR = tF = 5 ns (10% to 90% of DVCC) and timed from a voltage level of 1.2 V. Rev. E | Page 5 of 28 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY TIMING CHARACTERISTICS Timing Diagrams ESD CAUTION SOFTWARE MODE CURRENT OUTPUT ARCHITECTURE DRIVING INDUCTIVE LOADS POWER-ON STATE OF THE AD5749 DEFAULT REGISTERS AT POWER-ON RESET FUNCTION OUTEN SOFTWARE CONTROL Input Shift Register Status Bit Read Operation HARDWARE CONTROL TRANSFER FUNCTION OUTPUT FAULT ALERT—SOFTWARE MODE OUTPUT FAULT ALERT—HARDWARE MODE ASYNCHRONOUS CLEAR (CLEAR) EXTERNAL CURRENT SETTING RESISTOR PROGRAMMABLE OVERRANGE MODES PACKET ERROR CHECKING TRANSIENT VOLTAGE PROTECTION THERMAL CONSIDERATIONS LAYOUT GUIDELINES GALVANICALLY ISOLATED INTERFACE MICROPROCESSOR INTERFACING ORDERING GUIDE
